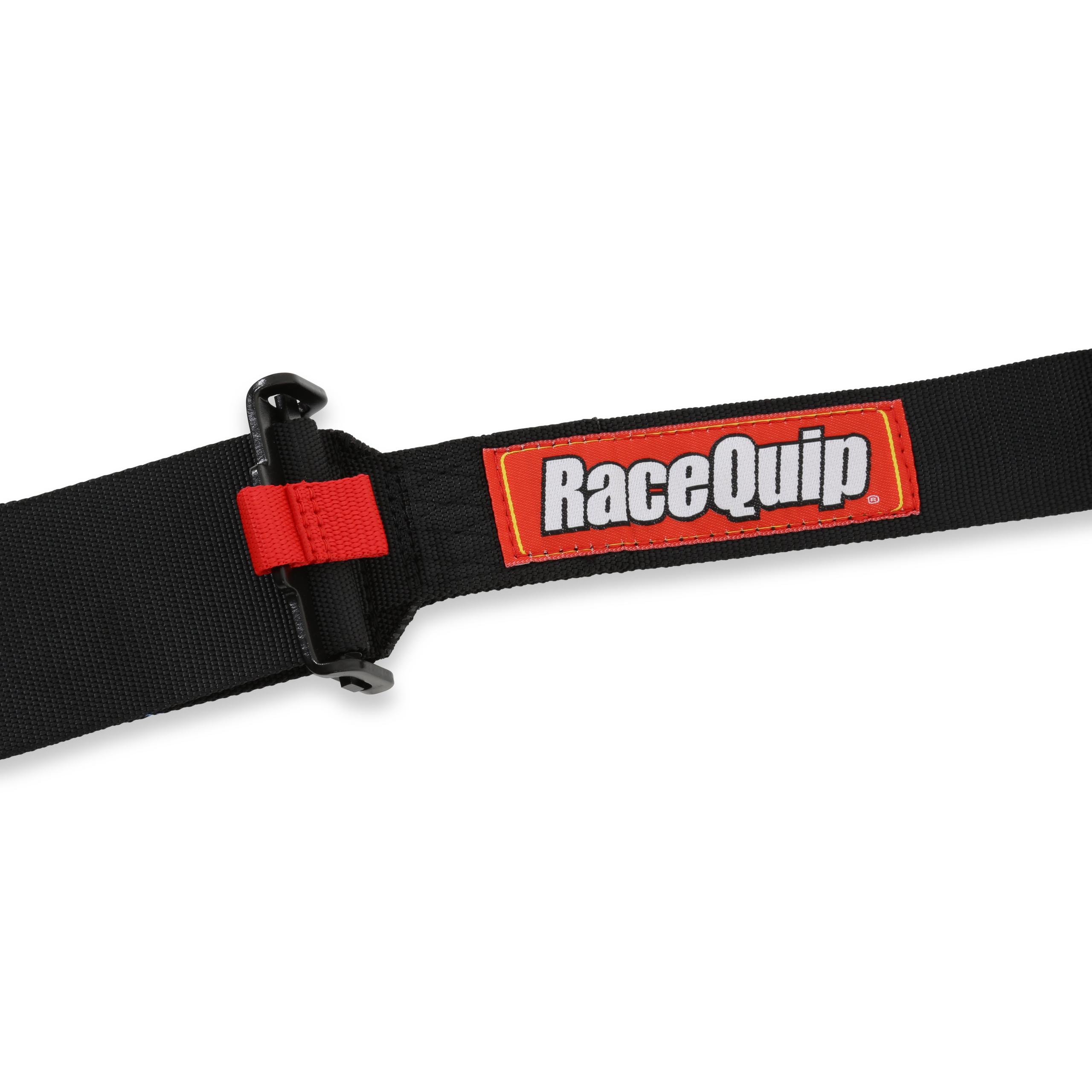

RaceQuip Latch & Link HANS 5 Point Harness Set - 717007RQP

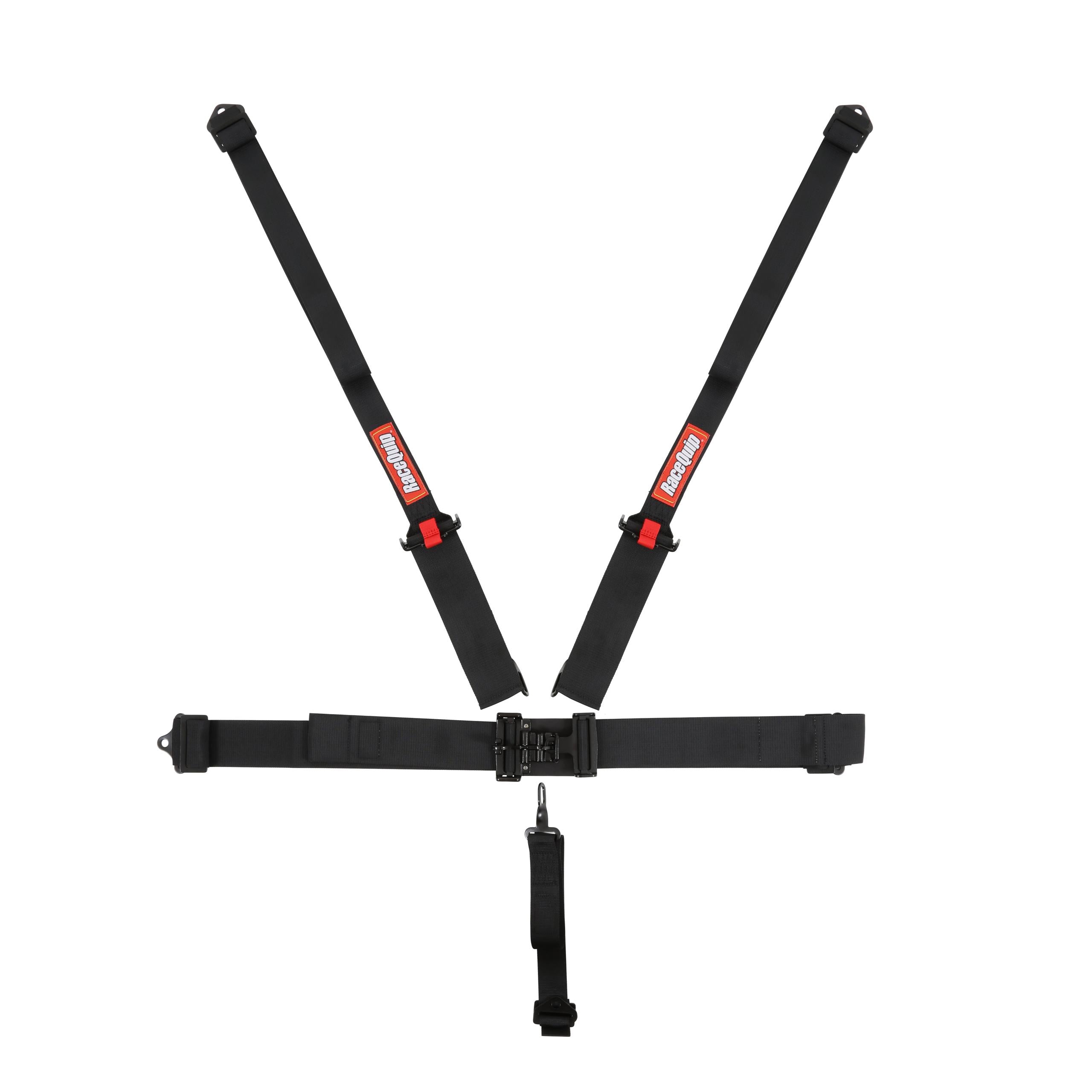

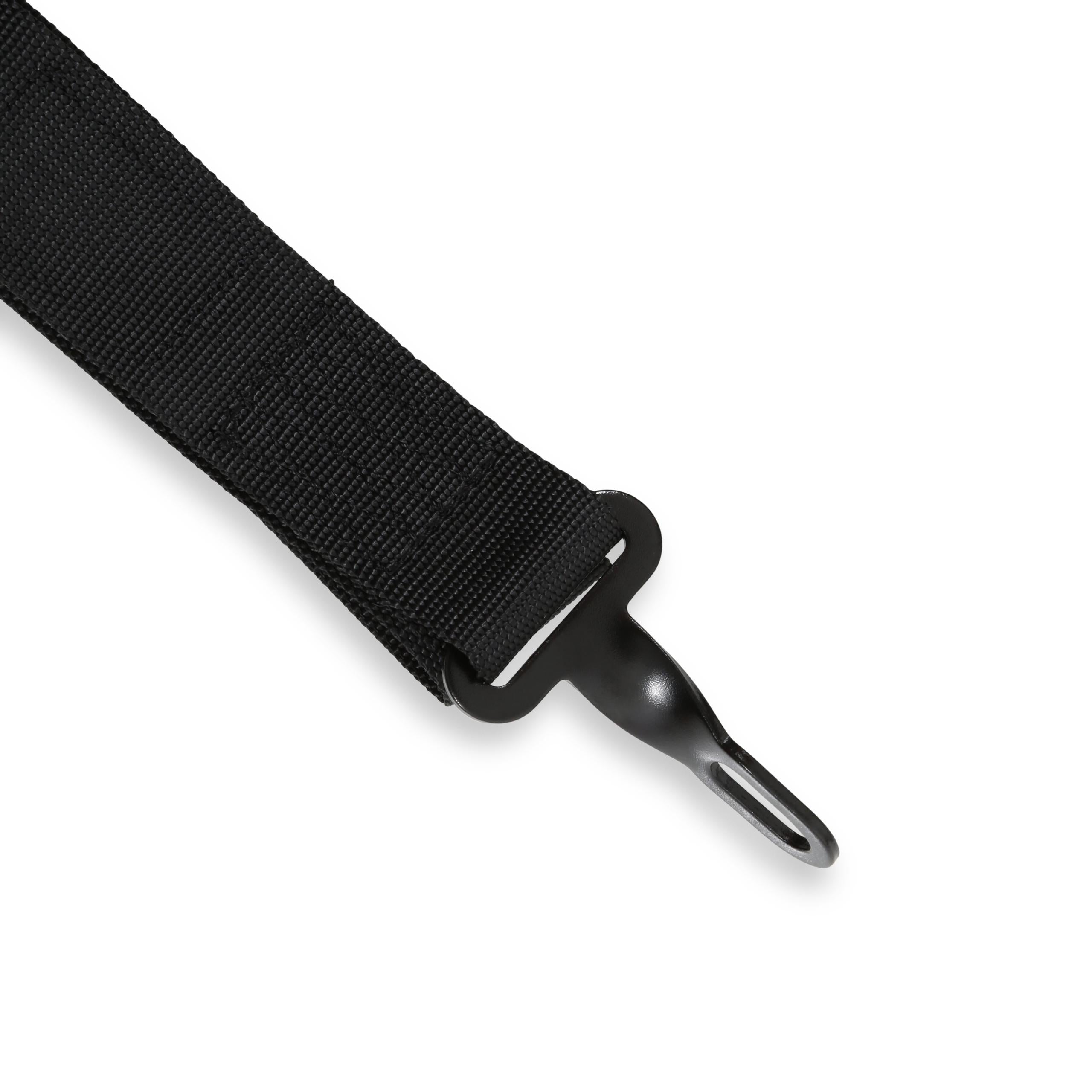

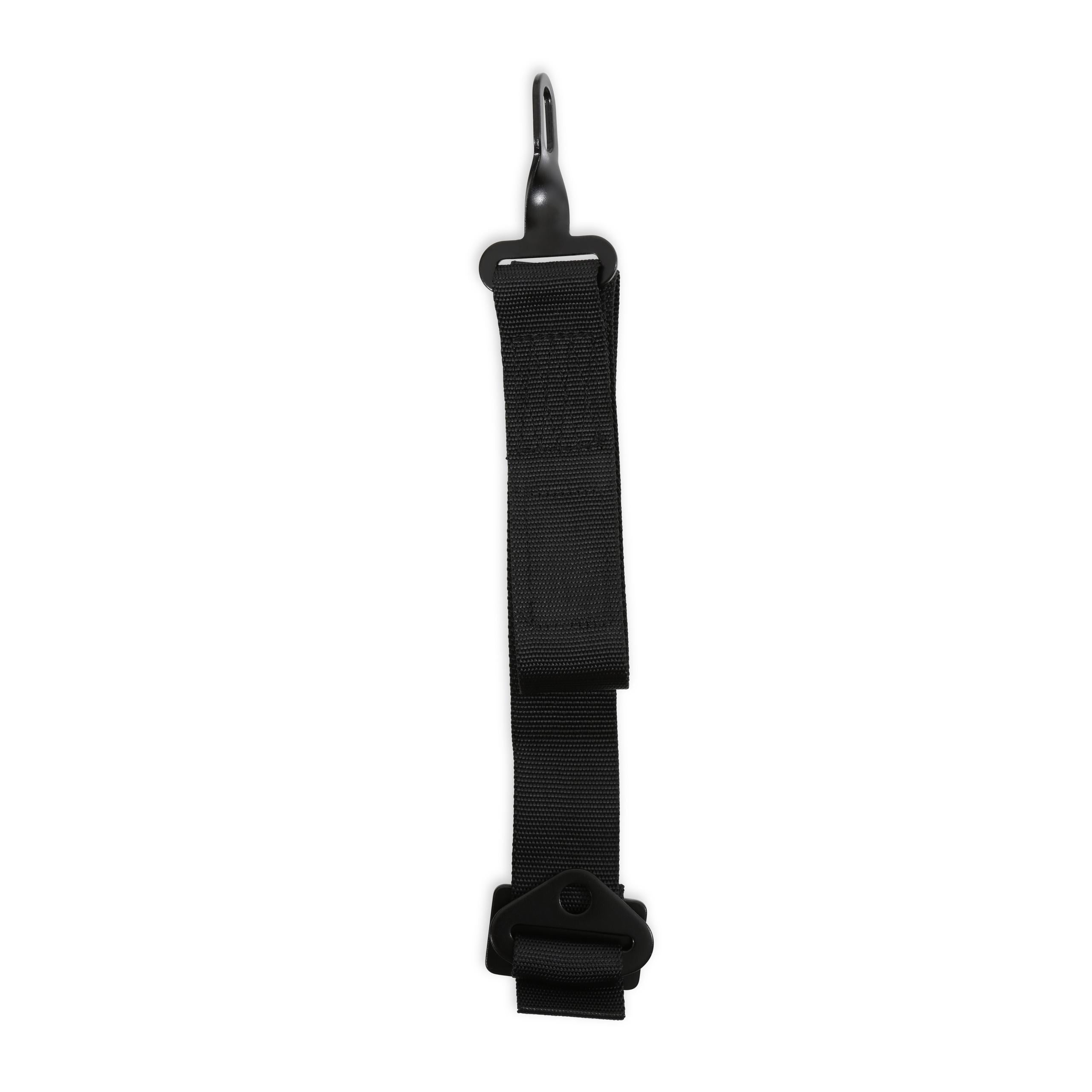

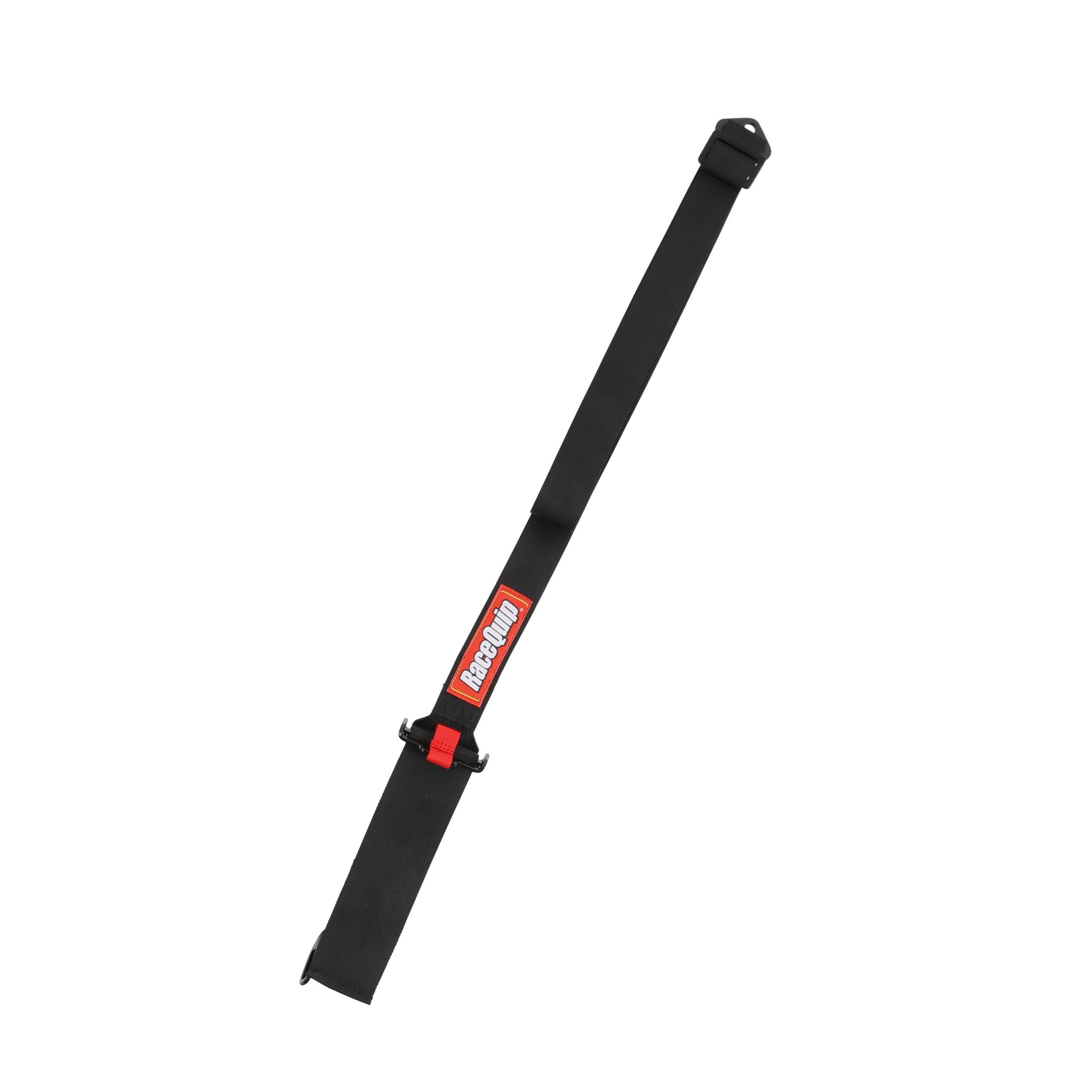

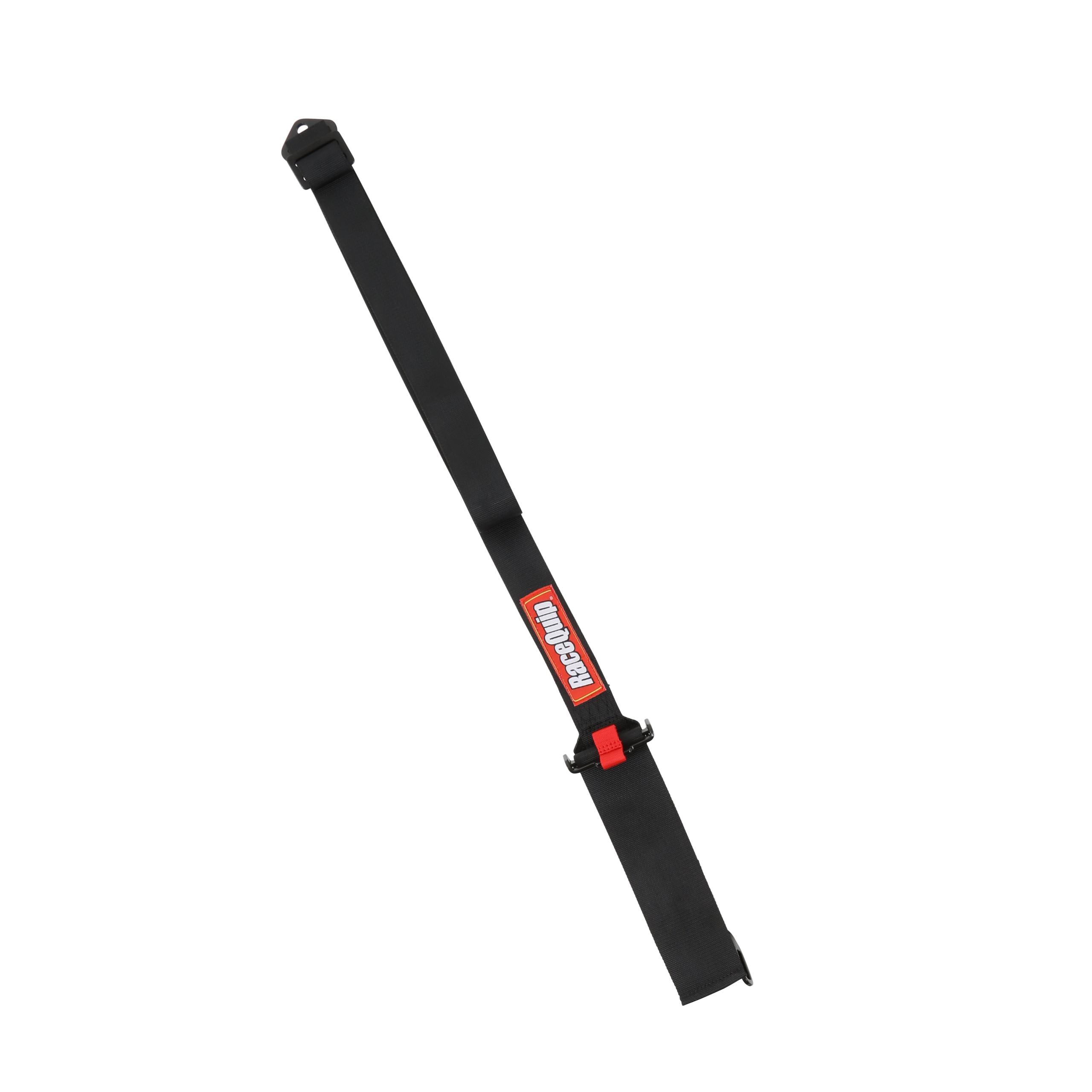

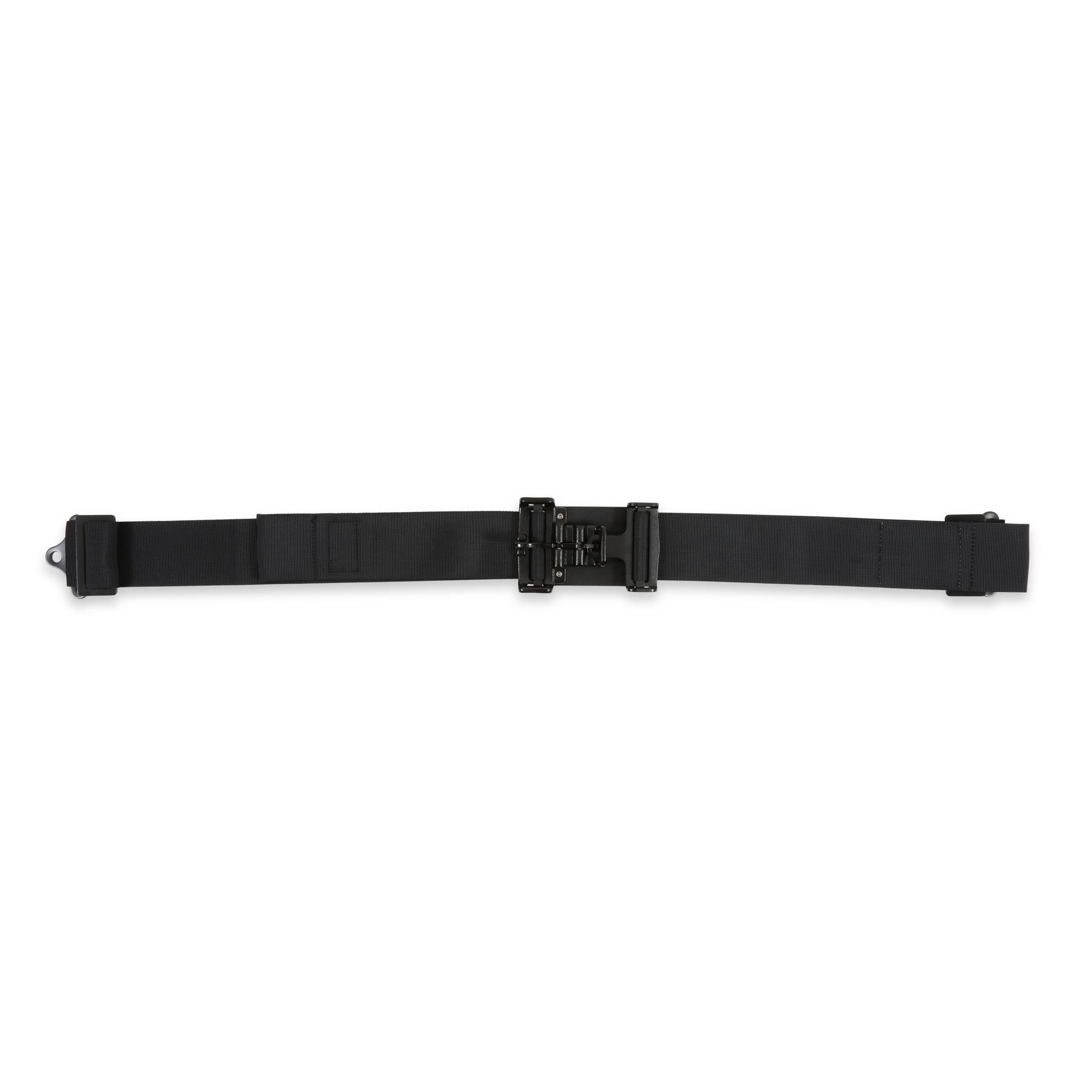

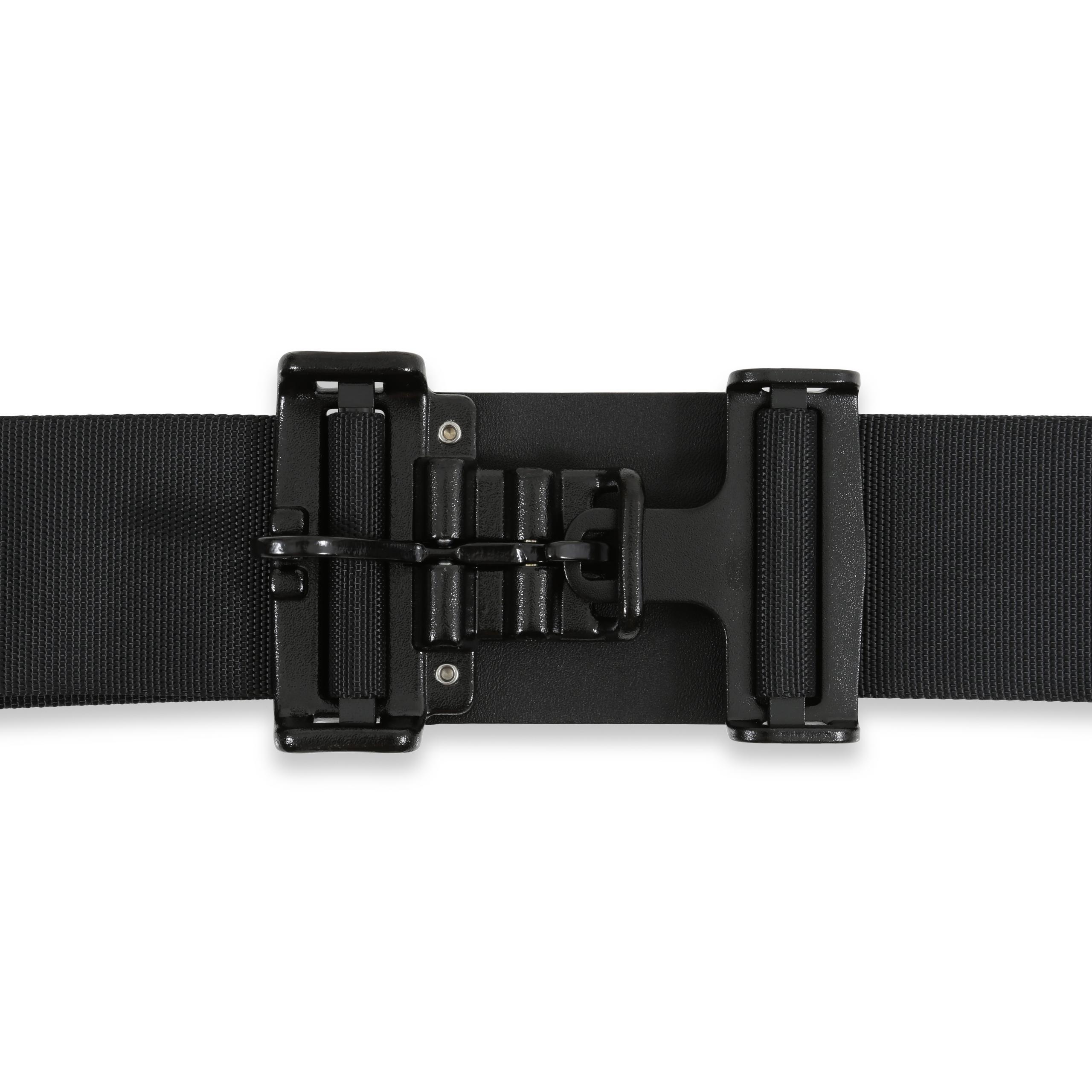

RaceQuip's Latch & Link 5-point HANS / HNR auto racing harness set has twin individual shoulder belts that are reduced to 2" above the adjusters to more easily accommodate a HANS or Head and Neck Restraint Device. These belts are manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60". All RaceQuip 717 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all the belts into place by snapping down into a detent. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends.
Black - 3 in. Lap - 3 in. to 2 in. Shoulder - 2 in. Sub
