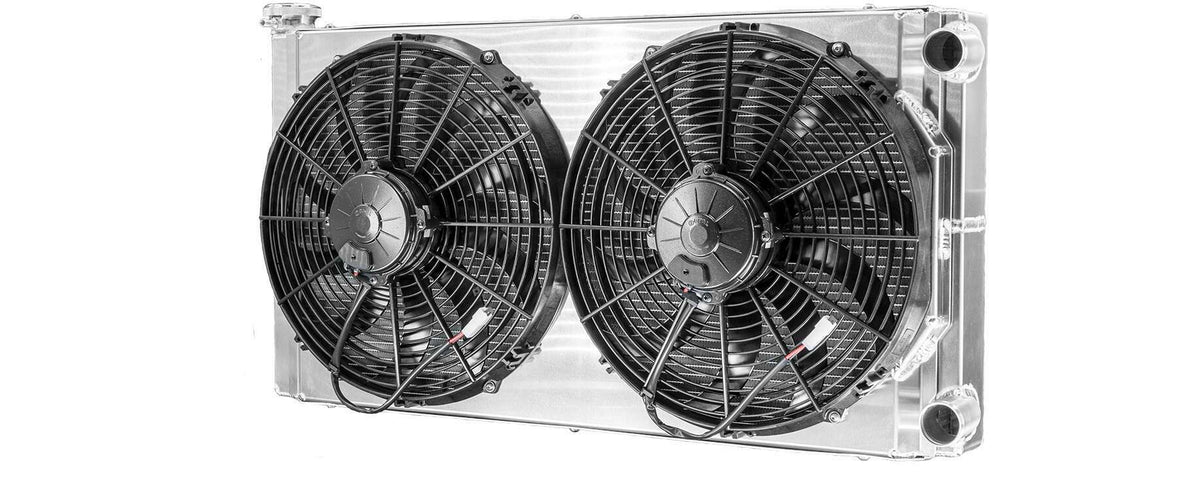

PWR Universal 31x16 Radiator Module W/ Fans - UC-SPR010B
CR Racing universal radiators are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. Our universal radiators come standard with a 55mm thick core utilizing our engineered extruded tubes and R-shape fin with a hemmed leading edge, so the fin does not fold over easily.
This radiator is a double pass configuration for more fluid to air contact which results in lower engine coolant temperatures. With including a large fill neck and CR Racings billet radiator cap, this radiator is considered an open system.
The inlet and outlet are a 1.50 inch hose barb for standard hose and clamps. Also included is an aluminum shroud that bolts to the radiator which incorporates 2 SPAL brushed 14 inch fans, which have been tailored to this core configuration to operate at max efficiency.
Features:
- Universal 31x16 Radiator Module W/ Fans
- Radiator Style: Crossflow
- Number of Passes: Double Pass
- Inlet Location: Upper Passenger Side
- Inlet Size: 1.50 Inch
- Outlet Location: Lower Passenger Side
- Outlet Size: 1.50 Inch
