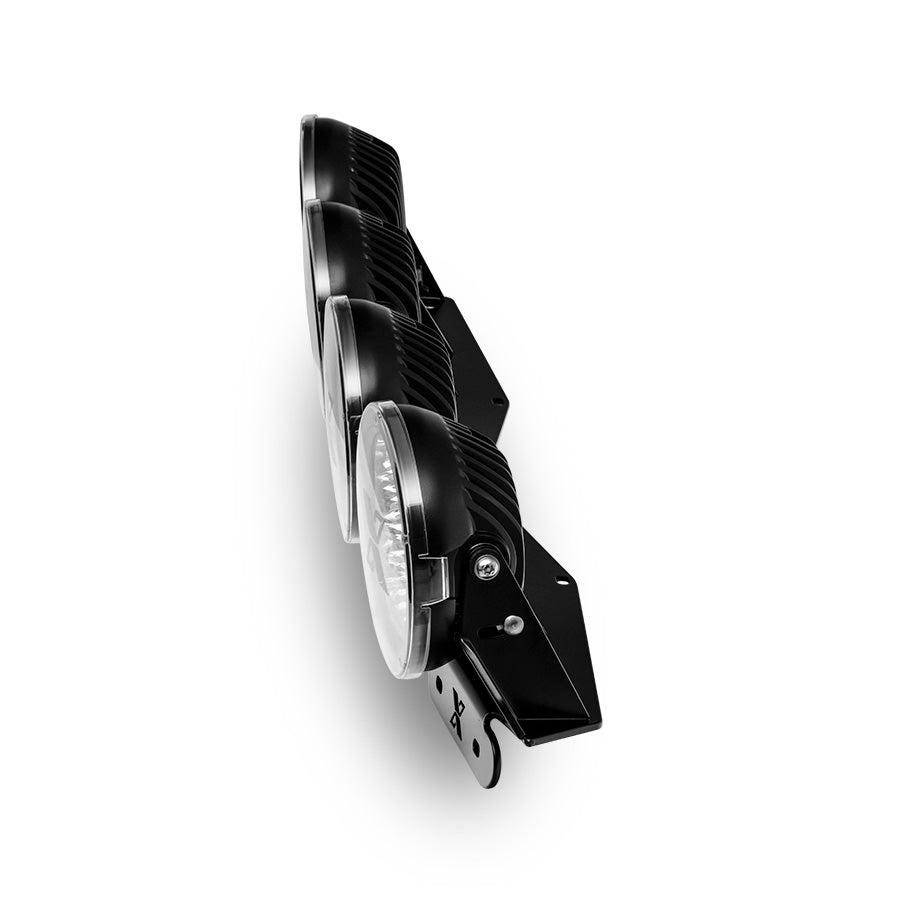

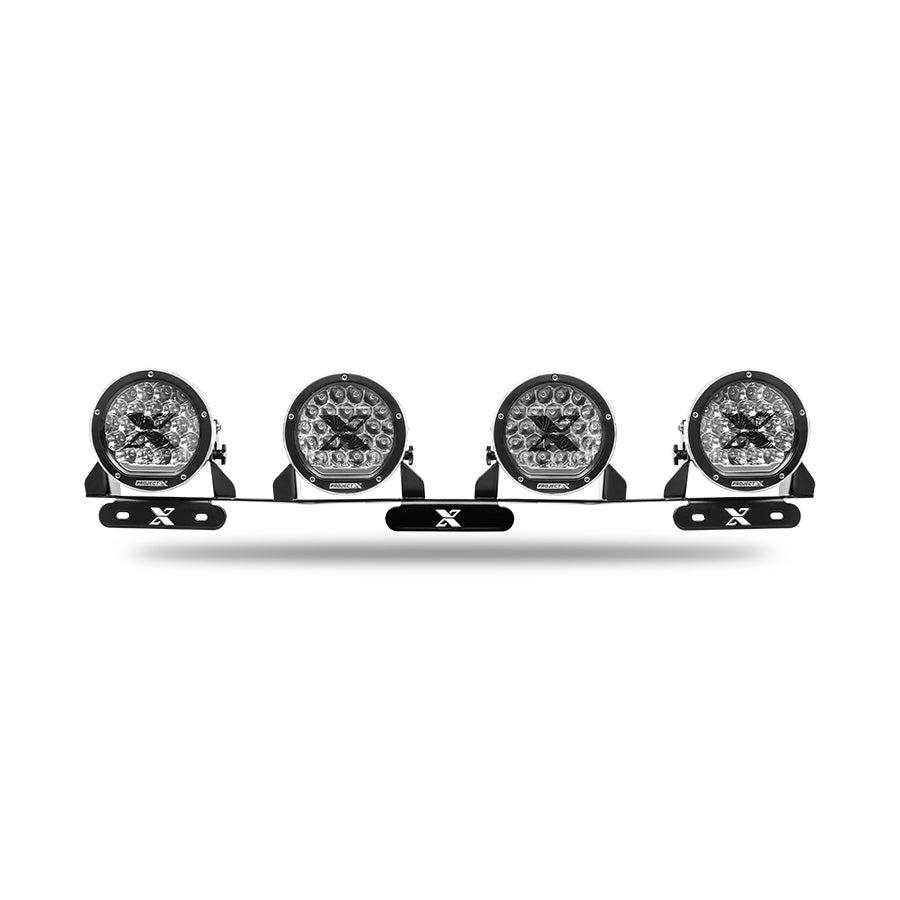

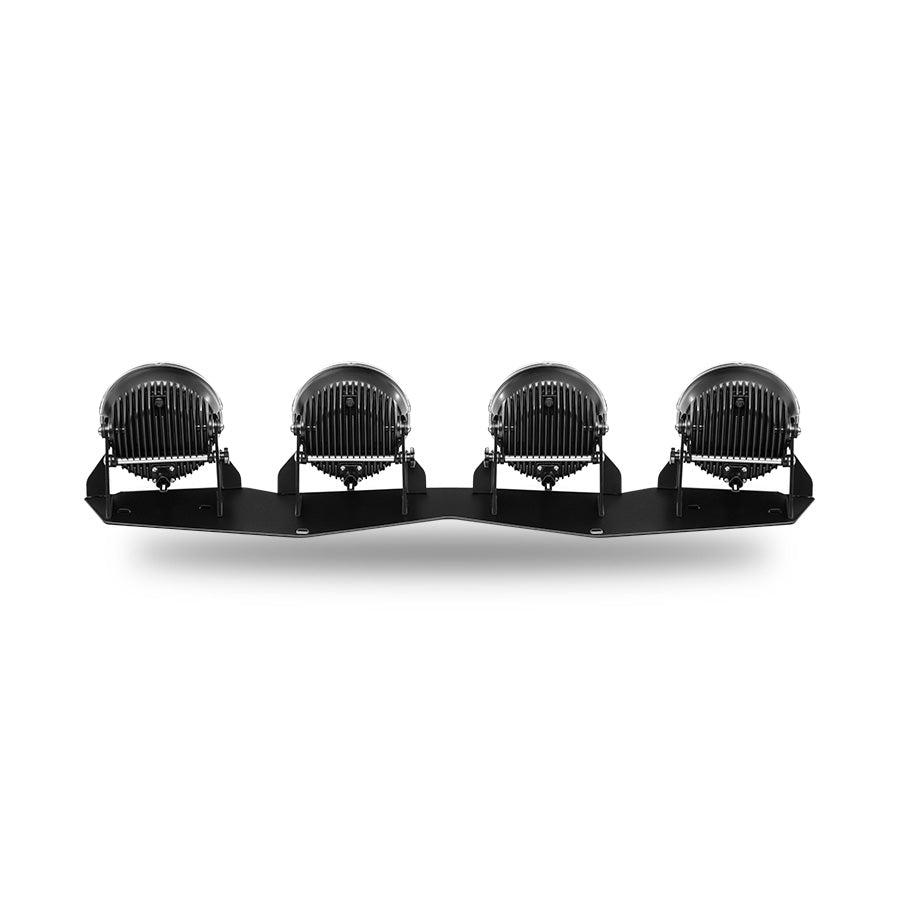

PROJECT X Series X 4-Light Bumper Kit for 2021-Present Bronco - CP538869-KIT

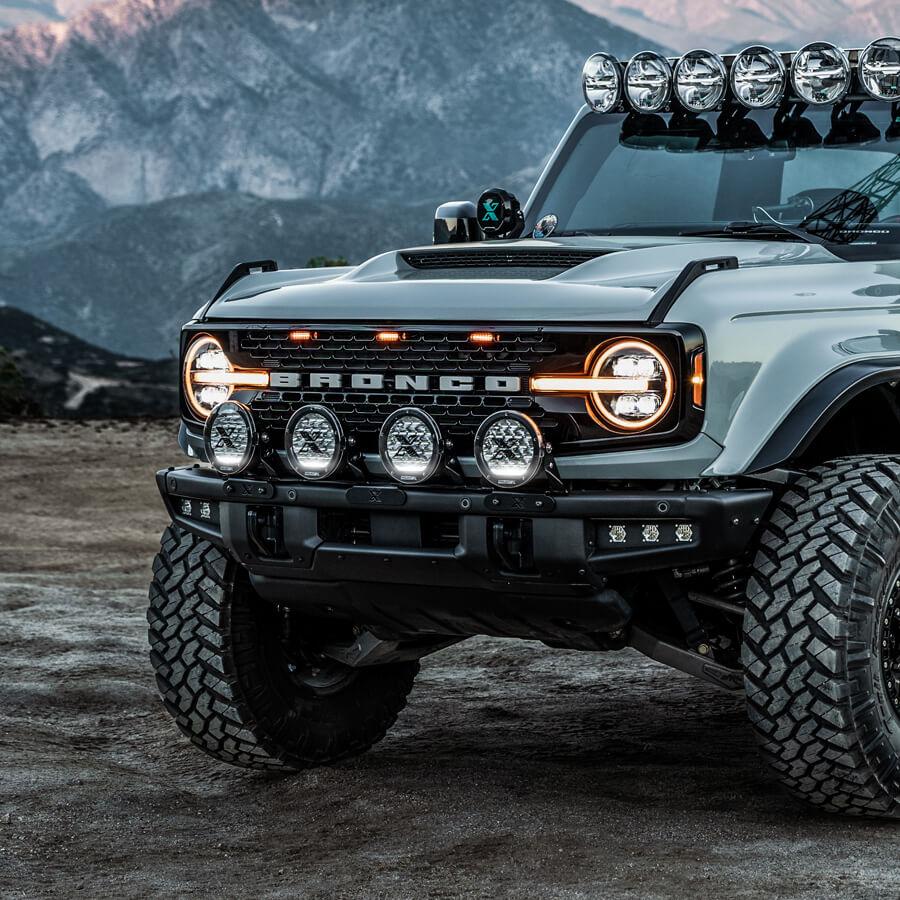

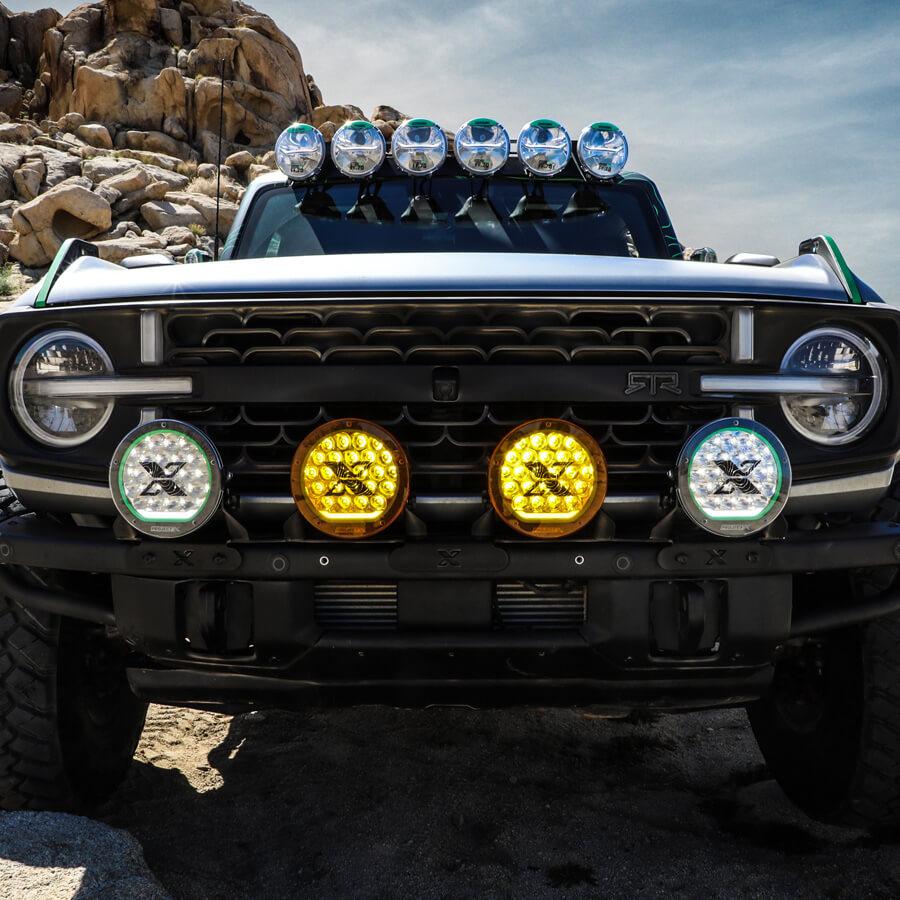

Light up the road ahead with the Project X - HP.70 Bronco 4-Light Bumper Kit, specifically designed for 2021-Present Ford Broncos with an OEM Modular Bumper. This high-powered lighting solution is perfect for off-road enthusiasts and Bronco owners looking to enhance their vehicle's nighttime visibility and front bumper aesthetic.

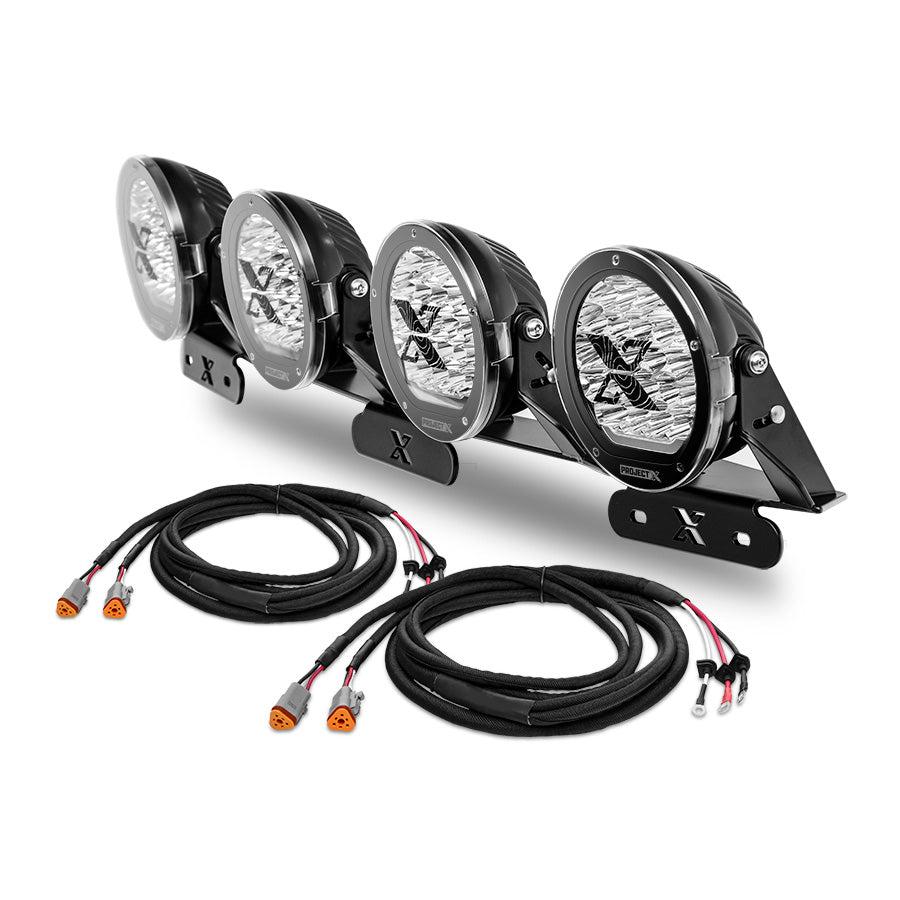

Simple Bolt-On Light Performance, this kit comes with everything you need to get the optimal performance out of four Series X HP.70 LED lights totaling 60,000 lumens on the front of your Bronco. The kit includes our Laser Welded 304 Stainless Steel Mount, four Series X HP.70 LED lights and two wiring harnesses.
Pair and control your new Bumper kit with our the top-rated 12V Switch Panel, Ghost Box by Project X (Sold Separately). Its wiring made simple, allowing you to quickly and easily install and start managing any 12V circuit. Control the Ghost Box via an optional keypad and/or your mobile device.
Each circuit offers constant on, strobe, and dimming functions. Quickly cycle through the functions in order from a single button, via the app: turn off any functions you don't need and adjust the strobing and dimming. Each Ghost Box also features adjustable low voltage protection and over-current protection. Enhance your 12V experience with Ghost Box.
Application:
- 2021-Present Ford Bronco 2-door w/ Modular Bumper
- 2021-Present Ford Bronco 4-door w/ Modular Bumper
- 2022-Present Ford Bronco Raptor w/ Modular Bumper
- Does not fit Bronco Sport
Features:
Power:
- Input Voltage: 9 - 33V
- LED Power Output: 480W
- Current Draw at 12V: 35.6A
- Current Draw Per Harness: 17.8A
- Power Consumption: 427.2W
- Operating Temp: -40 degrees F to 149 degrees F
- Heat Management: Active Thermal Management System (ATMS)
- Protection: Reverse Polarity, Protection
- EMC: ECE R10
LED:
- LED Type: Osram LEDs
- No. LED's: 24 per Light
Lumens:
- Color Temp: 5700 degrees K
- Color Rendering Index: 72
- Raw Lumens: 60,000
- Effective Lumens: 35,556
- Candela: 1,348,000
- Beam Length (1 lamp): 1 lux at 1443 Feet
- Beam Length (2 lamps): 1 lux at 2034 Feet
- Beam Width (1 lamp): 1 lux at 147 Feet
- Beam Width (2 lamps): 1 lux at 206 Feet
Construction:
- Mount Material: 304 Stainless Steel
- Mount Coating: Black Powder Coat
- Light Housing: Pressure die-cast aluminum
- Lens: Hard coated Polycarbonate
- IP Rating: IP66 and IP67
- Includes: Mount, Four-HP.70, Hardware and Wiring Harness
