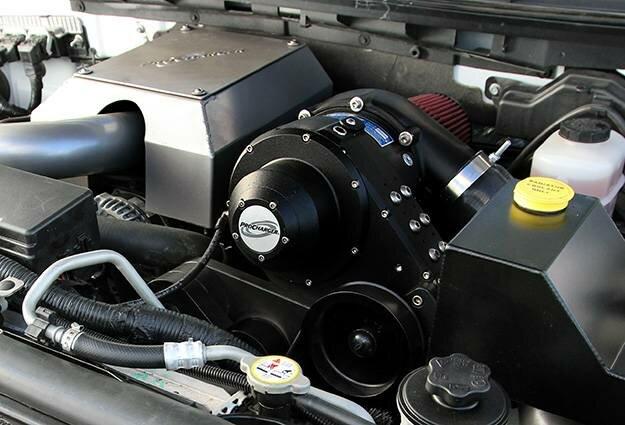

This is an ATI / Procharger i-1 Programmable Air-to-Air Intercooled HO Supercharger kit with Race intercooler for the 2011-2014 Ford F-150 5.0L which will get you 8-9 psi and a 60-70%+ horsepower gain!
ProCharger leads the market with the world's first programmable ratio supercharger, the brand new i-1 supercharger. Designed and manufactured in the USA, i-1 ProChargers feature exclusive billet impellers and rugged gear cases. Programmable boost is delivered by a highly durable variable ratio transmission design, with a rugged dry hybrid drive. Proven in over 4 years of intensive R&D and rigorous performance testing, the i-1 is available with ProCharger’s optional 3-year supercharger warranty. i-1 supercharger systems are 100% complete, and are backed by ProCharger and its network of dealers.
Bolt-on 205-235+ HP to a stock 5.0L with just 8-9 psi. The programmable ATI i-1 Procharger system produces not only the largest power gains, but also the ultimate performance curve. Drivers can switch between three factory supplied performance modes or create a custom mode with an intelligent control system.
DETAILS:
Horsepower gain: 60-70%+
i-1 supercharger, 8-9 psi
Highly effectiveair-to-air Race intercooler
Belt Drive System: Additional 8 rib Independent Programmable Drive
Fuel Pump Supplied: Not Required / Not Supplied
Fuel Injectors Supplied: 63 lb/hr
Computer/Ignition Mods.: Diablo Handheld Programmer and Custom Tune Supplied
The coolest charge air temperatures and largest power gains available
ProCharger’s patented and proven, self-contained oiling design requires no external oil lines
Easiest and quickest installation
System is 100% complete with OEM quality and appearance
The World's First Programmable Supercharger!

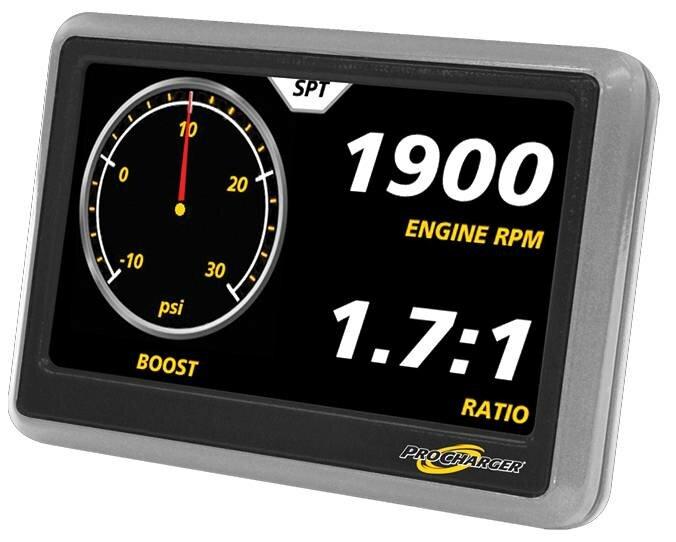

This latest addition to the ProCharger line produces not only the largest power gains, but also the ultimate performance curve. With an intelligent control system and an optional touch screen display, drivers can switch between 3 factory supplied performance modes, as well as a custom mode. Personalized display screens and data logging are also available.
Building on the benefits of centrifugal design, the i-1 delivers higher compressor efficiency than screw blowers, utilizes the most effective intercooling, and avoids the heat transfer associated with engine-top mounting or an exhaust interface. Air-to-air intercooling is standard, and as experts agree, inherently provides better cooling and reliability than air-to-water intercoolers for street use.
Due to these advantages, i-1 technology delivers the coolest charge air, the most power with greatest repeatability, and best in class fuel economy. Similar to P-1SC-1 and D-1SC supercharger systems, i-1 ProCharger systems produce far more power per psi of boost than air-water-intercooled positive displacement supercharger systems. Continuing the ProCharger tradition, i-1 supercharger systems also feature a broader operating range than PD blowers, and greater upgradability. The i-1 ProCharger is designed for both stock and modified applications, and supports up to 900 flywheel horsepower.
The patented programmable i-1 design produces immediate response, even at low engine rpm, without any turbo lag or boost falloff at higher engine rpm. To further increase performance, competition mode can be quickly selected, and owners can use the touch screen to lock the supercharger in low ratio mode or select a personalized mode.
ATI / ProCharger Dealer information
Procharger is very strict about who they allow as dealers. Procharger dealers must have experience with high performance forced induction applications and provide excellent customer service and application advice. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits.
Why choose ATI / Procharger Superchargers?
Air-to-air intercooling is standard and provides better cooling and reliability than air-to-water intercoolers for street use. The i-1's centrifugal design delivers higher compressor efficiency than screw blowers, utilizes the most effective intercooling and avoids the heat transfer associated with engine-top mounting or an exhaust interface. Due to these advantages, i-1 technology delivers the coolest air charge, the most power with greatest repeatability and best in class fuel economy. The i-1 Procharger system is similar to the P-1SC-1 and D-1SC systems as it produces far more power per psi of boost than air-to-water intercooled positive displacement supercharger systems. Also, the i-1 features a broader operating range than a positive displacement blower. Immediate response is delivered by the patented programmable i-1 design, even at low engine RPM without any lag or boost falloff at higher engine RPM..
Superior Supercharger Technology
I-1 Prochargers feature exclusive billet impellers and rugged gear cases. Programmable boost is delivered by a highly durable variable ratio transmission design with a rugged dry hybrid drive. Four years of intensive R&D and rigorous performance testing was done before releasing this revolutionary design. An i-1 supercharger can be used on stock and modified applications and supports up to 900 flywheel horsepower. Systems come 100% complete and are made in the USA!
