DESCRIPTION

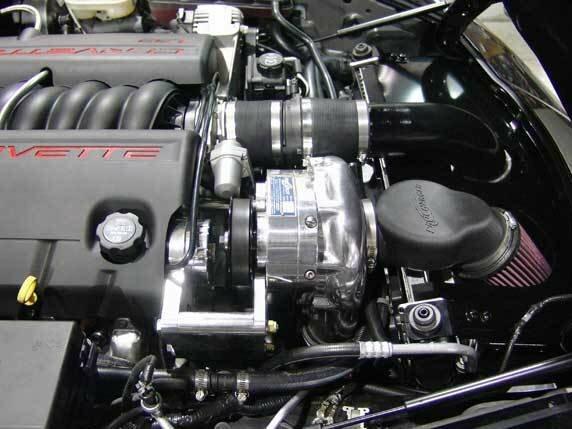

Over the years the power levels of Corvette C6 with Procharger Superchargers have been pushed from 550 RWHP to upwards of 1,400 RWHP. In order to meet the high-performance demands of today's C6 Corvettes we have developed a Stage II kit for the highest power levels.
A challenge with high HP C6 supercharger systems is combating serpentine belt slip. The Longer the belt, the more it will stretch as power is applied to it. To keep the Procharger drive belt short, we have incorporated a dedicated belt drive into the Stage II system. The dedicated belt drive works by separating the supercharger and accessories from the single drive belt and runs them on the belt of their own. The supercharger runs a dedicated belt directly to the factory balancer, and the accessories are driven by a new power transfer drive system that allows them to run on a a different belt. By adding a dedicated belt system for the Procharger, we are able to decrease the overall belt length by over 40%, creating an ultra-strong grip, which in turn leads to more consistent boost levels and less belt slip. The accessories are given a strong OEM spring-loaded tensioner to ensure they have adequate belt pressure applied as their belt wears and grows over time.
The Stage II system comes standard with a 6-rib supercharger drive belt, which can be upgraded to an 8 or 12 rib drive system with the addition of an aftermarket balancer. The Stage II system also includes a 4.00" air inlet tube combined with a high-flowing, reusable air filter. If you already have an existing HO Procharger system, you can upgrade to the Stage II System and the Race Intercooler as well.
DETAILS:
Horsepower gain: 40%-50%
P-1SC-1 supercharger head unit, 4-7 psi
Highly effective C6 3 Core air-to-air intercooler
All 3" tubing and ProFlo Bypass Valve
Belt Drive System: Additional Dedicated 6 rib
Fuel Pump Supplied: Not required
Fuel Injectors Supplied: Upgraded injectors supplied
Computer/Ignition Mods.: Programmer supplied
The coolest charge air temperatures and largest power gains available
ProCharger's patented and proven, self-contained oiling design requires no external oil lines
Easiest and quickest installation
System is 100% complete with OEM quality and appearance
ATI / ProCharger Dealer information
Procharger is very strict about who they allow as dealers. Procharger dealers must have experience with high performance forced induction applications and provide excellent customer service and application advice. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits.
Why choose ATI / Procharger Superchargers?
ProCharger supercharger systems are absolutely the most powerful and reliable supercharger systems available for your vehicle. Intercooler ProCharger systems are able to reliably increase horsepower and torque by 50-85% while still keeping your vehicle emissions legal and allowing you to run pump gas. For street use or at the track, Intercooled ProCharger supercharger systems will deliver the largest increase in horsepower and torque available from any supercharger system. And thanks to the extremely low charge air temperatures provided by ProCharger technology, ProCharger systems also provide much better engine longevity by protecting your motor from detonation. ProCharger systems are designed with a fundamental understanding of the physics behind supercharging, and are engineered to the highest quality standards. Designed, manufactured and serviced in the USA.
Superior Supercharger Technology
Thanks to relentless innovation, ProCharger technology is generations ahead of the competition. ATI’s self-contained (Part numbers ending in SC) ProCharger models are the first and only gear-driven centrifugal superchargers to feature self-lubrication, and contain the industry’s most advanced technology. The exclusive, patented, self-contained, gear-driven superchargers eliminate tapping into your oil pan, run cooler and produce more power than any competitor’s products. The impellers are created with aircraft grade 7075 T-6 aluminum alloy for tremendous strength and performance. The top tier material used in the construction of every ProCharger billet impeller and compressor housing allows the use of higher step up ratios than the competition. This in turn allows increased boost levels and superior overall performance than other offerings on the market. Because of this unwavering commitment to excellence, ProCharger is the only manufacturer of self-contained superchargers offering a 3-year warranty to ensure years of trouble free performance.
