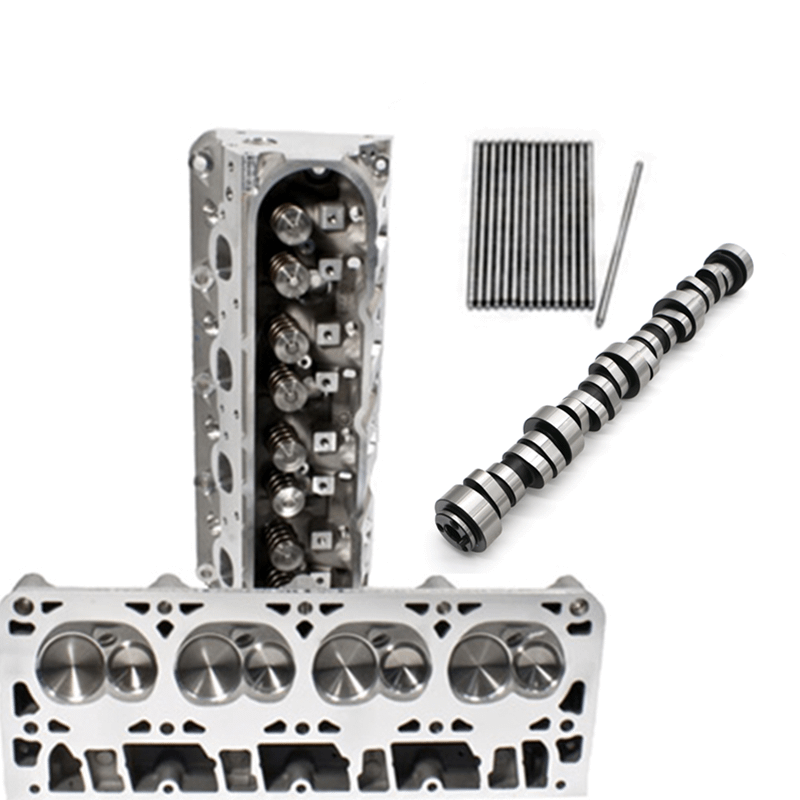

Precision Race Components LS3 As-Cast 6-Bolt Aftermarket Casting Heads & Cam Package - PRR-199-PKG18
Precision Race Components all new LS3 as-cast cylinder heads completed with CNC machined chambers & valve guides. For LS3/L99/L92/LSA/LS9 applications requiring a high flow aftermarket cylinder head at a competitive price!
MADE IN THE USA!!
CAST IN THE USA!!
MACHINED IN THE USA!!
As-Cast 257cc Intake Runners With CNC Machined Chambers & Valve Guides For Unmatched Flow!
68cc CNC Machined Chambers as Standard; Can Be Milled Down to 64cc Chambers & Still Retain Better than Factory Piston-to-Valve Clearance
Thicker Deck Surface Makes Them Ideal For Power-Adder Applications
2.17" Intake / 1.600" Stainless Valves
Utilizes Factory Rocker Arms
Includes TSP Dual Spring Kit w/ PAC .660" Valve Springs!
Available with Hollow-Stem Intake Valves to Reduce Valvetrain Weight
The all new PRC LS3 As-Cast cylinder heads are now available for customers looking for the ultimate as-cast LS3 cylinder heads available. The new PRC as-cast intake port has been flow bench tested to flow 369 CFM & can support everything from smaller camshaft street engines all the way to all out race engines. The cylinder heads will come standard with 68cc chambers, and we can mill them as small as 64cc while still retaining better than factory piston-to-valve clearance! We can mill additionally to get to your desired chamber size for no additional charge!
Flow Data (4.00" Flow Plate - No Exhaust Pipe):
LIFT
INTAKE FLOW
EXHAUST FLOW
.200"
153 CFM
114 CFM
.300"
233 CFM
163 CFM
.400"
287 CFM
191 CFM
.500"
329 CFM
214 CFM
.600"
357 CFM
228 CFM
.650"
369 CFM
233 CFM
**You must have a minimum of a 4.00" bore size to run these cylinder heads!**
***If you purchase a Melling oil pump you MUST use a single-roller timing set! The Melling oil pump will not clear a double-roller timing set!***
