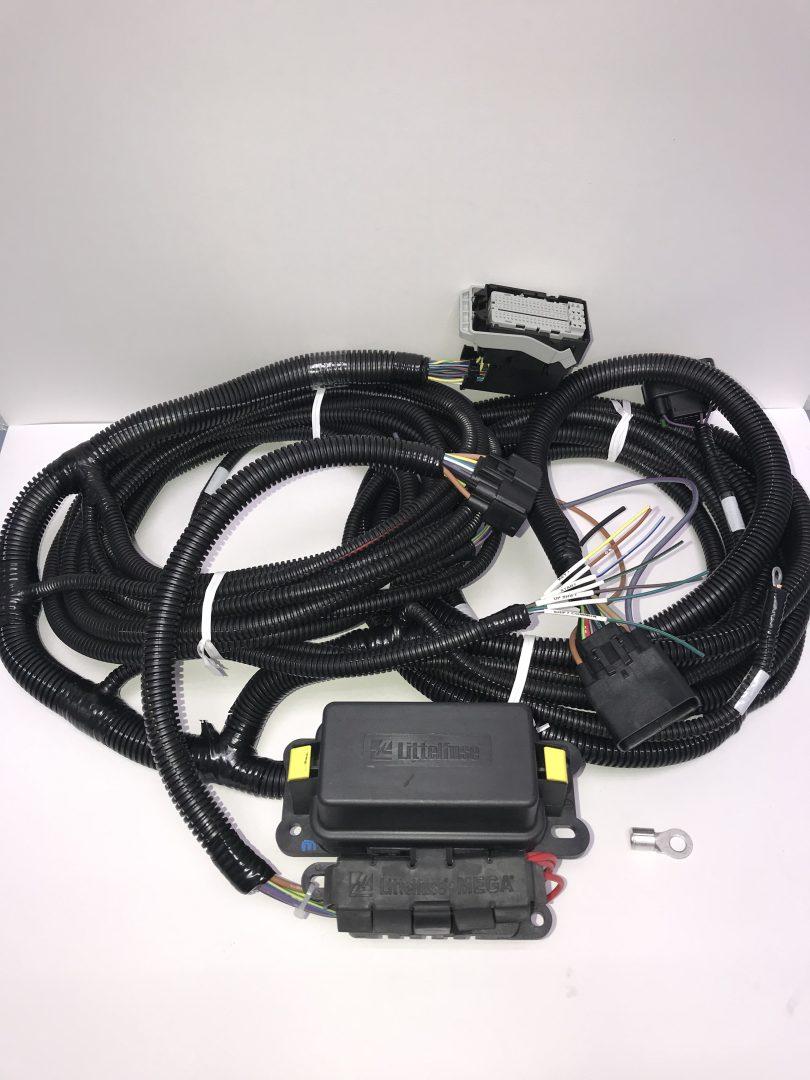

Power By The Hour Performance now offers a Gen 2 body harness, like our Gen 1 harness, is a perfect solution for your Coyote swap project. The PBH Gen 2 body harness is fully compatible with 2015-2017 Mustang or 2015-2017 F-150 engines equipped with the 6R80 automatic or a manual transmission. We manufacture these harnesses here in the USA and they have all the needed wiring to ensure whether you are going manual or auto only one body harness is needed.
This is a great option for anyone purchasing used powertrains, crank-a-pallet’s, and used engines. In most cases you receive the PCM, sensors, and pedal needed to run the engines but are missing the wiring. This harness will allow you to finish the job without having to purchase pricey control packs.
Key features of the PBH body harness are below:
*Labeled wiring leads for fuel pump, cooling fan, starter trigger, and battery power hookup
*OEM connectors
*Select shift wiring for easy integration to aftermarket and custom shifters
*Detachable fuse box
*Works with 15-17 Mustang GT, F150, new or used.
*Detailed instructions and OEM function
*Designed specifically for Coyote powered projects
*No horsepower limitations
Compatibility:
*2015-newer Mustang 6R80 transmissions
*All manual transmissions
*All independently controlled or manually shifted automatic transmissions
*2015-up F150 6r80 transmissions
Installation of this harness without PCM flash Modification will result in a no start condition. All OEM PCM’s from donor vehicles must be have a Calibration Re-flash to update several parameters that are needed to run the engine. This is the link for the Control Pack Flash for your PCM
