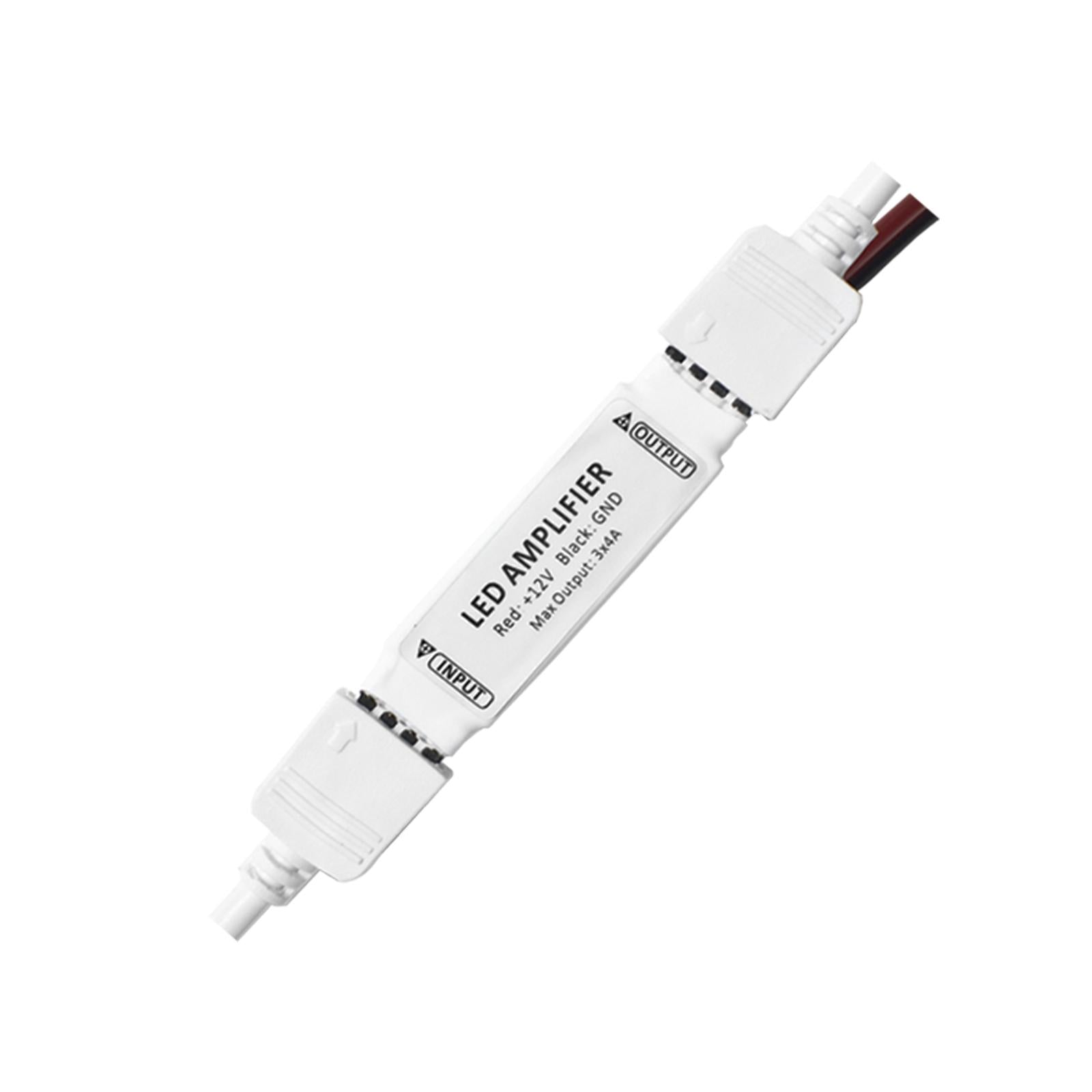

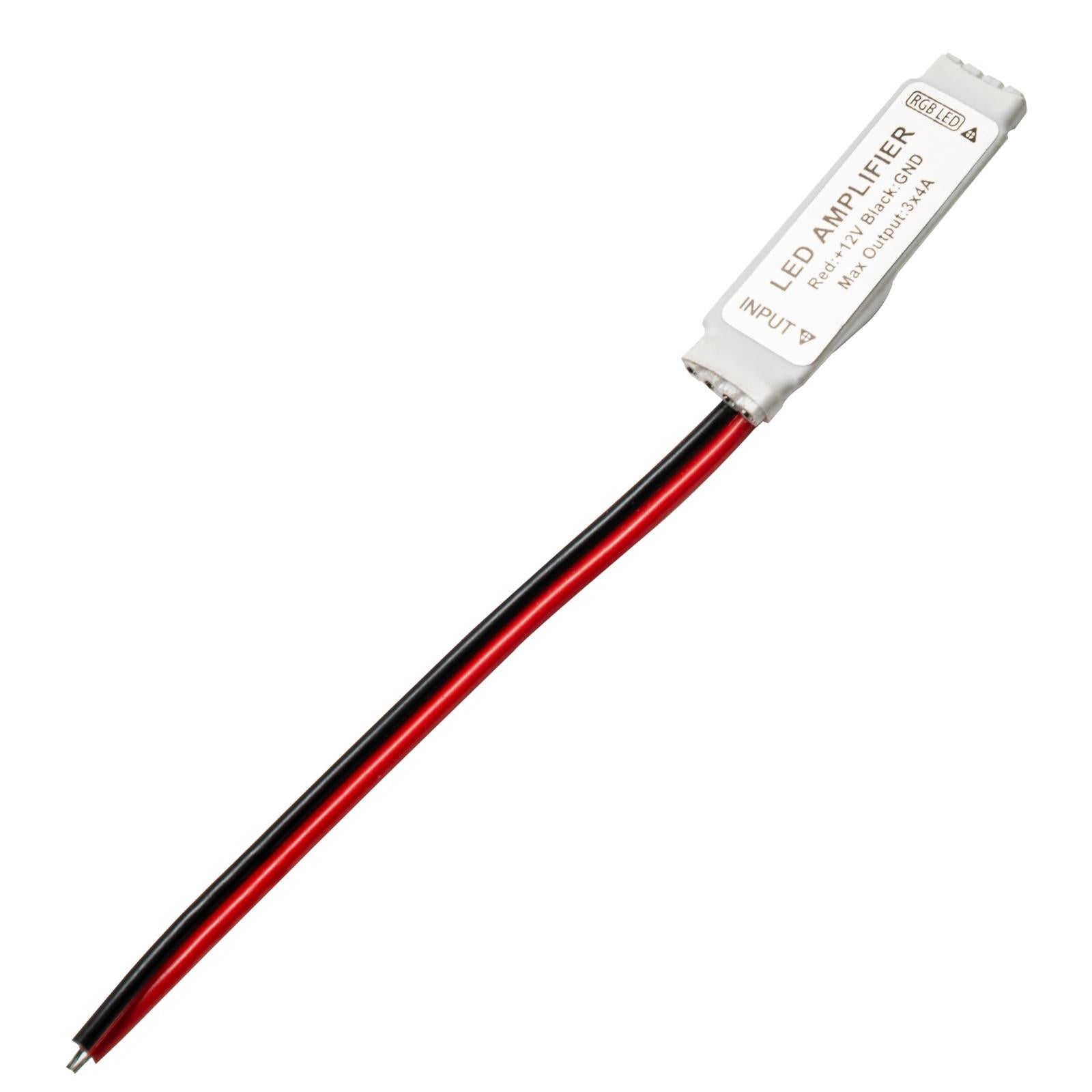

Oracle Lighting In-Line Led Amplifier - 1615-504
This amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. Includes 2 x 4-pin RBG pigtail connectors.
Increases the load capability and extends the signal of any universal RGB controller.
We have one goal in mind, delivering the highest quality and most innovative lighting products to our customers at fair prices.
2 Year Warranty
In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
