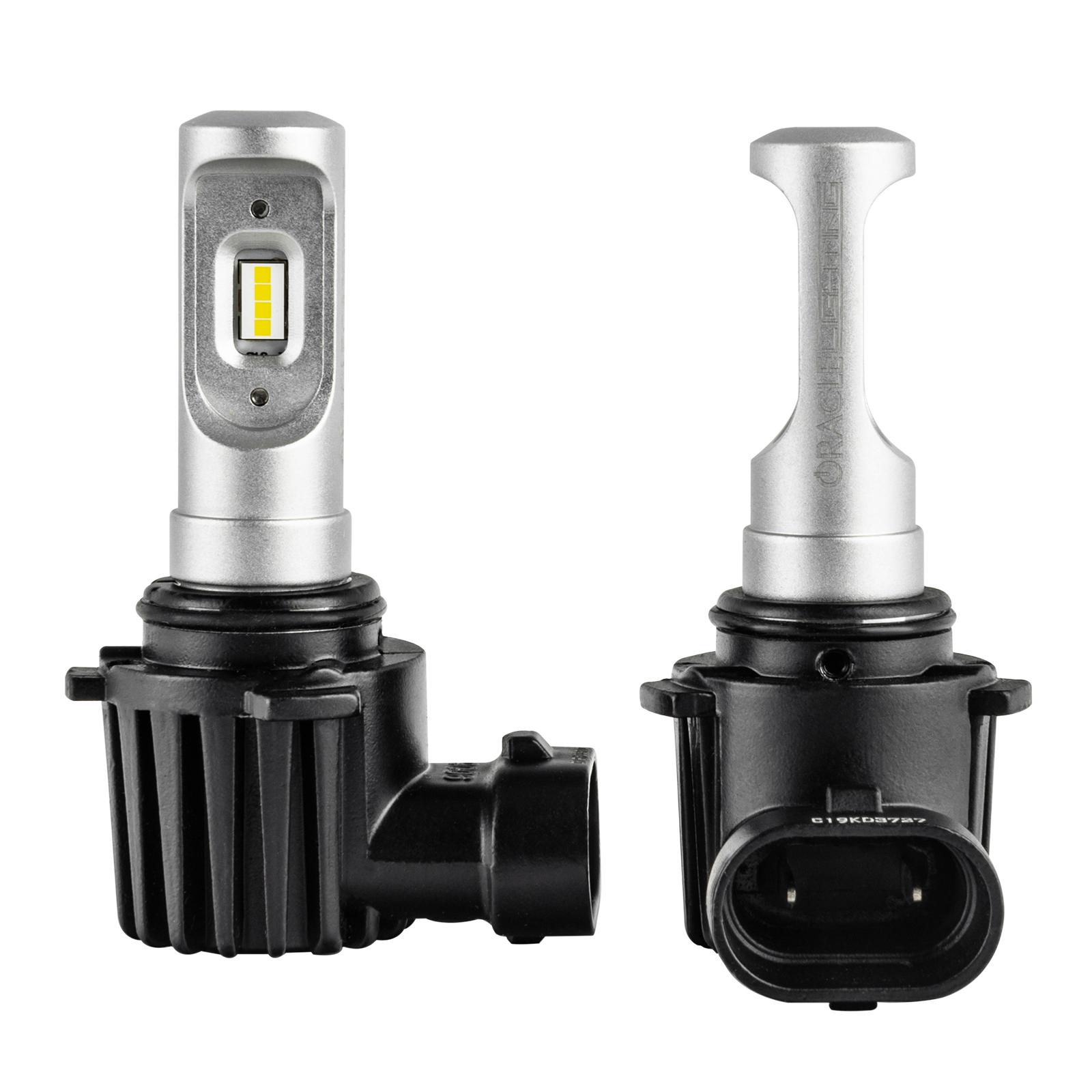

Oracle Lighting 9006 Vseries Led Headlight Bulb Conversion Kit, 6000K - V5240-001
The new all-in-one diecast body design is direct replacement to factory bulb. Thus no additional wiring or external drivers needed to install. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp.
ONLY DOT Compliant, Street Legal LED Headlight Conversion Available
We have one goal in mind, delivering the highest quality and most innovative lighting products to our customers at fair prices.
FIRST 6-Volt DRL Compatible LED Bulb Available
LED Bulb features Precision Filament Geometry for no-Glare Illumination
No Fan, Head-Sink, or other cooling system
Physically matches original bulb for OEM fitment and easy DIY installation

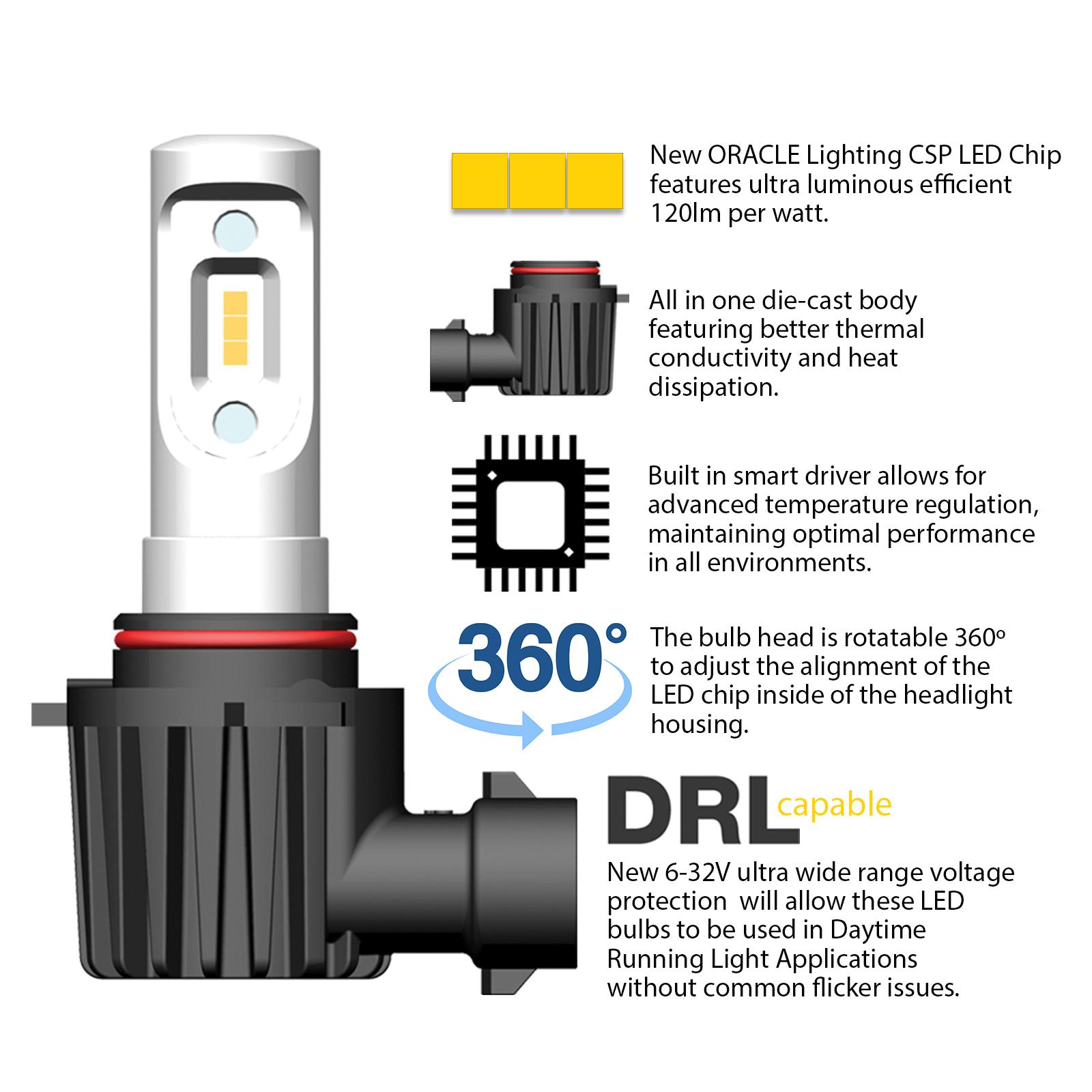

The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lighting?s new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called ?thermal foldback? to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened.
