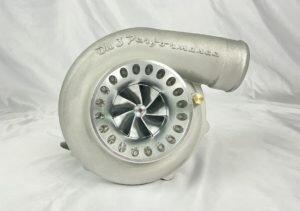

On3 Performance 67/66 CNC Billet Wheel Turbocharger - 6766
550-1025hp
This is a brand new release turbocharger and one of our new premium line
turbochargers. We are working hard to bring better quality to the market
for less of your hard earned money. With this new 2nd Generation line,
each of these models will come standard with our new CNC Billet compressor
wheel. Now the only selection you will need to make is your bearing
structure. Each of these units will come with our journal bearing
configuration, you can select to opt for the dual ceramic ball bearing if
you choose.
Compressor Specifications
Inducer: 67.40mm
Exducer: 82mm
Extended Tip: 88.30mm
Compressor Inlet: 4″ slip fit
Compressor Outlet: 2.5″ slip fit
Turbine Specifications
Inducer: 74mm
Exducer: 66.10mm
A/R: 0.68
Turbine Inlet Flange: 2.25” V-Band
Turbine Outlet Flange: 4.0” V-Band
** Recommended for 1.8L-6.0L **
