WHP Potential on Gasoline: 710 WHP @ 24 MPa
WHP Potential on E85: 525 WHP @ 24 MPa
Flow rate increase over stock: 40%
Fuel flow rate: 19.7 g/s at 100 bar
Max Operating Pressure: 250 bar / 25 MPa / 3626 psi
Tune Required?: Yes Recommended tuning suite: HPTuners, SCT
What sets Nostrum apart:
Direct Replacement
OEM equivalent spray pattern
Limited Lifetime Warranty
Detailed Installation guide provided
Tuning guide available
40% Flow rate increase
250 Bar capable
Ethanol Compatible

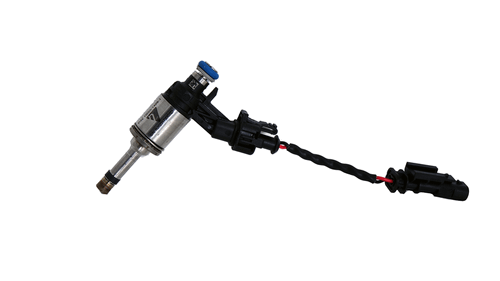

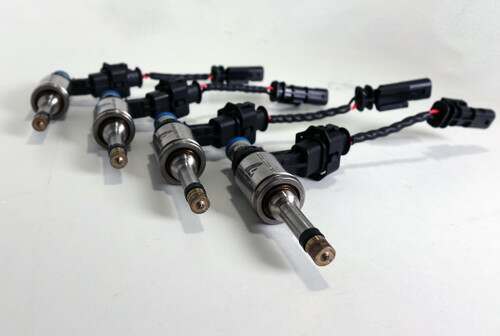

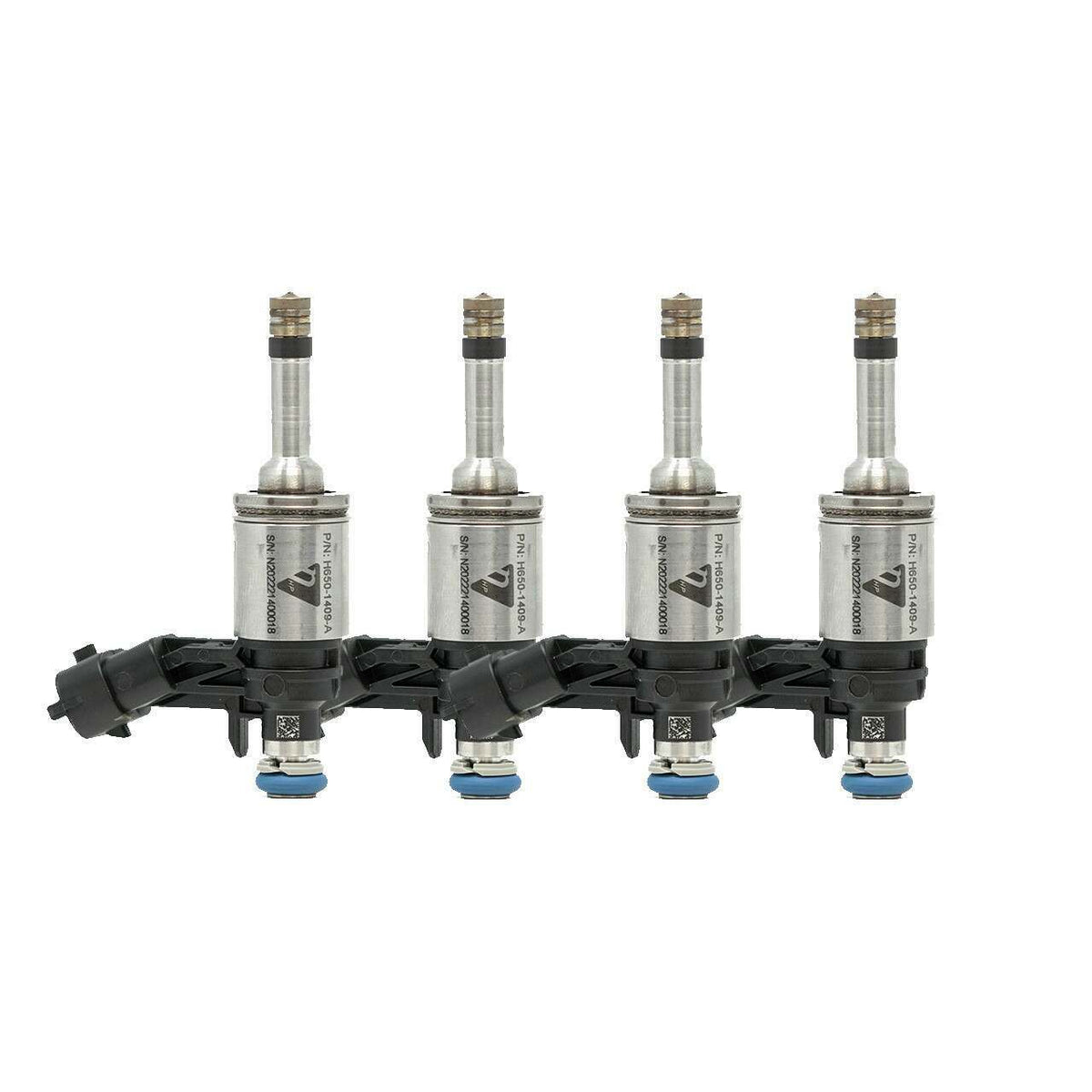

Introducing Nostrum's High Flow Injectors for the 2.3 Ecoboost Ford Ranger!
Our upgraded injectors have been designed and tested to flow 40% more fuel than the Ranger's stock 2.3 EcoBoost injectors. That additional fuel flow allows for a significant increase in horsepower, with proper tuning. We estimate that these injectors will flow enough fuel to make over 700 wheel horsepower without the need for secondary port injection!
To take full advantage of your new NHP injectors, we recommend pairing them with our Standard Bore Plus HPFP, which flows 36% more fuel than the stock pump. This is perfect for anyone who is looking to get the most out of their stock turbo, or run pump E85! That additional fuel flow allows for significant torque increases earlier in the rev range, and provide the injectors with all the fuel they need to make more peak horsepower, when properly tuned.

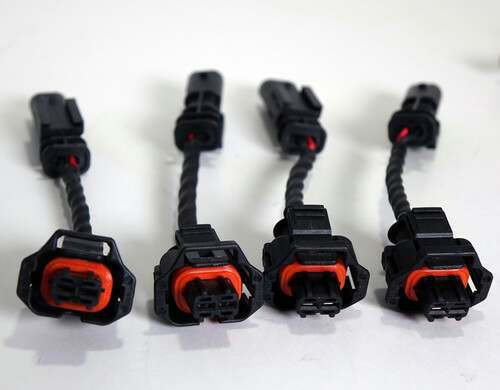

Inside the box, you will find what you need to get your new fuel system installed quickly, including all the hardware and accessories that you need, as well as extensively detailed installation instructions that outline special tools and Ford Motorcraft replacement parts you might need! Being that everything is installed like a factory part, there’s no need to worry about secondary injection controllers, filling meth tanks, clogged meth injectors, or any of the other complex solutions people use to squeeze more power out of these vehicles. Additionally, these injectors are operating with all the OEM ECU’s engine management system diagnostics and safety functions – resulting in a much happier and responsive system!
When you are ready to tune, we have suite specific tuning guides (HP Tuners, SCT) available for your dealer or tuner. These tuning guides are developed by our in-house calibration team on-dyno and on-road! We worked extensively with SW companies like HP Tuners to validate their tables and make sure everything needed is there to run these injectors perfeclty in the Ranger ECU!
Every Nostrum manufactured part is backed by a limited lifetime warranty. Our products are comprehensive solutions that come complete with everything you need inside the box, including detailed installation instructions. Tuning guides are also available for your dealer or tuner. We have customer service and calibration engineers on staff to provide you with any support that you may need, from installation to tuning.
Vehicle application list:
2019-2023 Ford Ranger 2.3
