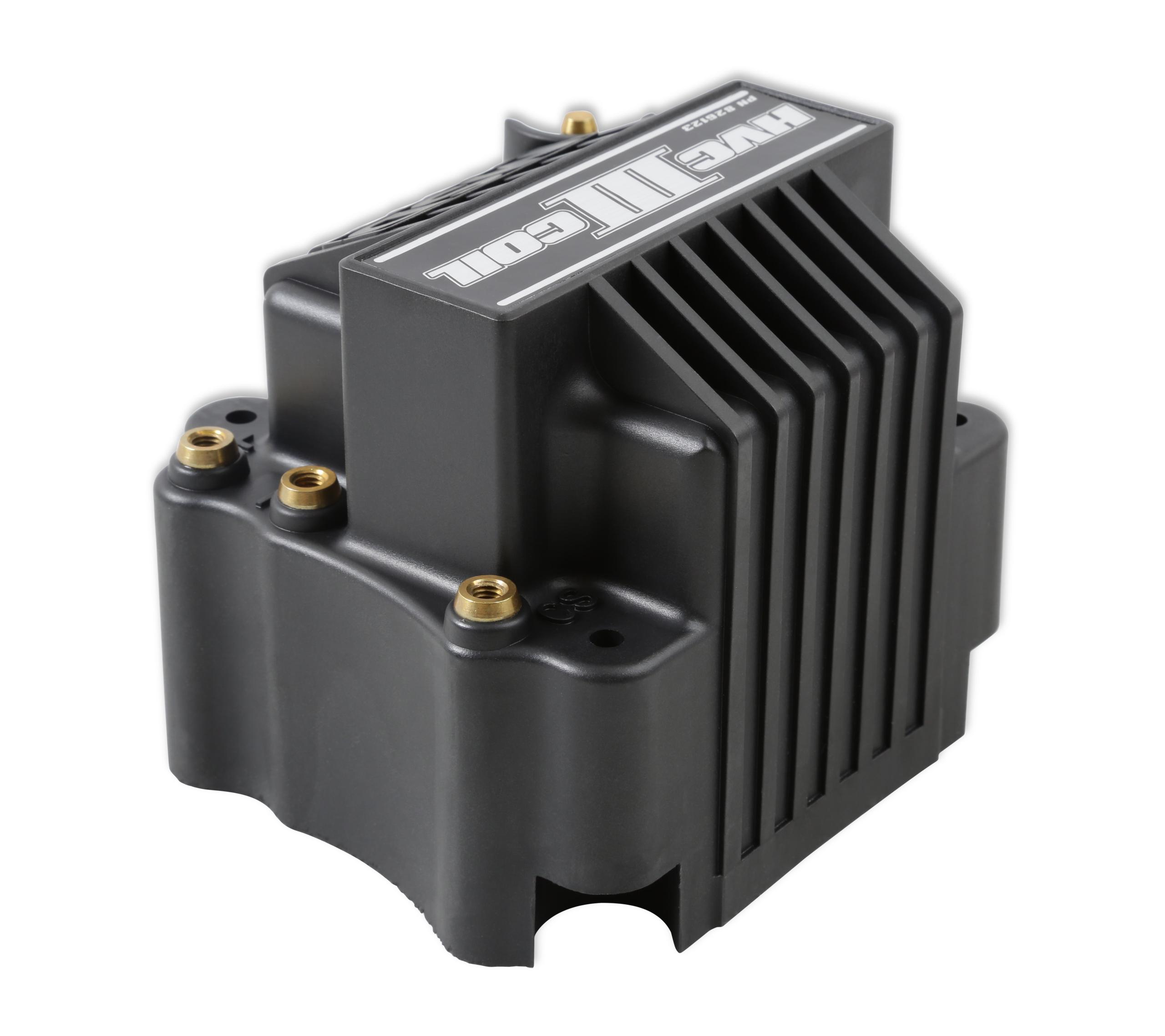

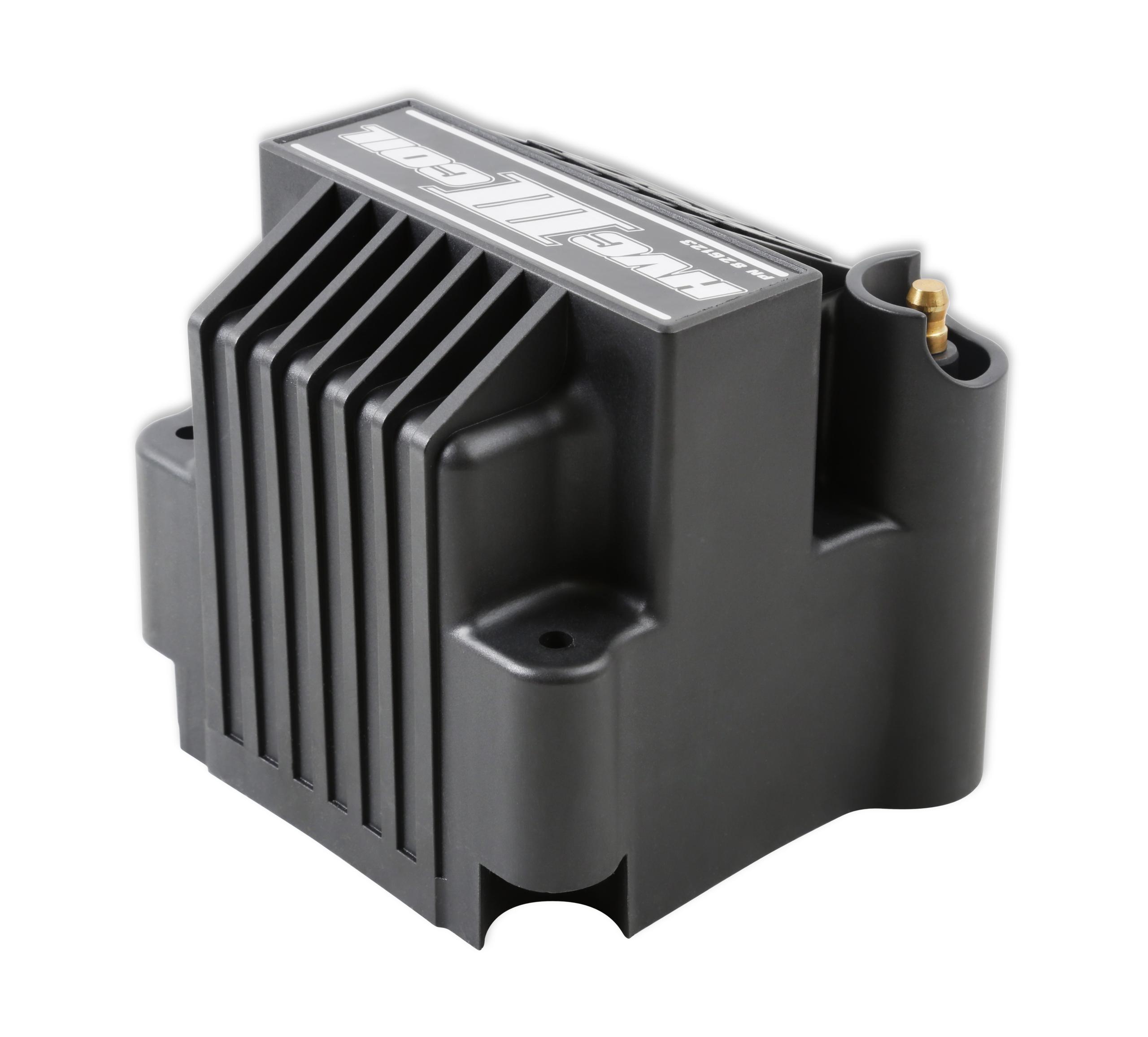

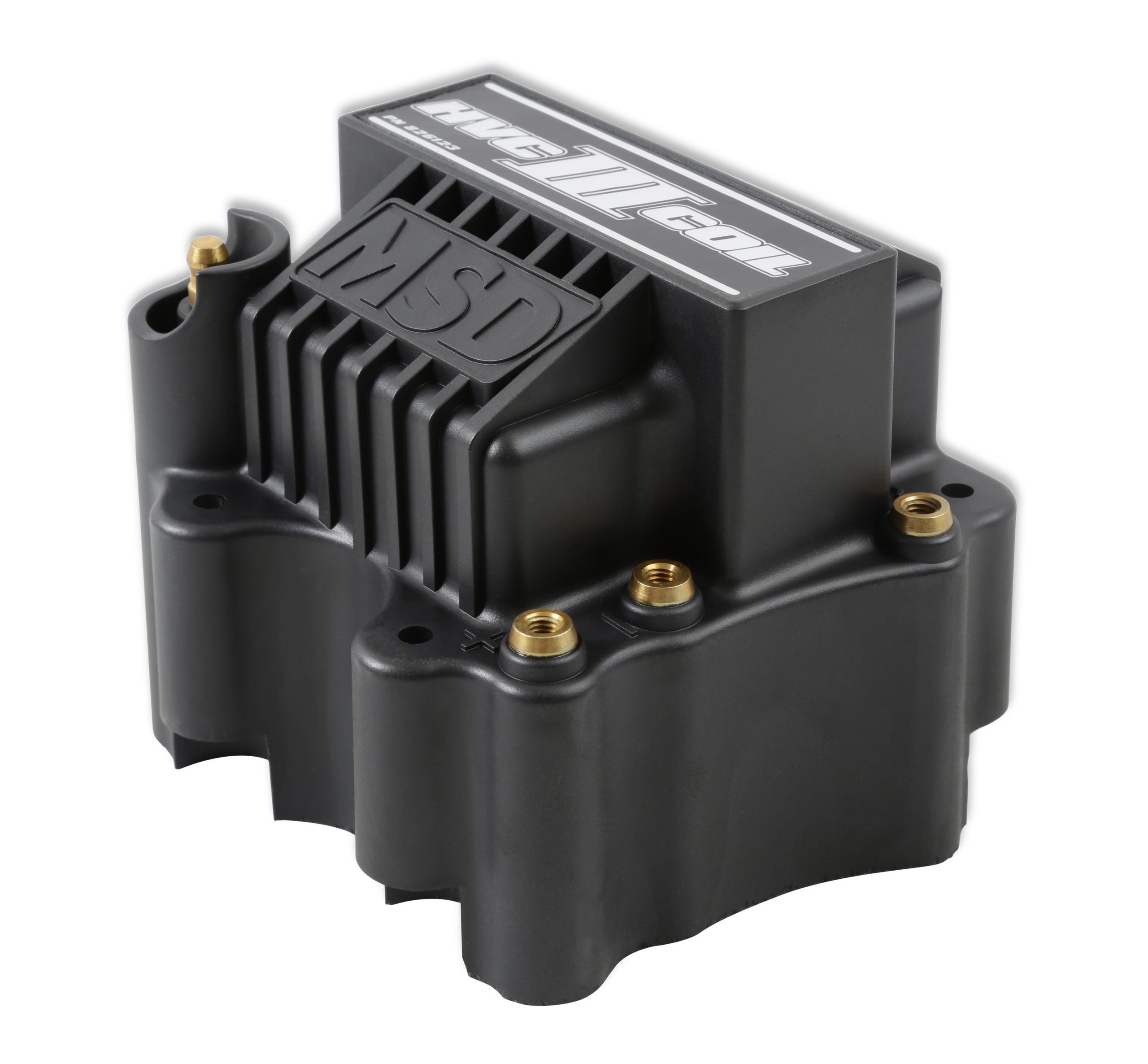

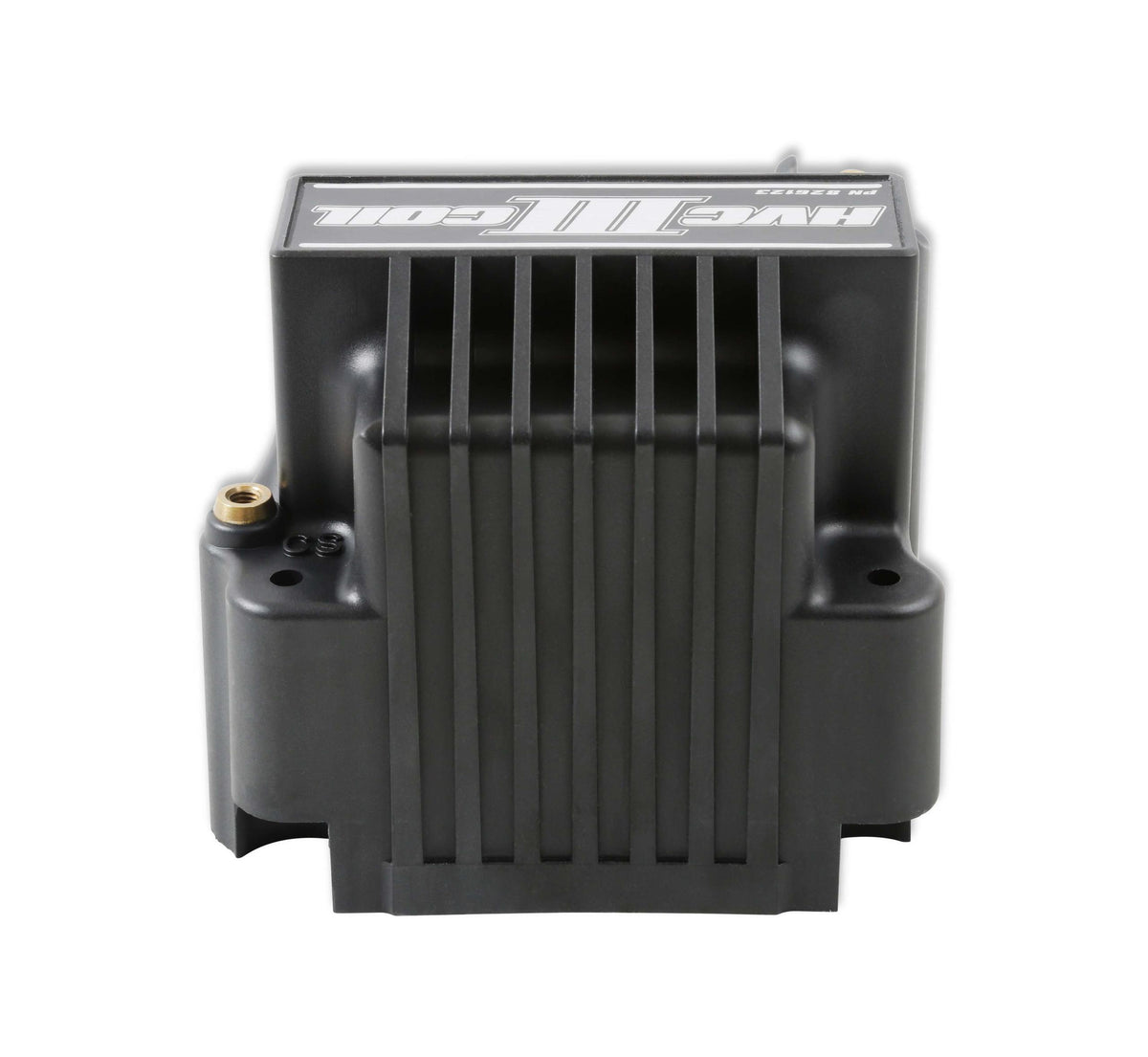

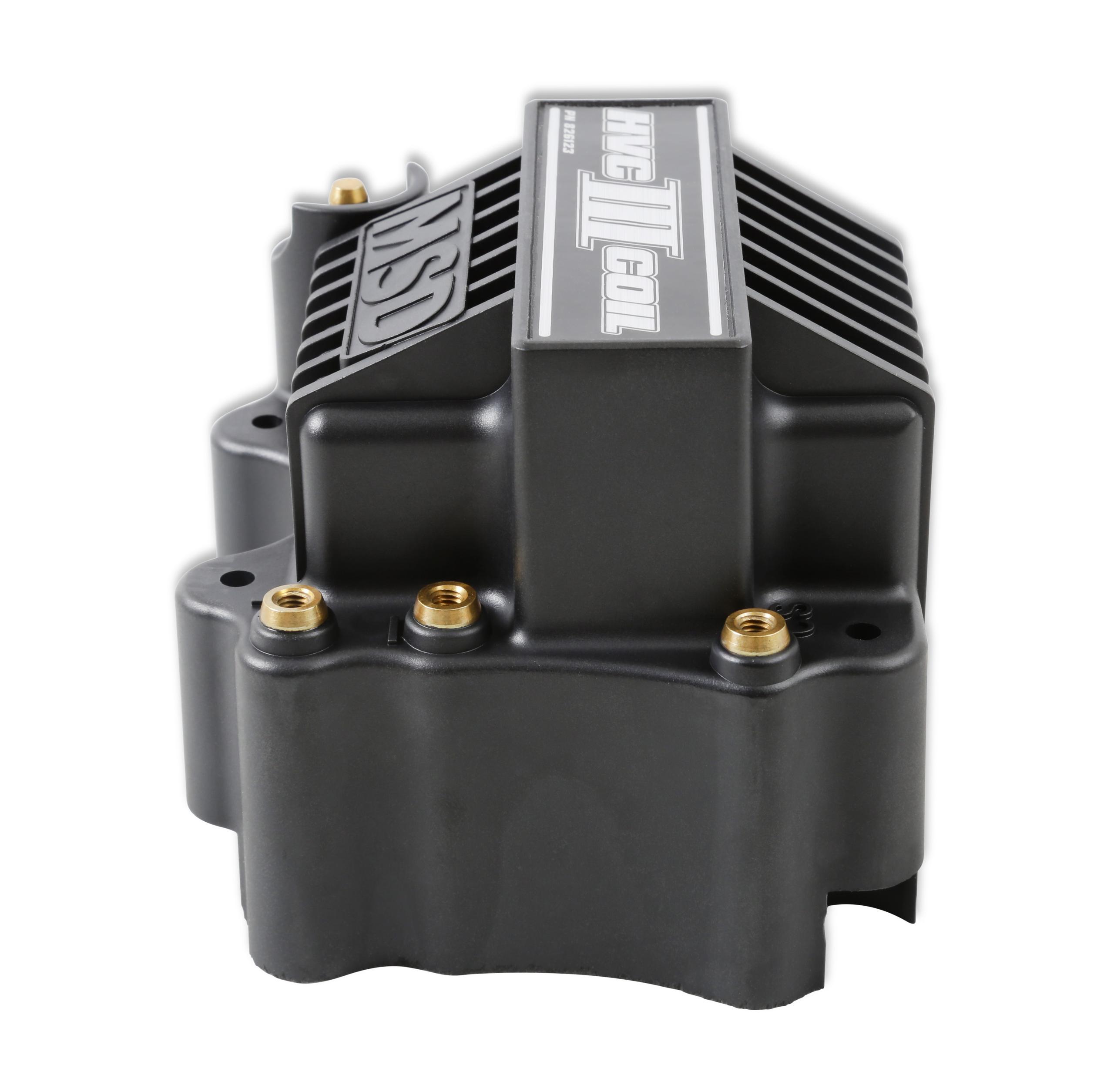

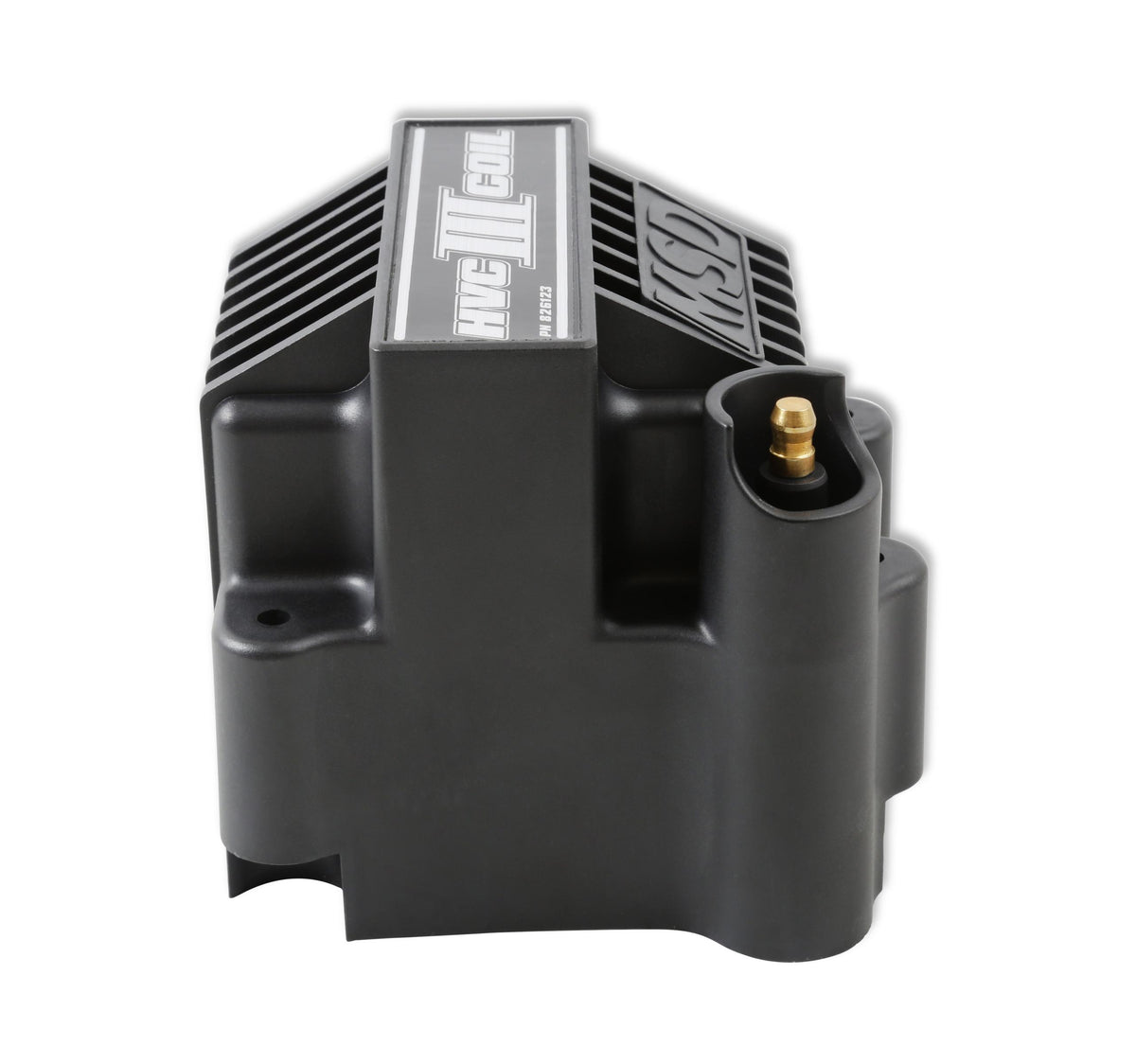

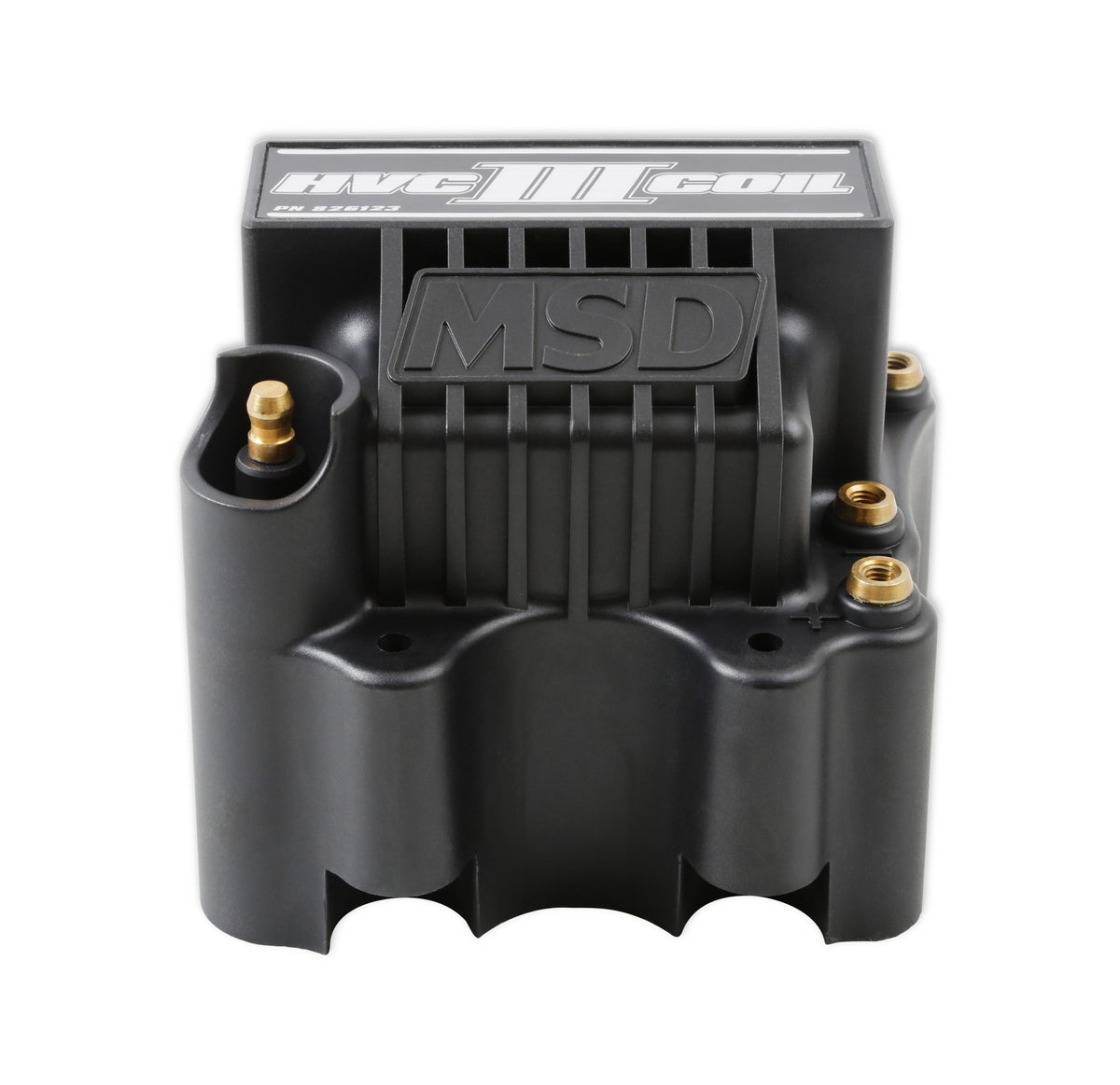

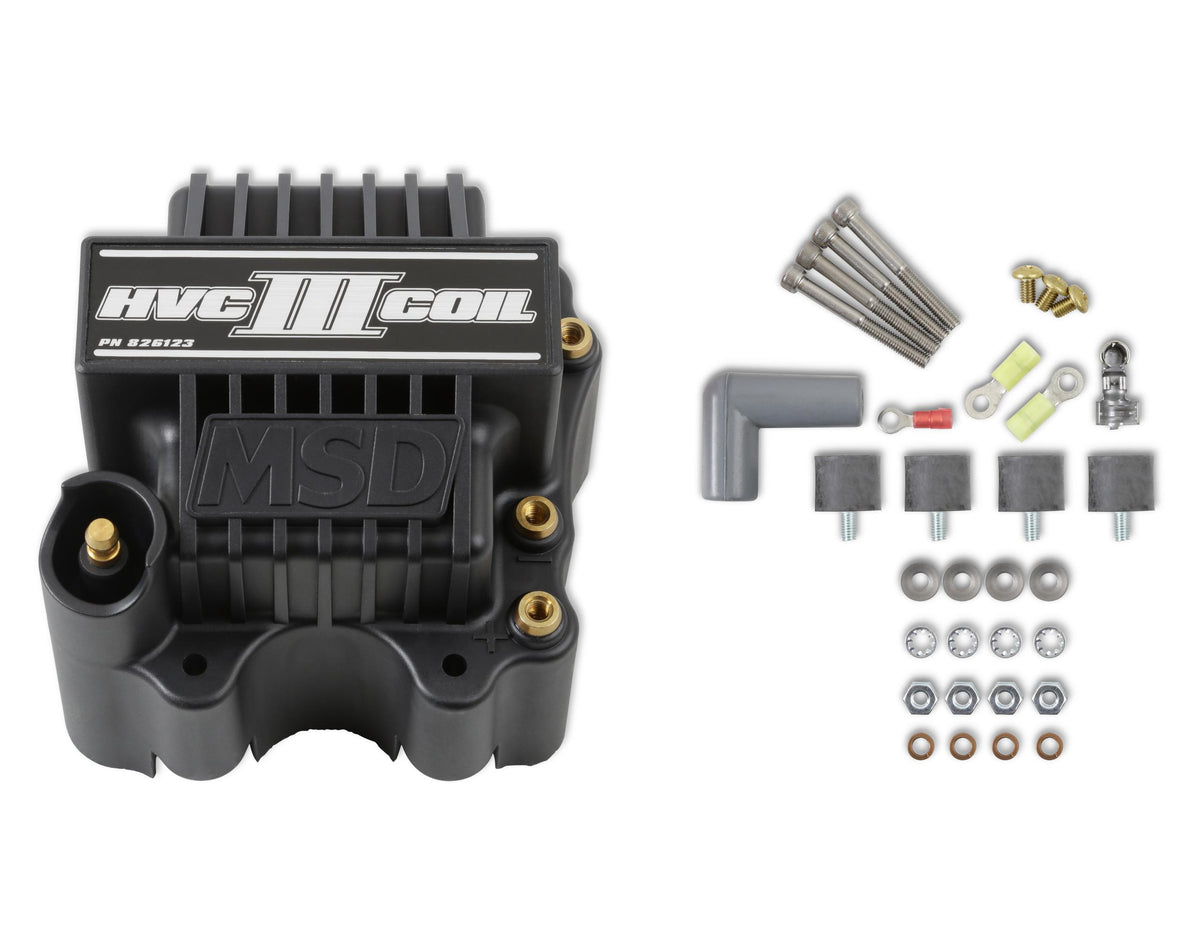

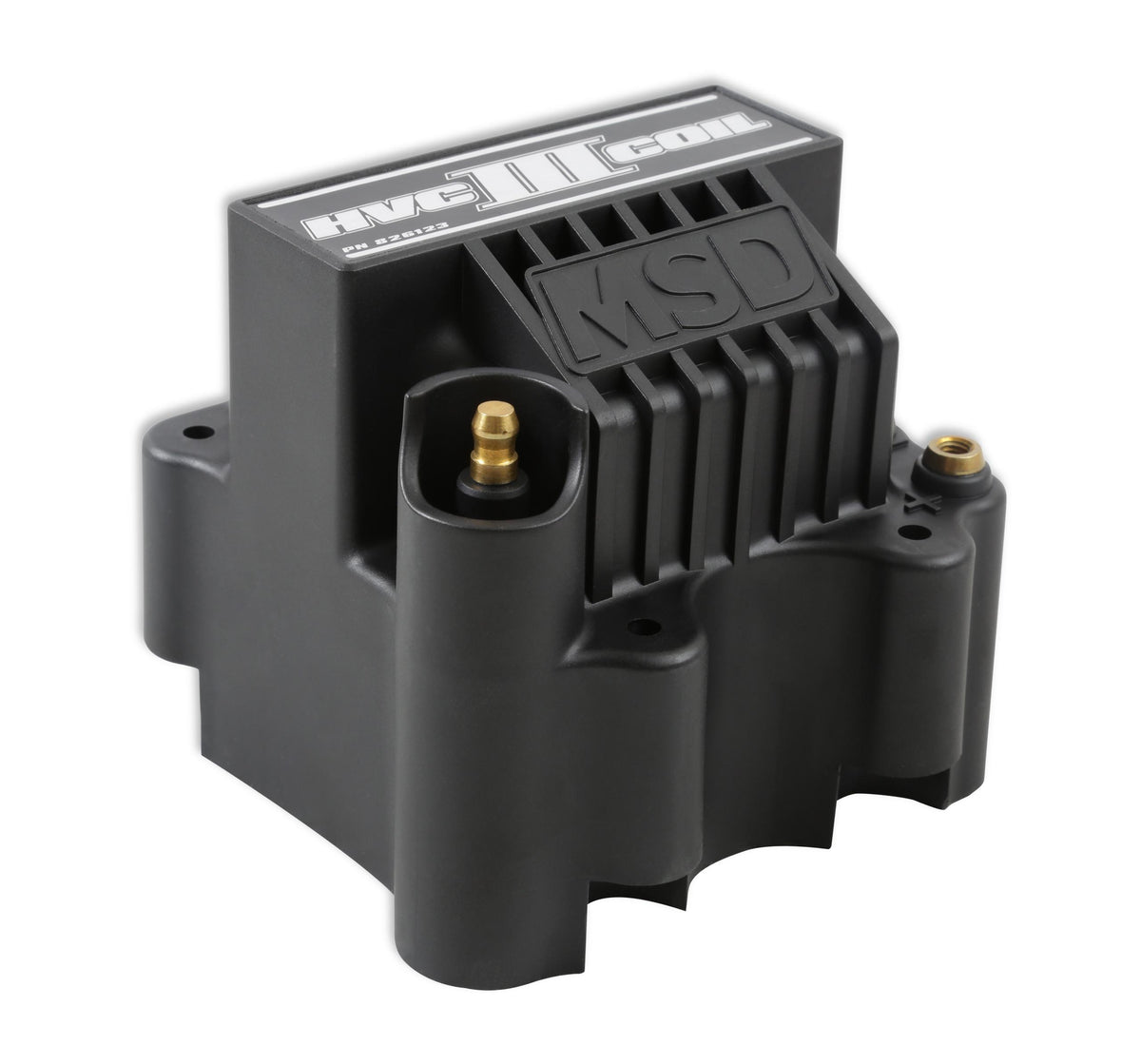

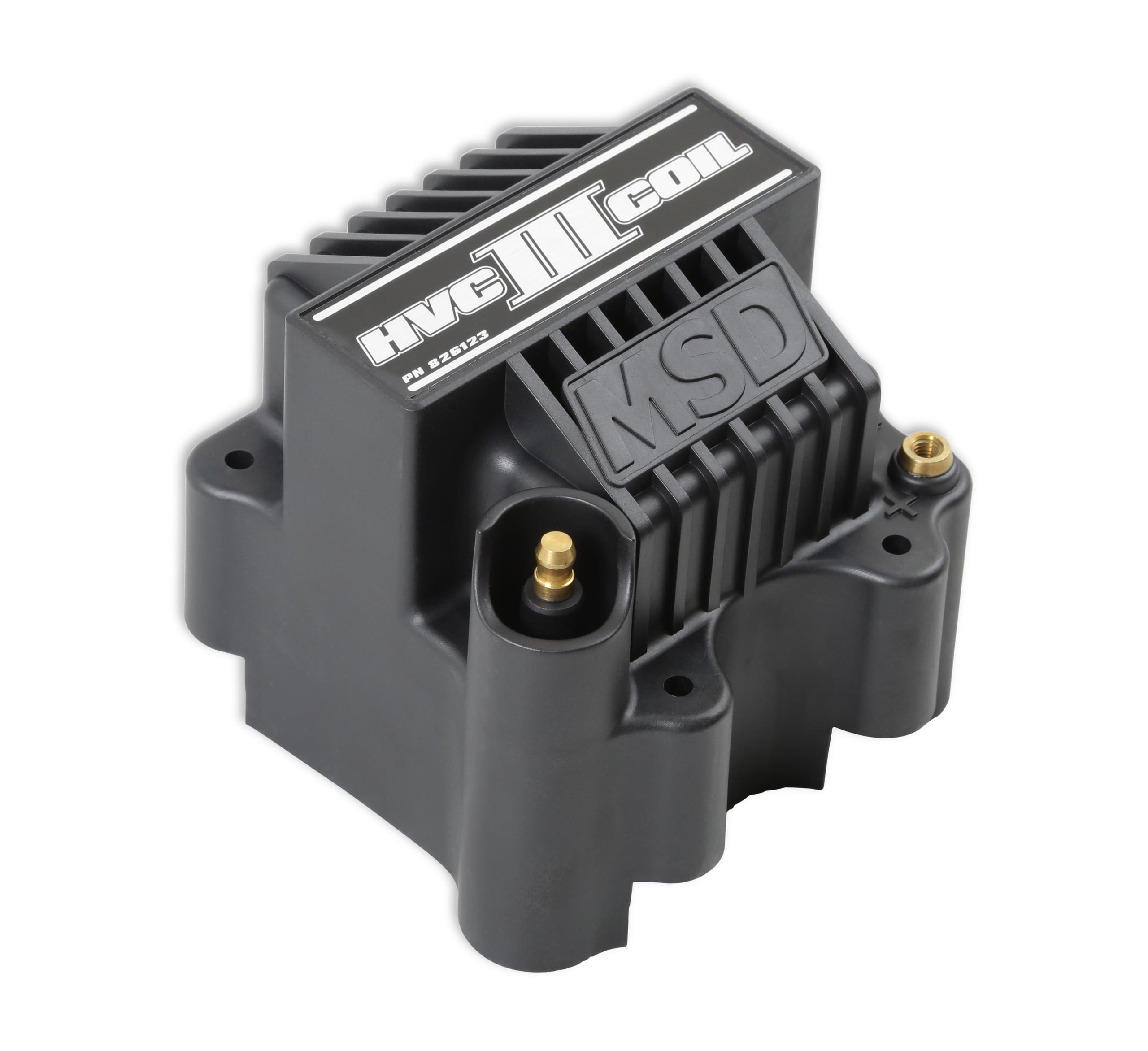

MSD HVC-III Ignition Coil - 826123
HVC-III Ignition Coil
Racing Coil For Use w/MSD 7-8 Series Ignition
0.250 mH Inductance
45000 Max Volt
2 Amp Peak Current
150 uS Spark Duration
70:1 Turns Ratio
Black
Adjustable Output Energy Up To 680 Millijoules
Internally Protected From Damage
Diagnostic Led Detects The Presence Of Faults
On-The-Fly Power Output Selection Wire
Compatible With 8/6/4 Cylinder Engines
Spark Current Sense And Recording For Each Firing
Spark Duration Of Greater Than 250 Microseconds
Rated For Continuous Operation At An Output Of 600 mJ
Operates Between 12- 28V
Starting And Running Down To Six Volts
Programmable Trigger Edge
Reverse Battery Protection

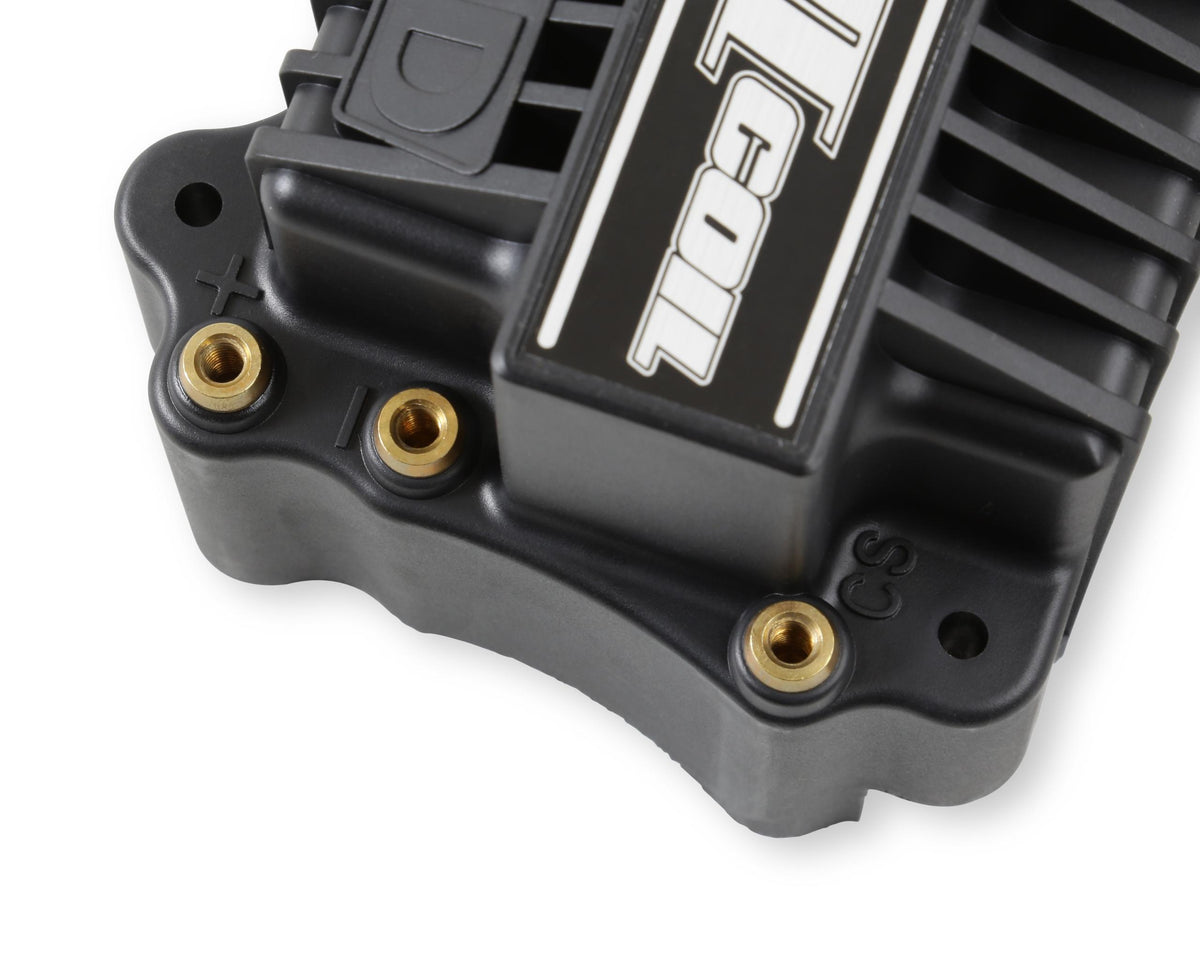

The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
