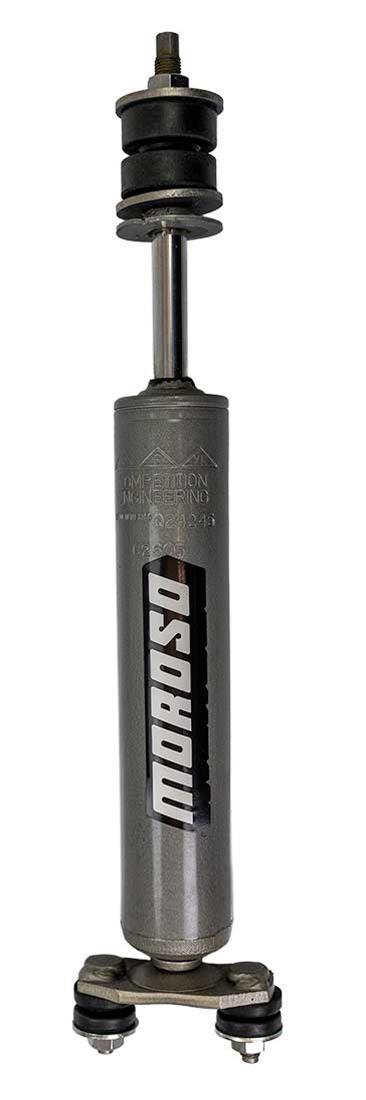

Moroso SHOCK, DRAG, '62-'67 CHEVY II, FRONT, 3 WAY ADJUSTABLE - 26301
Shock, Drag, '62-'67 Chevy II, Front, 3 Way Adjustable
Front Drag Shock
3 Way Adj.
Fits Chevy II
1962-67. Specs: Extended Length
16.50"
Collapsed Length 11.00"
Diameter
1.63"
• Moroso 3-Way Adjustable Drag Shocks are designed to allow the racer to dial-in the race car to meet changing track conditions.
Shock valving plays a very important role in the way your car will perform both during initial launch and throughout the quarter
mile.
• The principle behind our shock absorber design is to allow the front end of the race car to rise rapidly upon initial launch
creating
greater weight transfer and better traction to the rear tires. As the car travels down the track
the front end will gradually descend
to its ride height without unloading the rear tires which is a major cause of wheel spin. Our rear shocks work in conjunction with
our front shocks making the transition from initial launch to top end charge as smooth as possible.
• Moroso Rear Drag Shocks can be adjusted for changing track conditions by simple compressing and turning the shock. For slick
tracks
set to the 50/50 adjustment; on good tracks
set to the 70/30 for better weight transfer.
• Moroso Front Drag Shocks are adjustable in three ratios: 90/10
80/20 and 60/40. These ratios reflect the percentage of force
required to extend and compress the shock absorber. You can quickly change the valve setting by simply compressing the shock
fully and rotating the shaft until the indexing notch mates with the desired setting on the body. It s as simple as twist and click.
• Moroso Rear Drag Shocks are also adjustable in three ratios: 70/30
60/40 and 50/50. These ratios also represent the percentage
of force required to compress and extend the shock unit. Only this time
the first number is compression and the second extension.
These shocks also adjust by compressing them fully and rotating to the desired setting on the body.
