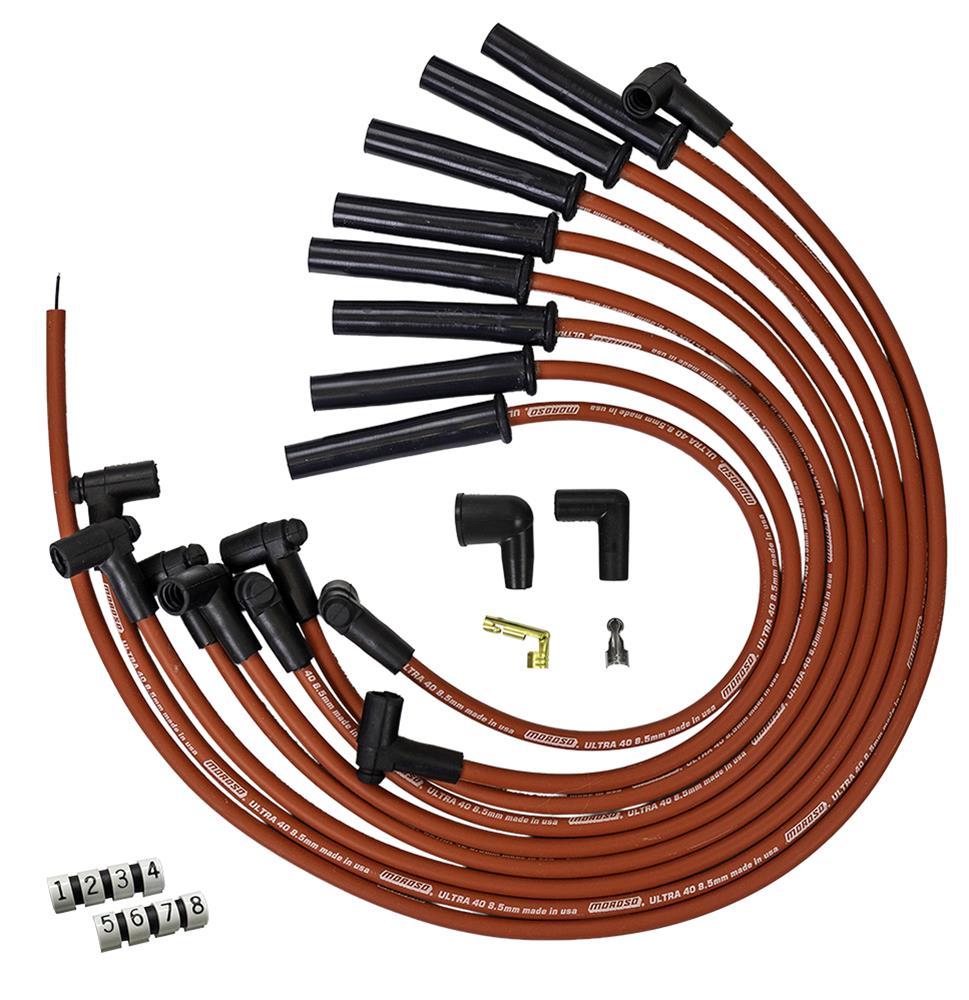

Moroso IGNITION SPARK PLUG WIRE SET ULTRA 40 MULTI ANGLE BOOT, RED,FORD 289,302,351W, HEI STYLE CAP - 73766
Ignition Spark Plug Wire Set, Ultra 40, 8.5MM, Multi-Angle Boot, Red, Ford 289, 302,
351W, HEI-Style Cap
Moroso wire sets equipped with Multi-angle Spark Plug Boots allow you to bend the spark plug boot up to 45° to avoid
clearance issues during installation. This allows you to avoid headers
valve covers and other components to achieve your
preferred wire routing. Moroso Ultra 40 is the standard in high-performance ignition wire! Ultra 40 is available in 8MM
8.5MM & 8.65MM diameters
and rated at 40 ohms per foot. Optimized for EMI/RMI resistance
Moroso Ultra 40 is used in the highest levels of racing
including NHRA Top Fuel
NASCAR Cup Series & more. Sets are available in blue
red or black
with some sets available with
exterior sleeving for additional heat protection. Ultra 40 wires are proudly made in U.S.A. and are offered in vehicle-specific
custom-fit sets
as well as universal sets allowing you to tailor the install for your preferred fitment!
• Moroso Ultra 40 wire
8.5MM wire with 40 ohms of resistance per foot
• Multi-angle spark plug boot can be bent up to 45°; silicone plug boots protect against high-heat situations
and encase sure-grip
snap-lock terminals for positive connections
• Efficient nickel-copper alloy spiral-wound conductor
wound around a conductive
latex-coated
heavy fiberglass
core
• Heat-resistant dual-layer outer jacket with integrated pull tape for added pull strength
• Maximizes energy transfer and minimizes electromagnetic interference (EMI) and radio frequency interference
noise
• Approximate overall wire lengths; Cyl #1 - 21.375"
#2 - 25.875"
#3 - 27.875"
#4 - 33.375"
#5 - 19.375"
#6 - 24.375"
#7 - 27.375"
#8 - 31.625"
Coil wire
36"
• Available in black (No. 73765) and red (No. 73766)
