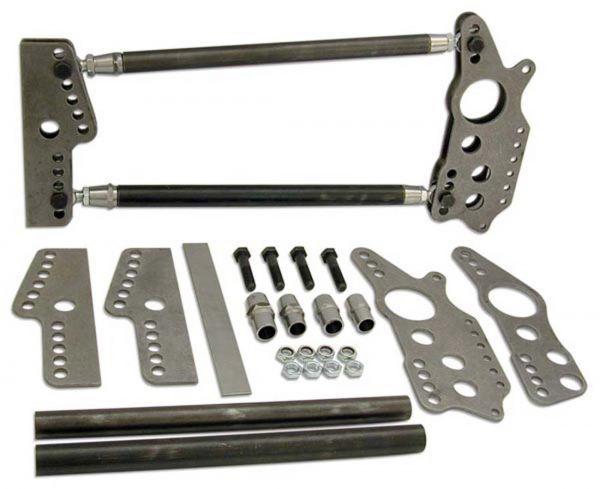

Moroso 4-Link Kit, Magnum - C2028
Includes 1⁄4" thick housing & frame brackets (most competitors kits have 3⁄16" brackets) with 5⁄8" mounting holes on a 21" radius, with mounting holes for Wheel-E-Bars™, sway bar and shock mounting as well as 1-1⁄4" holes for additional tube gusseting. We use 1-1⁄4" O.D. x .095" wall top tube and a 1-3⁄8" O.D. x .095" wall bottom tube to handle the shock loads without flexing.
• All hardware and mounting instructions to ensure an effortless installation
• 1⁄4" thick Axle Bracket w/ integral shock mounting holes saves fabrication time by eliminating separate shock brackets
• Heavy Duty chrome moly steel link tubes and threaded tube inserts for added strength
• 21" mounting radius
• Computer machined threaded tube ends
• 1-1⁄4" holes provided in brackets for additional gusseting
• For 3" Axle Tubes
• Includes 4 left & 4 right-hand chrome moly spherical rod ends
• Welding required
• Sold in pairs
Additional Recommended ItemsPart # AVAILABLE OPTIONS
C3421 Magnum Series Front Bracket
C2031 Magnum Series Diagonal Link
C2024 Magnum Series Wishbone
