Morimoto Sealed Beam: Morimoto Sealed4 (4x6) - LF267
Just when you think: You've done your research and come across every last option in the 4x6" Sealed Beam LED market, these should catch your attention. While it's true there's only so many ways you can package a set of low and high beam LED-based optics into a small rectangular headlight; Morimoto's Sealed4 pulls it off in the most functional and attractive setup possible
Proprietary: The Morimoto Sealed4 is all-new, all-original from the ground up. Until now, there were basically three distinct products on the market. You have the high-end J.W. Speaker 8800 at the top of the totem poll. Then there are the cheap J.W. Speaker knock-offs, re-branded by companies A,B, and C…..and last but not least you have the options like the Truck-Lite reflector-based 4x6" lights...again, re-branded by company X,Y, and Z. The Morimoto Sealed4 LED headlights are unlike anything else on the market.

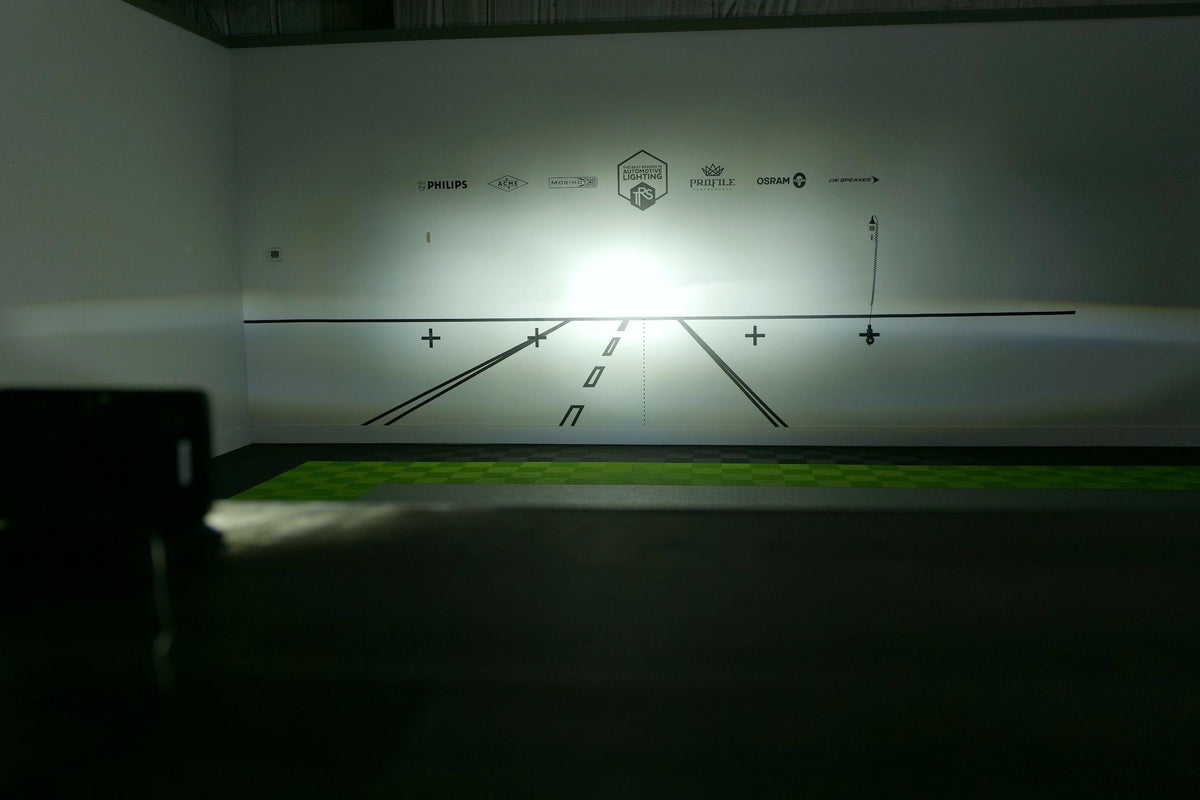

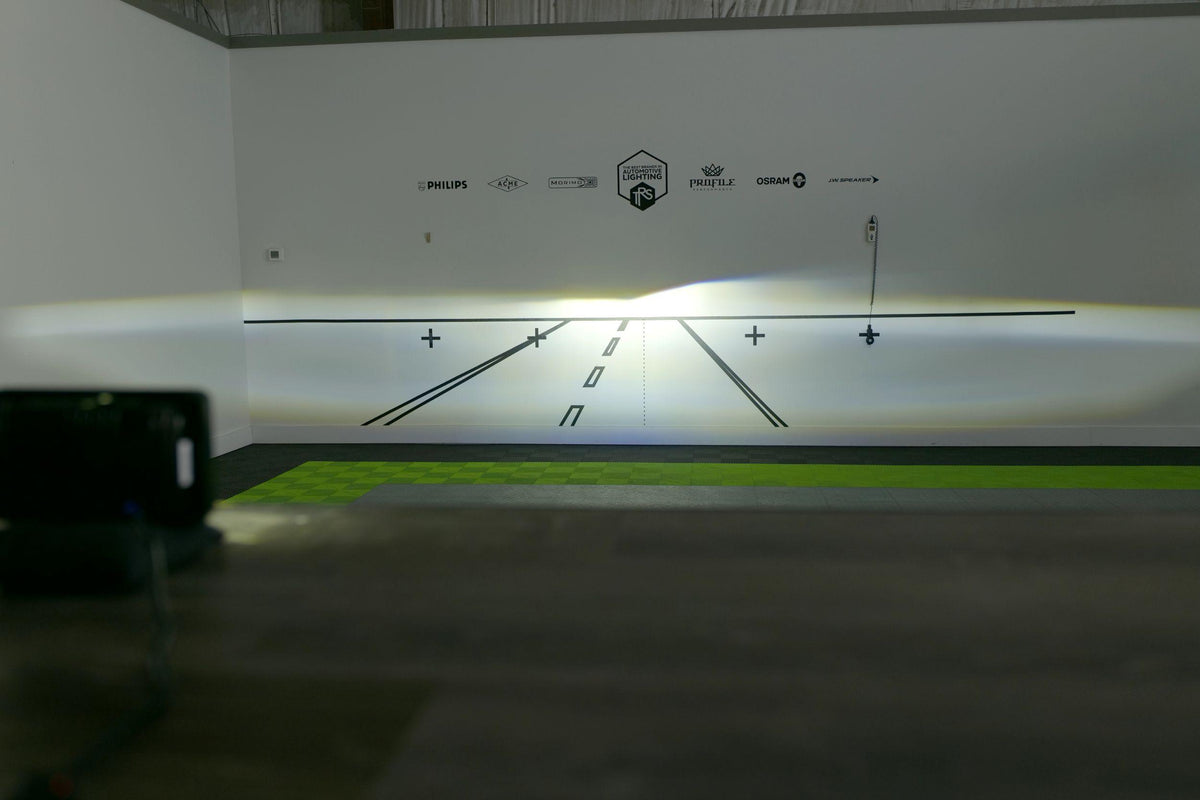

Output: In low beam mode, Nichia NCSW170C Series LED's paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes 2400 lumens on the road in a properly LHD-stepped beam pattern. In high beam mode, the Sealed4 illuminates an extra set of optics, upping the overall output to 4300 mosquito-melting lumens there.
Quality: No expense was spared when designing the Sealed4. The heart of the headlight is powered with high quality LEDs from Nichia-Japan. These aren't cheap emitters to begin with. Your classic car has already withstood the test of time and the UV-coated polycarbonate lens will take a another couple decades worth of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink. A special PWM LED driver resides inside of the headlight to keep the LED's running at their peak intensity, even during prolonged periods of use.

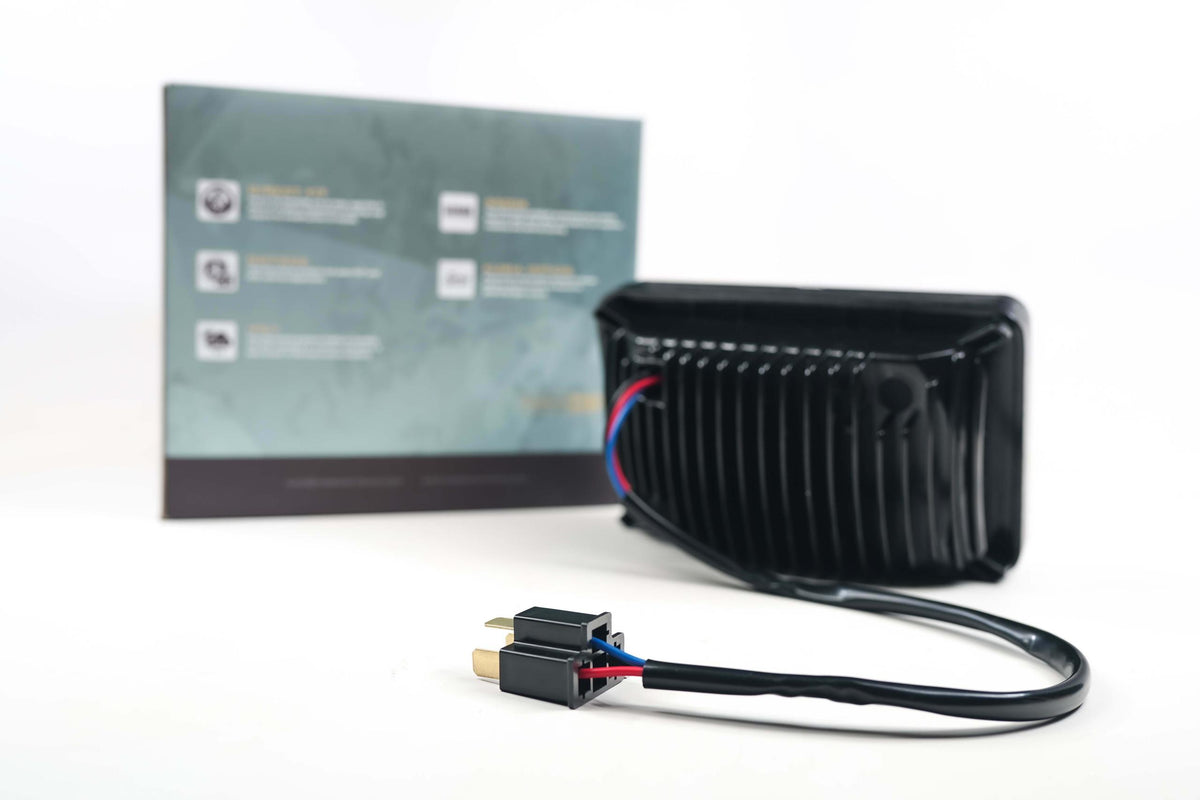

4x6" Standard: Designed to replace all 4x6" rectangular headlights, these are cross compatible with other sizes, found in the compatibility section below. The Sealed4 offers full low and high beam functionality. They come standard with H4 3-pin male inputs and should be plug and play on most classic cars / trucks.
Trusted: For more than a decade, we've worked hard to earn our killer reputation. Car guys world-wide know that TRS carries the internet's best selection of high performance automotive and powersport lighting products at the best prices, and we've got the best, most knowledgeable team of real enthusiasts to help back it up. If we sell it, then you bet we've put it to the test on our own cars, trucks, and bikes. Need a recommendation on parts for your project? Got a tech question? Wholesale inquiry? Contact us!
Material:::UV-Coated Polycarbonate (Lens), Powdercoated Aluminum (Housing)
TRAFFIC PATTERN:::LHD / DOT
INPUT VOLTAGE:::9-36V DC
INPUT CONNECTOR:::H4 Male + T-Taps for DRL
Power:::20w Low, 35w High
Intensity:::2,400lm Low, 4,300lm High
Light Source:::12x Nichia NCSW170C, 4x Philips Luxeon 3535L
Color Rating:::5000K (Pure White)
Lifespan:::Approx. 10,000 hours
Headlight:::1x Morimoto Sealed4 Bi-LED (Black)
WIRING:::H4 Male Connector + DRL wiring
Warranty:::5 Years
