Morimoto 4Banger 2.0 NCS LED Pods (Combo / White / Set) - BAF003.2

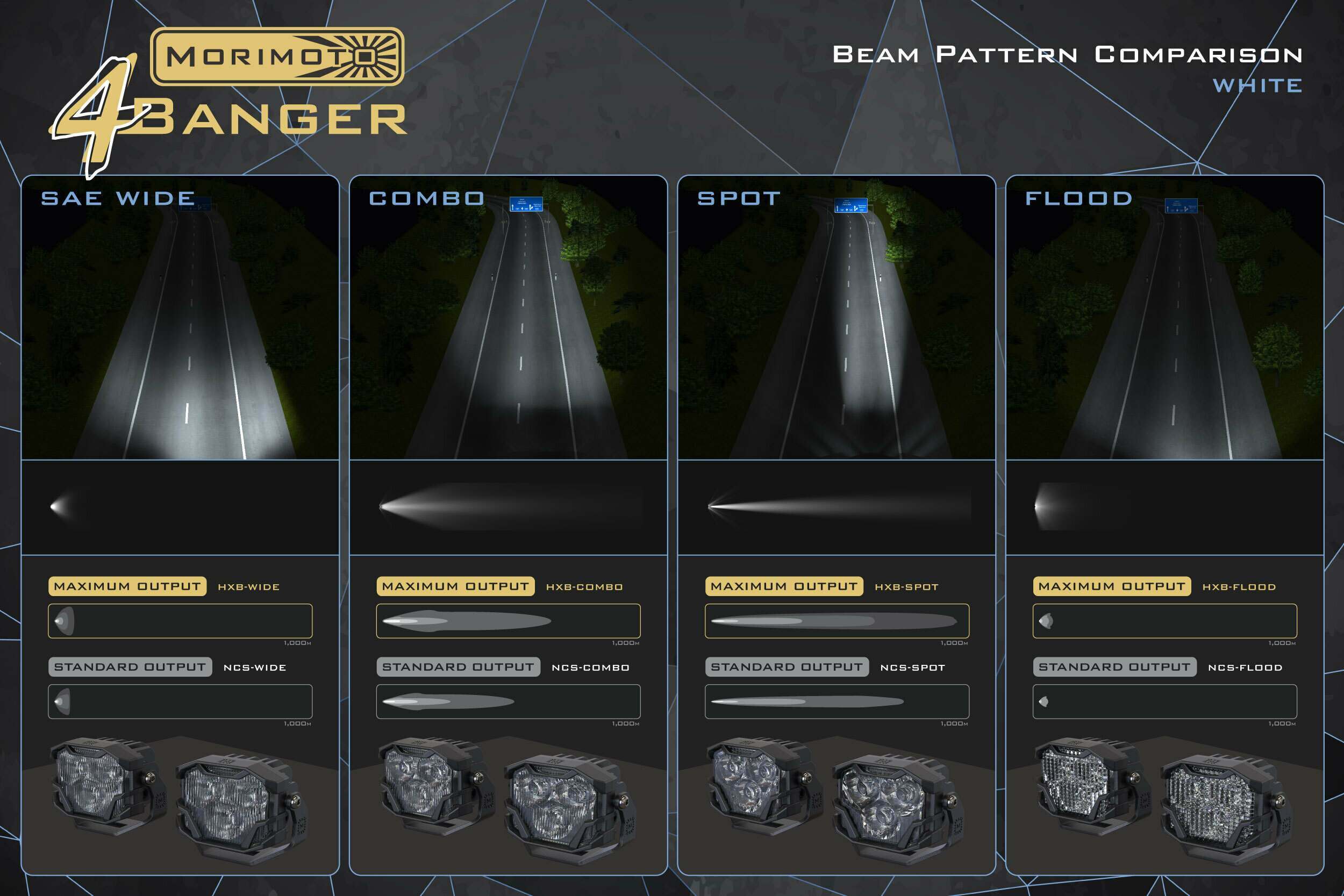

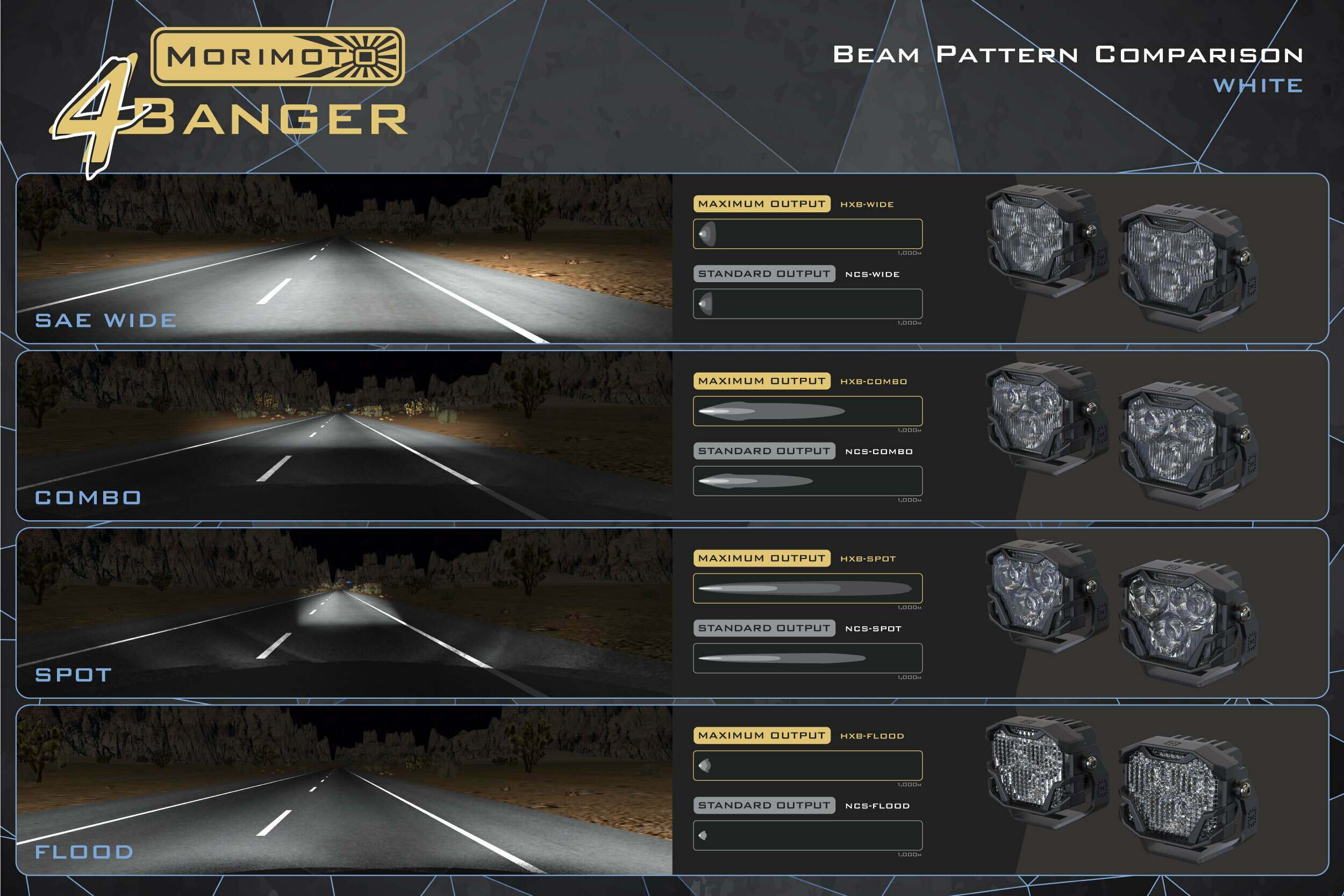

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patented line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level. NCS Combo Beam: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger HXB Combo is an excellent aid to any set of high-performance headlights. Form Meets Function: The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable fitment when paired with Morimoto's flush mount or ditch light mounting kits, which are available for today's most popular trucks and SUVs. Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with four industry-leading beam patterns to suit every need: SAE wide/Fog, Spot, Flood, and Combo. Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance. Bolt-On: Morimoto offers a variety of application-specific mounting bracket kits for A-Pillars that make them bolt-on for many of today's most popular trucks. We also offer universal U-bracket mounts, and an industry-leading universal flush mount bracket too. Check out the full lineup for details on what's available for your application. Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. Deutsch DT 2-Pin female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
https://www.youtube.com/watch?v=kIaEiZW_DeU
- Note: These specifications are per pod / each!
- Intensity (White): 55,500 Cd (Post Warm-Up) (555lux @ 10m)
- Intensity (Yellow): 38,850 Cd (Post Warm-Up) (384lux @ 10m)
- Input: Proprietary Overmolded Deutsch DT 2-Pin
- Power (stabilized): 15.6w
- Current: 1.5A @ 13.5V DC
- Peak Luminosity (raw): 1,350lm
- Dimensions: 82mm W, 67mm H, 60mm D
- Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
- Light Source: 3x Nichia NCSY131F or NCSW131F
- Universal: With Included U Brackets
