Here is a great new "PATENT PENDING" part that MMR spent most of last year testing. Ford is notorious for tensioning chains on the wrong side and the 5.0 coyote was no different. Long story short the chains should always be tensioned on the "slack" or loose side. Unfortunately Ford missed the boat again so to speak, and the driver side cylinder head on ALL coyote 5.0 engines are tensioned on the wrong side. Many will ask "what does it do?", the answer is it allows for a large sweep (5-6 degrees) of uncontrolled timing and racheting of the cam which is very hard on timing chains and allows for erratic cam timing, for those that have ever degreed a modular engine some will notice that it is very hard to make the cams repeat after a few revolutions, this is one reason.

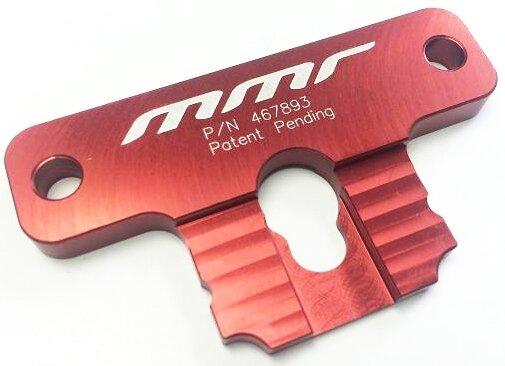

This new part from MMR fixes the problem by essentially flipping the tensioner upside down with a simple billet bracket and also helps eliminate secondary chain failure. The kits includes the MMR billet bracket and ARP hardware. The Cam sprockets must be removed for installation, otherwise it is a very easy install and should be considered for any serious build.
Does Not fit 2018+ 5.0. 2018 5.0 Models please use PN#468995
Like all MMR components this part is Proudly made in USA!
Provisional Patent Number 62/647,350
