This Billet Oil Filter relocation kit from MMR is 100% USA Made. No Cheap Chinese parts with Pipe Threads that leak. This is a professional kit for Heavy duty street use, Road racing and drag racing. The adapter replaces the ENTIRE factory oil filter mount which is great for clearance. These High Quality adapters feature AN O ring openings for a Leak free install. Each adapter is Black Anodized and also features a 1/8NPT and 1/4 NPT pressure port for guage sensors or oil feed lines to Turbochargers and Superchargers. Great for engine swaps and kit cars.
* Fits ALL 5.0 / 5.2 GT350 Coyote Blocks (Mustang and F150)
* INCLUDES -10AN OIL FITTINGS
* Includes MMR Oil Filter Mounting Bracket and Hardware with -10 AN fittings (also has 1/8npt and 1/4npt Oil Pressure fittings)
* Laser etched inlet and outlet for easy identification
* Includes 6 FT Braided Hose

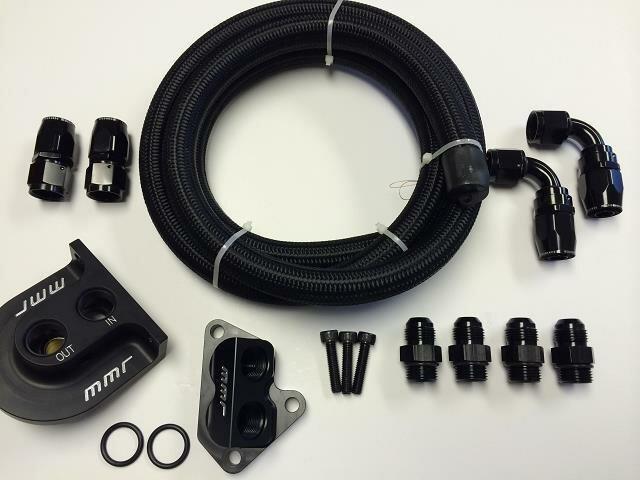

* ALL Parts Shown in picture are INCLUDED
CONNECTIONS: ALWAYS CONNECT OUT to IN and IN to OUT- NEVER CONNECT OUT TO OUT or IN to IN - this will result in ZERO oil pressure!!!!!
The stock filter does not work. Requires a 13/16-16 in thread filter.
