PRODUCT FEATURES
Direct fit for the 2016+ Chevrolet Camaro SS
Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
Helps reduce carbon buildup on intake valves
Patented billet 6061 aluminum can sealed with Viton™ O-rings
Installs in under 30 minutes
Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
Includes pre-molded hoses with factory quick-disconnect fittings for simplified installation
Defends intake system and essential engine components from oil blow-by
CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
Catch can has a 3 oz. capacity for longer serving intervals
Internal air diverter increases air turbulence to improve oil separation
Helps maintain proper octane levels to reduce potential detonation
Filter and can are fully serviceable
Mishimoto Lifetime Warranty
Patent #US D884,760 S
DESCRIPTION
The 6.2 liter LT1 is an animal of an engine, but like any engine, it does not enjoy oil in its intake. Enter Mishimoto’s Camaro SS baffled oil catch can! Designed to protect the LT1’s intake from becoming an oil slick, this catch can mounts in-line with the PCV system to separate oil and air using a 50-micron bronze filter. The catch can is mounted away from most intake and supercharger kits to help leave room for future modifications
This new GM LT1 engine features direct fuel injection, which is great for creating an efficient burn but allows for carbon buildup on the intake valves. Engines with conventional port injection have fuel injected into the intake runners, which helps to wash carbon deposits off the valves. This isn’t the case with the Camaro’s LT1, making the addition of a catch can vital in preventing increased carbon buildup.
Mishimoto’s 2016 Camaro SS catch can kit features Mishimoto’s 2-port Compact Baffled Oil Catch Can, which features a bronze filter and internal baffle to better separate the oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. To back up Mishimoto’s superior craftsmanship, each 2016 Camaro SS catch can kit comes with the renowned Mishimoto Lifetime Warranty!
Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

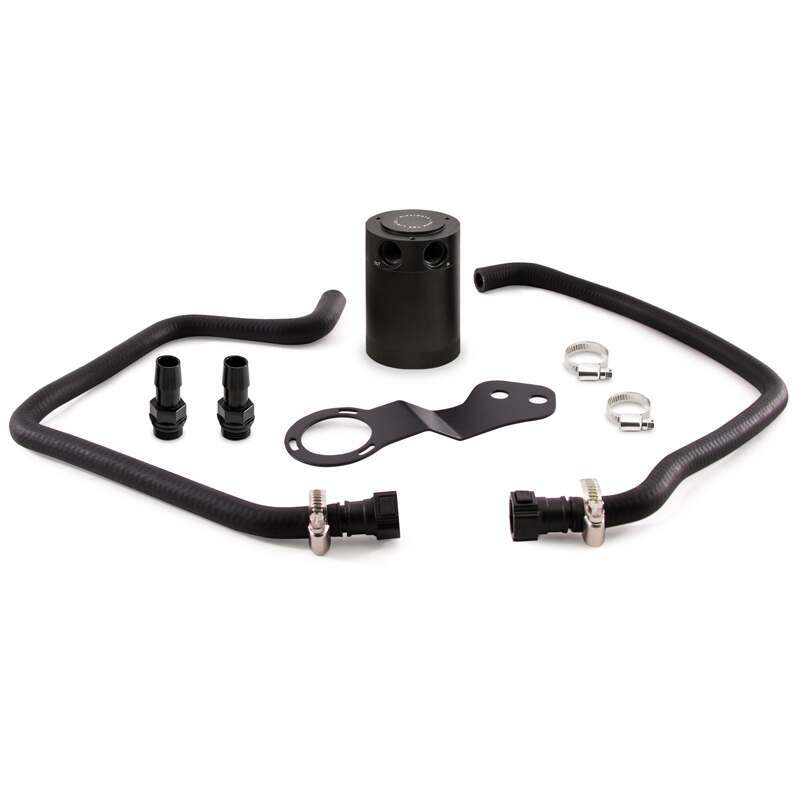

PURCHASE INCLUDES
(1) Compact Baffled Oil Catch Can
(1) Application-Specific Mounting Bracket
(2) Direct-Fit Hoses with Pre-Installed Factory Quick-Disconnect Fittings
(2) 1/2" Aluminum Barbed Fittings
(2) Worm Gear Clamps
Mounting Hardware
Mishimoto Lifetime Warranty
NOTES
After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.The catch can kit can be installed without removing the intake manifold, by attaching the supplied silicone hoses directly to the manifold.This product will fit with convertible models, the stock strut tower bar must be partially removed to install the catch can bracket.
