FEATURES
Direct fit for the 2015+ Ford F-150 and 2017+ Ford Raptor
45% increase in coolant capacity over the stock heavy-duty radiator
55% increase in surface area over the stock heavy-duty radiator
63% increase in core volume over the stock heavy-duty radiator
Includes new quick-disconnect O-ring for a leak-free installation
Full aluminum construction with durable, TIG-welded end tanks
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

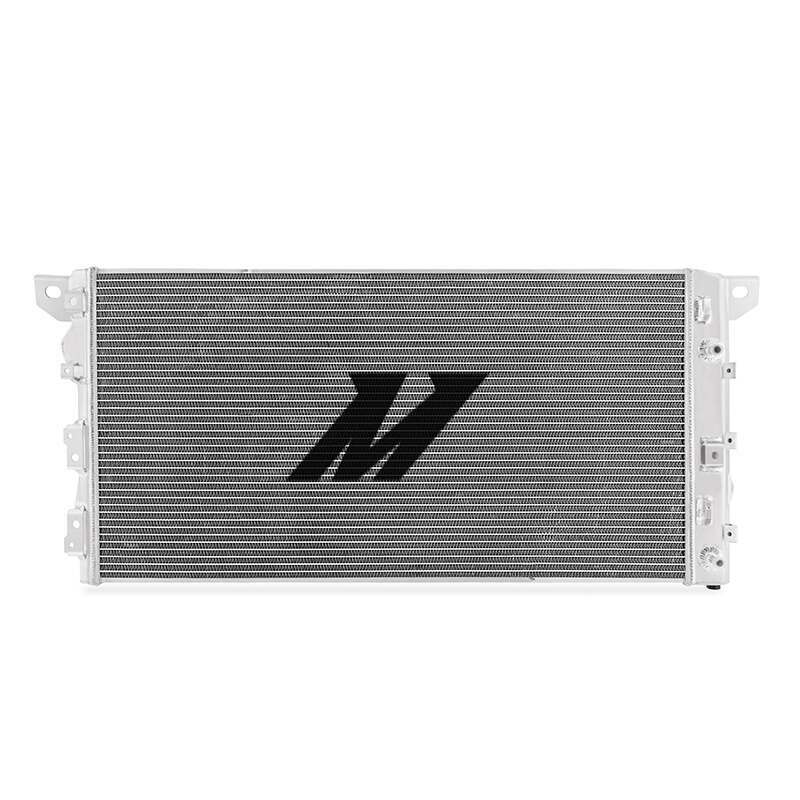

The Mishimoto performance aluminum radiator for the 2015+ Ford F-150/2017+ Ford Raptor is the ideal upgrade over the stock radiator.
Whether your 2015+ Ford F-150 or Raptor is a daily driver, jobsite hauler, track destroyer, or all three, you should never overlook the importance of installing an upgraded radiator. The 2015+ F-150 came equipped from the factory with two different radiators, a light-duty version and a "heavy-duty" version that’s shared with the Raptor. However, no matter which radiator your truck has, you’re leaving a lot of potential on the table.
The Mishimoto 2015+ F-150 radiator is designed and engineered to maximize cooling efficiency. Our radiator holds 45% more coolant, boasts a 55% increase in surface area, and has a 63% increase in core volume over the heavy-duty stock radiator. So even if you have the largest available Ford radiator, you can squeeze even more performance out of your F-150 or Raptor. The internal transmission cooler in the Mishimoto radiator is also larger than the transmission cooler found in the stock radiators, which will help your transmission run cooler too.
The CNC-machined inlet and outlet of the Mishimoto radiator, combined with the included quick-disconnect O-ring, ensure a precise and leak-free fit. Like every Mishimoto Performance Radiator, this 2015+ Ford F-150/2017+ Ford Raptor radiator is constructed from durable, TIG-welded aluminum and is a direct fit with no cutting or other modifications. Of course, this radiator is protected by the Mishimoto Lifetime Warranty, so you never have to worry about buying another radiator again.
Material Aluminum
Engine Codes 2.7L EcoBoost V6
3.5L Cyclone V6
3.5L EcoBoost V6
3.5L EcoBoost V6 High-Output
5.0L Coyote V8
3.3L Cyclone V6
Fits 2015+ Ford F-150 w/ 2.7L EcoBoost V6
2015+ Ford F-150 w/ 3.5L EcoBoost V6
2017+ Ford Raptor w/ 3.5L EcoBoost V6 High-Output
2015+ Ford F-150 w/ 5.0L Coyote V8
2015–2017 Ford F-150 w/ 3.5L Cyclone V6
2018+ Ford F-150 w/ 3.3L Cyclone V6
Rows 3 Coolant Capacity 4.4 gal
Purchase Includes (1) Mishimoto Radiator
(1) O-Ring
(1) Mishimoto Magnetic Drain Plug
Mounting Hardware
Mishimoto Lifetime Warranty
Core Length 34.6"
Core Height 17.89"
Core Thickness 2.04"
