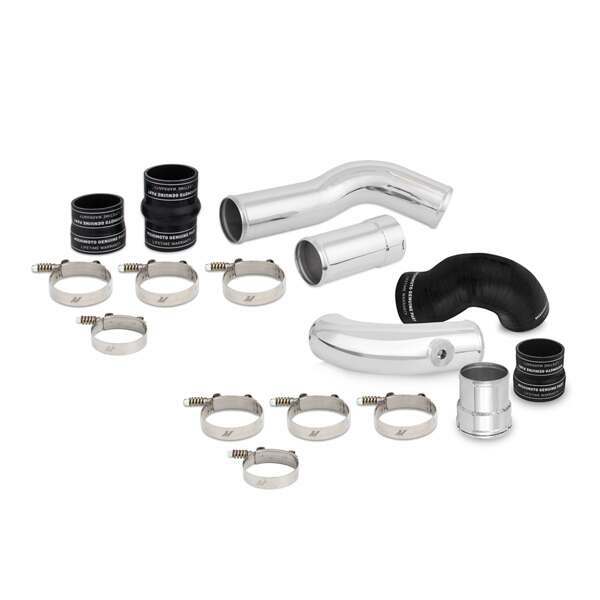

The Mishimoto MMICP-F2D-11KBK Intercooler Pipe & Boot Kit for your 2011-2016 Ford 6.7L Powerstroke increases reliability, durability and performance. This Intercooler Pipe & Boot Kit upgrades both the factory hot and cold pipes at the same time! The pipes are constructed of mandrel-bent aluminum with a polished finish and eliminate restrictive bends in the factory pipe, allowing for improvements in airflow, power, and EGTs. The engineers at Mishimoto designed CNC-machined quick-disconnect flanges and IAT sensor housing to allow for an easy install in less than two hours.
This intercooler pipe and boot kit is direct fit, retaining all factory emissions components and does not require the use of a tuner. This kit includes Mishimoto Silicone Boots with DuraCore™ technology. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto Silicone Diesel Boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.
To add even more reliability this kit includes Mishimoto Constant-Tension T-Bolt Clamps for accurate and consistent holding power. This pipe and boot kit is the perfect addition to the Mishimoto 6.7L Powerstroke Performance Primary Radiator. It is made in the USA and includes the Mishimoto Lifetime Warranty.
Features:
DuraCore Silicone Boots
Includes Both Hot & Cold Side
Mandrel-Bent Aluminum Construction
Specifications:
2.75” (Hot-Side Turbo Section)
3.0” (Hot-Side Intercooler Section)
3.0” (Cold-Side Intercooler Section)
3.5” (Cold-Side Butterfly Valve Section)
(1) 2.75” Constant-Tension T-Bolt Clamp
(5) 3.25” Constant-Tension T-Bolt Clamps
(1) 3.5” Constant-Tension T-Bolt Clamp
(1) 4.0” Constant-Tension T-Bolt Clamp
Boot 1: 2.75” to 3.00”
Boot 2: 3.00”
Boot 3: 3.00"
Boot 4: 3.00" to 3.50"
Kit Includes: (2) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange
(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing
(1) Aluminum Intercooler Pipe
(4) Silicone Boots with DuraCore™ Technology
(8) Constant-Tension T-Bolt Clamps
(2) Aluminum Mishimoto "M" Logo Badges
Mishimoto Lifetime Warranty
Installation Notes:
The factory O-ring must be removed from the factory pipe and installed in the Mishimoto CNC-machined factory-style coupling in order to create a proper seal.
27 in-lbs (3N*M) recommended for all Mishimoto T-Bolt and Constant-Tension T-Bolt Clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
LIFETIME WARRANTY
Mishimoto Performance (MP), warrants all of its products under its 'no questions asked' limited lifetime warranty policy. Regardless of the defect in product, Mishimoto will replace the original product. Warranty claims must be accompanied by the original sales receipt from an authorized dealer. A trained professional should install all MP products. Any issues with compatibility or installation should be addressed before attempting to install the product. The purchaser's remedy for breach of this limited warranty, exclusive of all other remedies provided by law, is expressly limited to repair or replacement of any part or parts. All products returned for warranty consideration must be returned to MP with all transportation expenses prepaid.
MP shall not be responsible for damages to its products or injury to persons using the products in any manner that would constitute improper operation, including but not limited to: incorrect opening of radiator pressure caps, burst hoses, unintended application or usage not intended by MP, negligence, improper installation, or any other use that may cause damages or injury. MP shall not be responsible for injury or harm to persons or property when caused by persons or vehicles using its products.
Accident Protection
Mishimoto, under its no questions asked warranty policy, will provide a warranty for all claims including vehicles involved in accidents. Warranty claims must include pictures of the accident and an official police report, and must be within three months of the accident.
