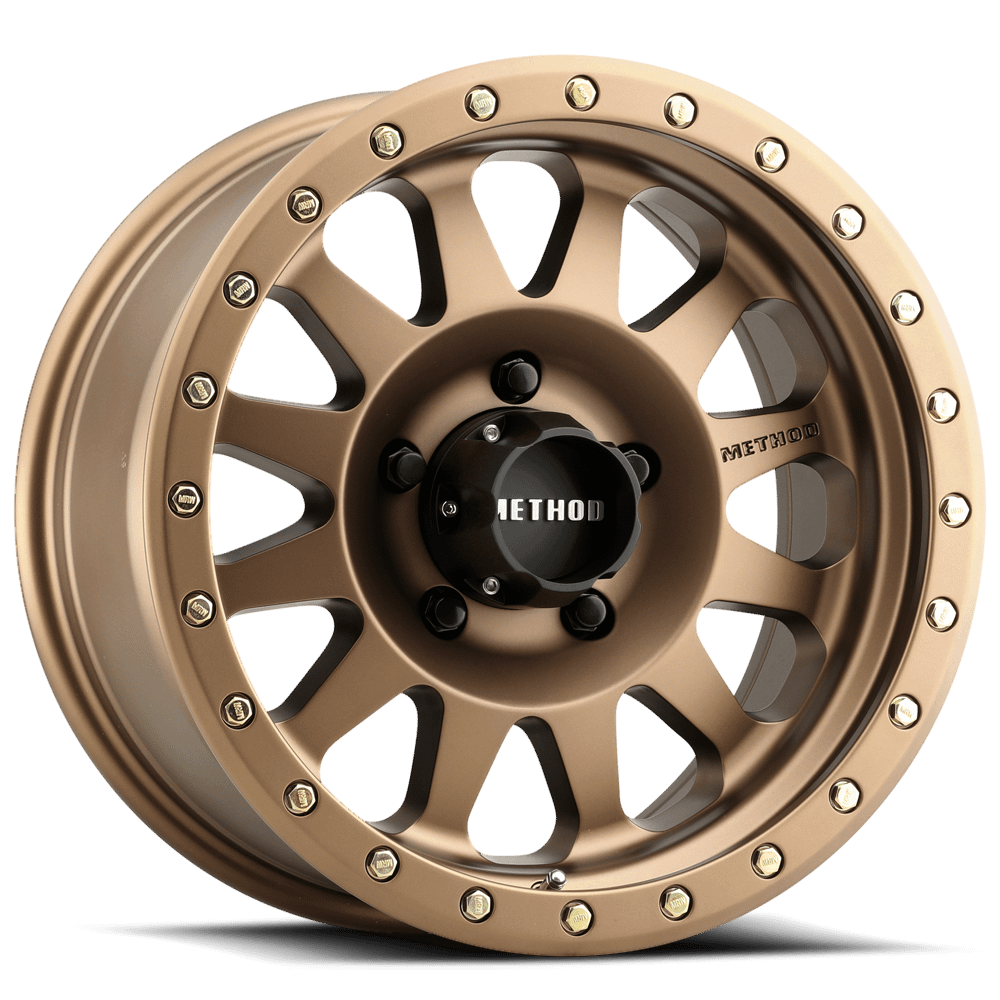

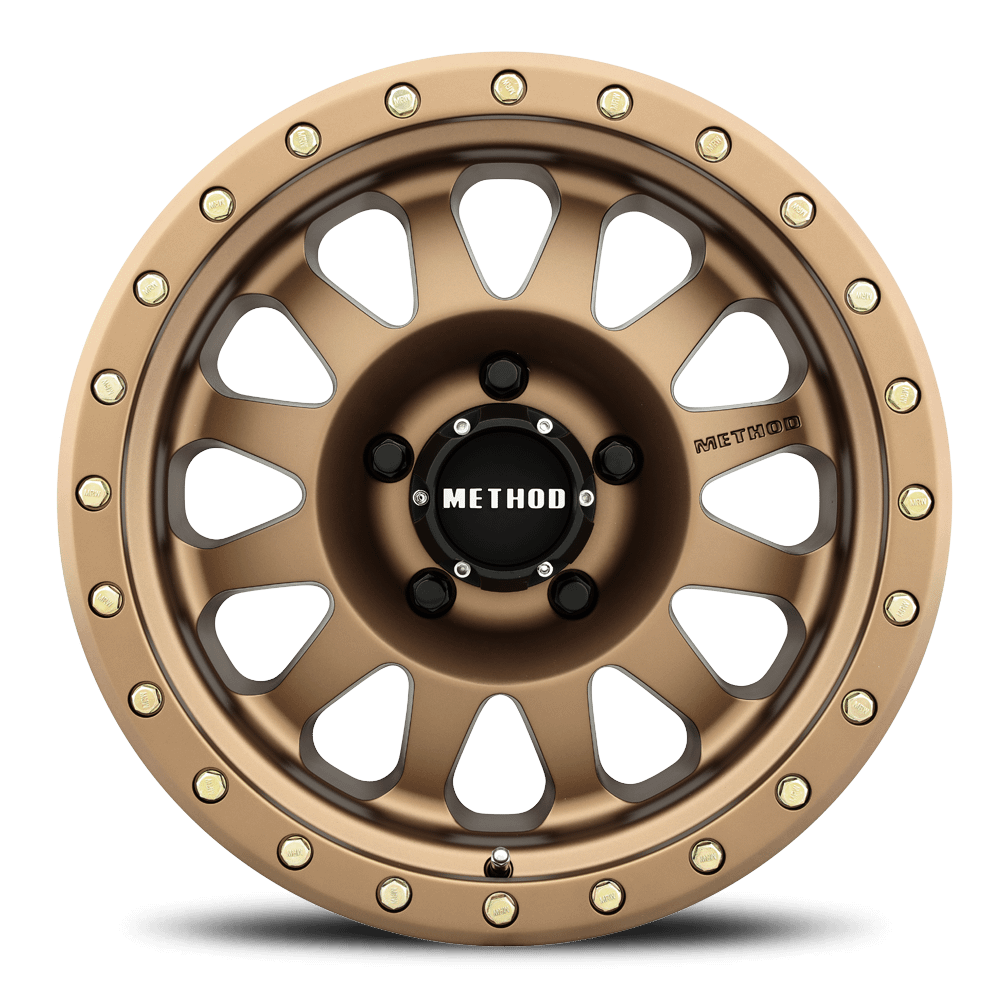

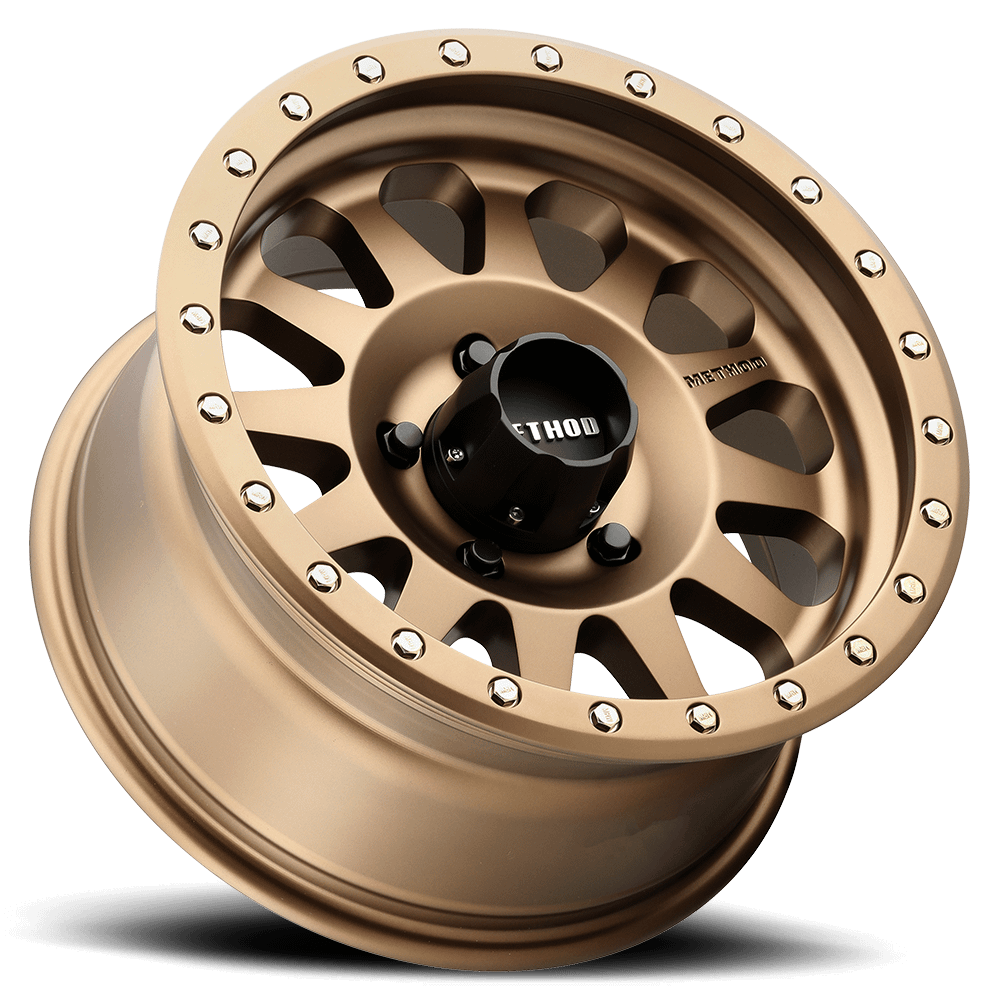

Method Race Wheels Aluminum Wheels 17x8.5 Double Standard MR304 Bolt Pattern 5 On 127 Offset 0 Lip Size 3.07 Method Bronze BRZ Method - MR30478550900
The 305 NV Wheel features an iconic 12 window design with a debossed Method logo on either side of the center cap. The lip undercut simulates a true beadlock wheel and has replaceable lip bolts with optional colors available.
It boasts a strong 2,500- 3,640 lbs. load rating with heavy duty (HD) 4,500 lbs. applications available.
Details:
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed METHOD logos
- Street-Loc V.1 lip with undercut simulates true beadlock wheel
- Replaceable MRW lip bolts with optional colors available
- Push through center cap with embossed METHOD logo
- Flush cap appearance options available
- Industry's best lifetime structural warranty
- Strong 2500 lbs. to 3640 lbs. load ratings with HD 4500 lbs. applications available
Specs
- Wheel Size: 17x8.5
- Model: Double Standard MR304BRZ
- Color: Method Bronze
- Offset: 0
- Bolt Pattern: 5 On 127
- Bolt Circle 1: 127
- Bore: 94
- Lip Size: 3.07
- Wheel Diameter: 17
- Width: 8.5
- Weight: 29.4
- Load Rating: 2500
- BSM: 4.75
- Material: A356 Aluminum
- Structure: 1-Piece
- Lug Type: Conical
- Exposed Lugs: Yes
- Lug Count: 5
- Replacement Cap: CP-1717B100-S1
- Segment: Off-Road, Truck
- Warranty: Lifetime Structural Warranty
- Sold As: Each
