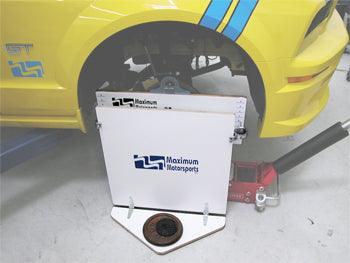

The MM Bumpsteer Gauge is an essential tool for measuring, adjusting, and correcting bumpsteer.
"Bumpsteer" is when tires steer themselves because the toe setting changes as the suspension moves up and down.
Not just for Mustangs! The newly revised Reference Plate fits most 4-lug and 5-lug hubs, allowing use on many non-Ford vehicles. It still fits 1979-current Mustangs, including the rear of the 1999-2004 Cobra with IRS.
Fits
- All 4-lug and 5-lug Mustangs, 1979-current.
- Rear 1999-2004 Cobra IRS.
Non-Mustang 4-lug
- 4-lug hubs with a 4-4.5" bolt circle diameter
- 4-lug hubs with a 100-120mm bolt circle diameter
- 4-lug hubs needing a center hole no larger than 2.930" in diameter
- Wheel studs up to 14mm in diameter
Non-Mustang 5-lug
- 5-lug hubs with a 4-5" bolt circle diameter
- 5-lug hubs with a 100-130mm bolt circle diameter
- 5-lug hubs needing a center hole no larger than 3.00" in diameter
- Wheel studs up to 14mm in diameter
Note: Assembly required; assembly time is about 15 minutes.
