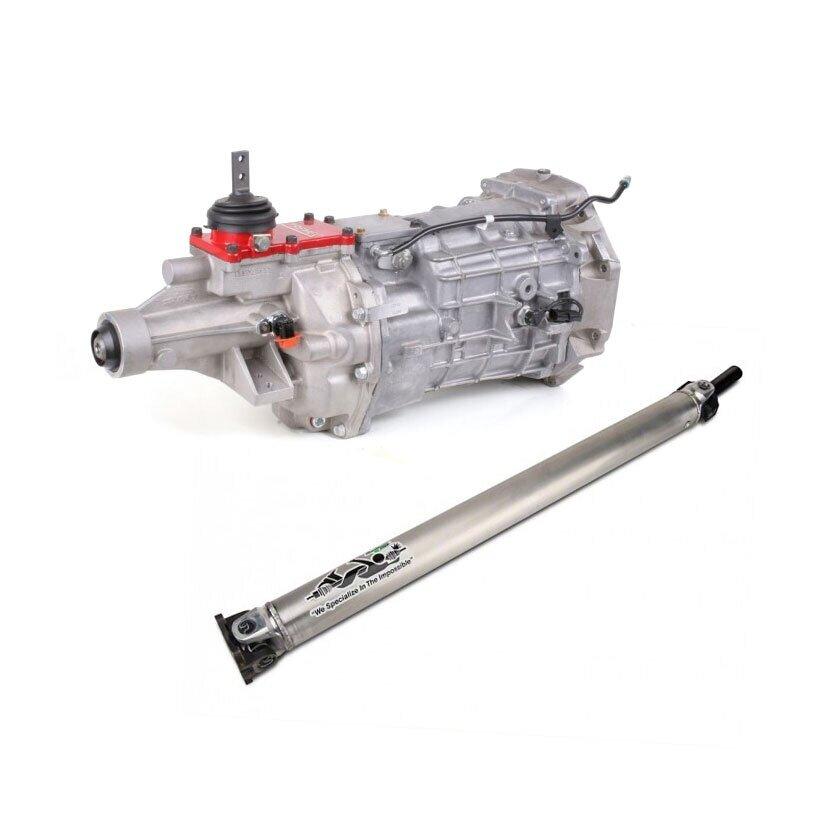

Lethal Performance T56 Magnum Swap Kit (2003-2004 Cobra)
The kingpin of TREMEC's high performance line-up, the T-56 Magnum double-overdrive 6-speed transmission takes the very best from TREMEC's current OEM technologies and pairs it with the most popular features of the TKO 5-speed.
Able to withstand a massive 700 lb-ft. of torque while providing unbelievably crisp shifts, no other manual transmission on the planet offers as much combined strength, versatility, and general ease-of-use as the T-56 Magnum.
Known in its original equipment form as the 'TR-6060', the Magnum is an aftermarket version of the same transmission found in many of today's most celebrated factory super cars – including the ZR1 Corvette and ACR Viper – giving you refinement where you want it and strength where it counts.
The aftermarket's premier 6-speed performance manual transmission
700 lb-ft. of torque capacity
Reasonably light at 135 lbs. dry
Multiple shifter locations & dual speedo pickups for unmatched versatility
Choice of two different gear ratio sets (2.66 or 2.97), with unique double overdrive ratios
Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.
Ford TUET11010
Engine: Modular
Torque Capacity: 700
Includes Clutch Housing: No
Clutch Type: Mech
Speedo Type: Mech/Elec
Input Shaft Spline: 26
Output Shaft Spline: 31
First Gear Ratio: 2.66 or 2.97
2nd Gear Ratio: 1.78
3rd Gear Ratio: 1.30
4th Gear Ratio: 1.00
5th Gear Ratio: .80
6th Gear Ratio: .63
Reverse: 2.90
Driveshaft:
Product Features:
Reduces Rotating Mass for Quicker ET's
Lighter and Stronger Than Stock - Only 14 lbs
6061-T6 Aluminum Construction - Rated for 3450ft lbs of Torque
One Piece Driveshaft Design
3.5" Diameter for Extra Clearance
High Speed Balanced - Rated Up to 950 Horsepower
Fits 2003-2004 SVT Cobra Mustangs with 31 spline T56 Magnum Conversion
Light Weight. Lighter and stronger than the stock driveshaft weighing in at only 14 lbs and 7.8 oz, The Driveshaft Shop's One Piece Mustang Driveshaft greatly reduces rotating mass to improve your 1/4 mile track times.
Superior Quality. Constructed from 3.5" diameter 6061-T6 aluminum tubing this driveshaft features solid u-joints and is designed to be used with a 1350 rear pinion yoke.
Extra Clearance. This light weight one piece aluminum driveshaft features a 3.5" diameter design giving extra clearance needed to avoid interference that can happen on lowered Mustangs equipped with a 4" shaft.
High Speed Balanced. Balanced on one of the most sophisticated balancing machines in the industry, at up to 9500RPM (revolutions per minute) this one piece driveshaft is rated for use up to 950 horsepower.
Application. This one piece aluminum driveshaft from The Driveshaft Shop is designed specifically for use on 2003 to 2004 SVT Cobra Mustangs equipped with the 31 spline T56 Magnum Conversion
