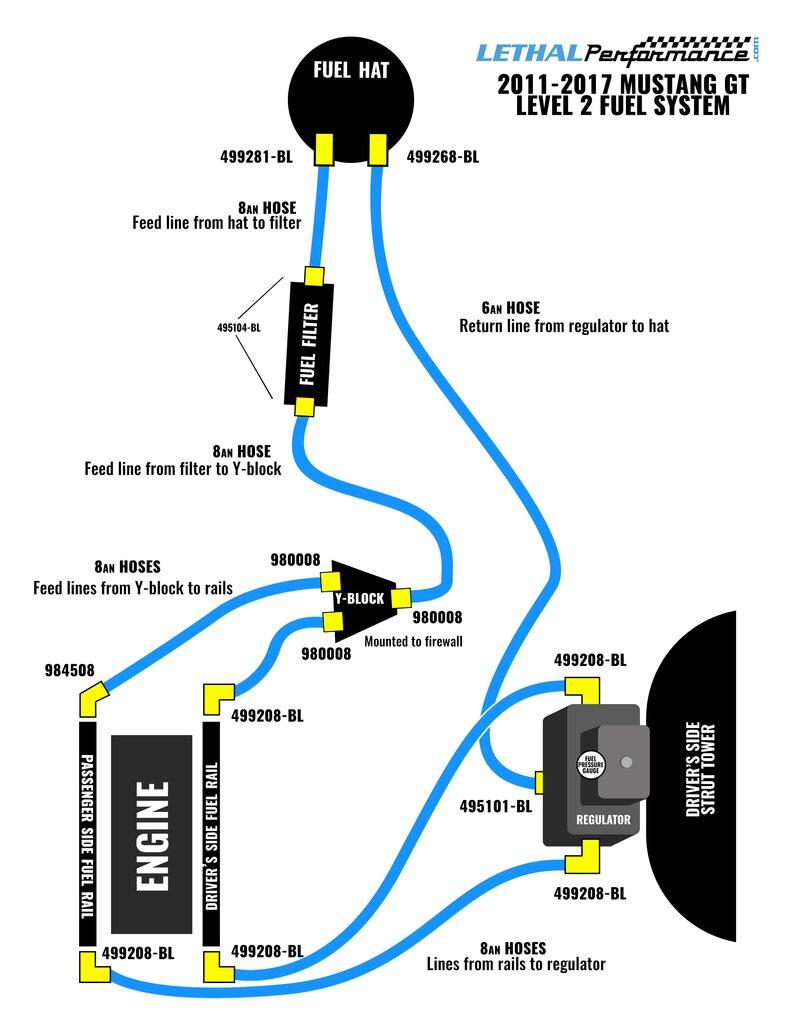

Are you running out of fuel with your current combo or simply looking to support more power or different fuel types without breaking the bank? We've got the solution for you. The all new Level 2 Return style fuel system for your 2011-2017 Ford Mustang GT is exactly what you need. The Level 2 system varies from the Level 1 system as it no longer uses your stock fuel rails in a deadhead configuration. Instead it now uses the fuel rails supplied with your VMP supercharger kit and is run in a traditional style routing for the hoses. We accomplish this by using a Y-block at the end of the main feed line which then feeds each aftermarket fuel rail from the rear. We then leave each rail from the front and feed the Aeromotive X1 Series Pro EFI Bypass Regulator where the fuel is regulated and then returned to the tank.
Utilizing the DivisionX S197/S550 billet fuel hat as the systems backbone you can run up to 3 pumps based on what type of power you're looking to support and what fuel you'll be using. We then run a 8an feed line to our aftermarket fuel filter and from there the Aeromotive X1 Series Pro EFI bypass regulator. Our Level 2 system uses all Fragola PTFE fuel hoses which are pre-assembled and won't leak or smell of fuel. Included in this system is our dual pump return style wiring harness which is plug and play with the DivisionX S197/S550 fuel hat. The triple pump wiring harness is available as an upgrade for those looking to run 3 pumps (now or later!).
Why go with this system as opposed to others that use a factory style fuel hat and pump setup? This system has much more capability than other kits on the market and as mentioned can easily be upgraded to a triple pump setup. Our competitors systems are stuck using only 2 inferior fuel pumps where this system has the option to use up to three of the top notch pump offerings from Walbro.

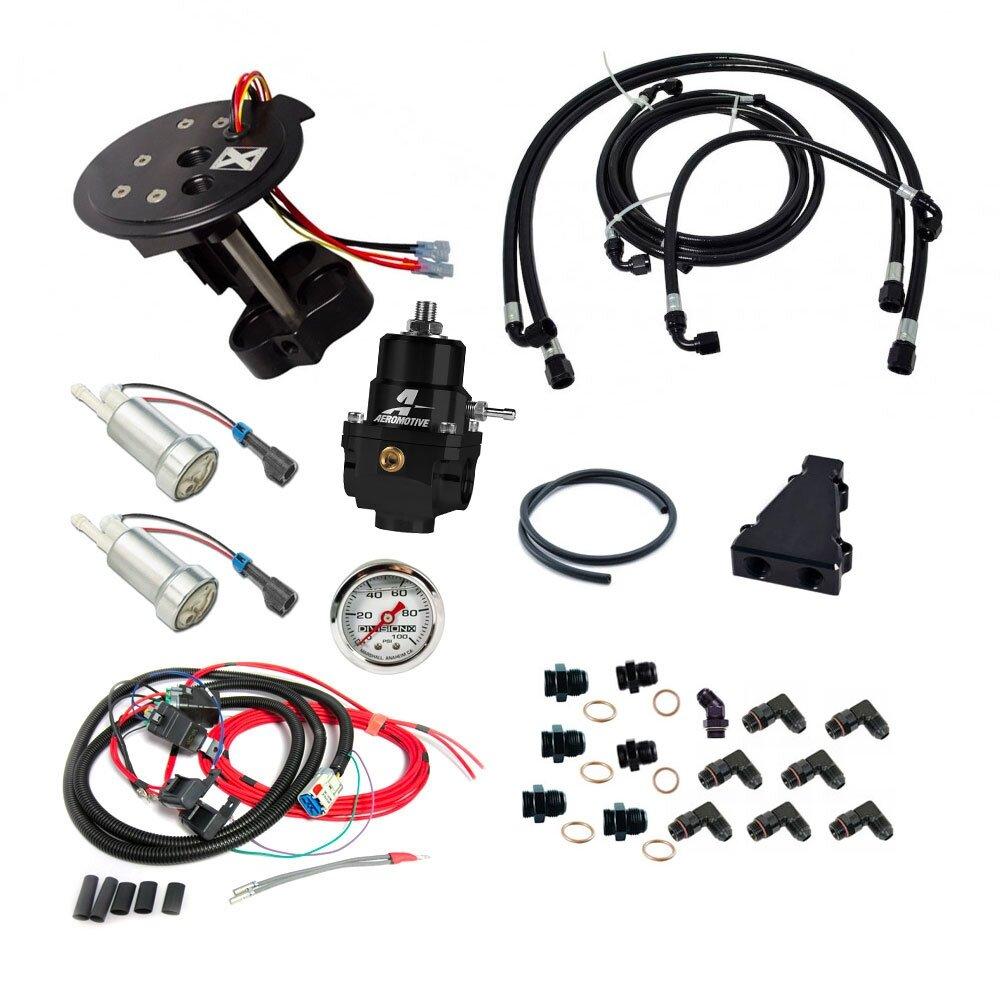

What's Included?:
DivisonX S197/S550 Coyote Triple Pump Fuel Hat
Aeromotive X1 Series Pro EFI Bypass Regulator (with fuel pressure gauge)
DivisionX Triple Pump Return Style Wiring Harness
DivisionX High Flow Fuel Filter (Stainless Washable E85 Compatible Element Optional)
Walbro F90000267 465lph E85 Approved Fuel Pumps
Fragola Pre-Assembled PTFE Feed and Return Lines
All Fittings and Hardware Needed for Installation
For more info, check out our full write-up HERE!
Note: FUEL RAILS NOT INCLUDED.VMP 2300 & 2650 kits come with return fuel rails. Roush 2300 requires fuel rails
