Please be advised lead time is around 4-5 weeks on this item.

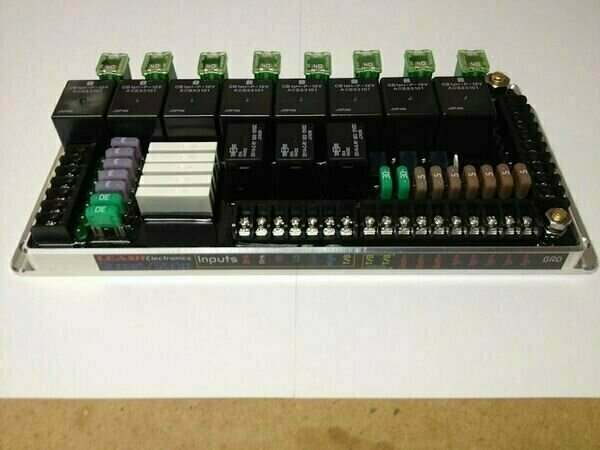

Leash Electronics Street/Strip Wiring Board - 8
Brand NEW upgrade. Now the transbrake relay is a Solid State Relay. So the
transbrake relay can be used as a normal transbrake relay or for
transbrake bumping controller by a ECU like a Holley. Can also be setup
for positive or negative trigger.FYI if you want a custom switch panel to go with this then look in the
switch panel catagory and select the Street/Strip rocker and relaymodule combo instead of this. Street/Strip wiring boardfeatures: 8x 70 amp relays with heavy duty fuse
sockets (one with built in optional transbrake safety for use with nitrous
system), fused transbrake relay. Fused lighting outputs including high beam
headlights, low beam headlights, turn signal blinkers, brake light, park
light, 3 fuse batt+ outputs, 5 fused ignition voltage outputs. Board
measures 9.375" x 4.5", billet aluminium base. This is like my 8 relay
board, prostreet board and single stage nitrous board all in one compact
unit. You can optionally select if you need any of the 8 relays to be turned on
by a ground signal if needed. Any negative triggered relays will not work
unless the ignition relay is on unless you specify that u need anything
different. Use option box below. But specify if you need the #1 relay or #8
relay ground triggered. The #1 relay is setup as the ignition relay which
also turns on the extra fused ignition power outputs. And the #8 relay is
the optional nitrous relay which means it will not come on if the tranbrake
if activated. The #8 relay can be used as a normal relay. You just cut a
jumper to disable the transbrake interrupt feature. Also note that any
negative triggered relays arm with the ignition input. This means they will
only work it the ignition relay is on and a ground signal is applied to
there inputs.You must type the number of ground inputs in the box below. Select 0-8J-case fuses not included.
Options - Black
Lime Green (+ $10.00)
Red (+ $10.00)
Blue (+ $10.00)
Pink (+ $10.00)
Yellow (+ $10.00)
White (+ $10.00)
Silver Vein (+ $10.00)
Charcoal (+ $10.00)
Silver Spatter (+ $10.00)
Gray (+ $10.00)
Orange (+ $10.00)
gold vein (+ $10.00)
