Please be advised lead time is around 4-5 weeks on this item.

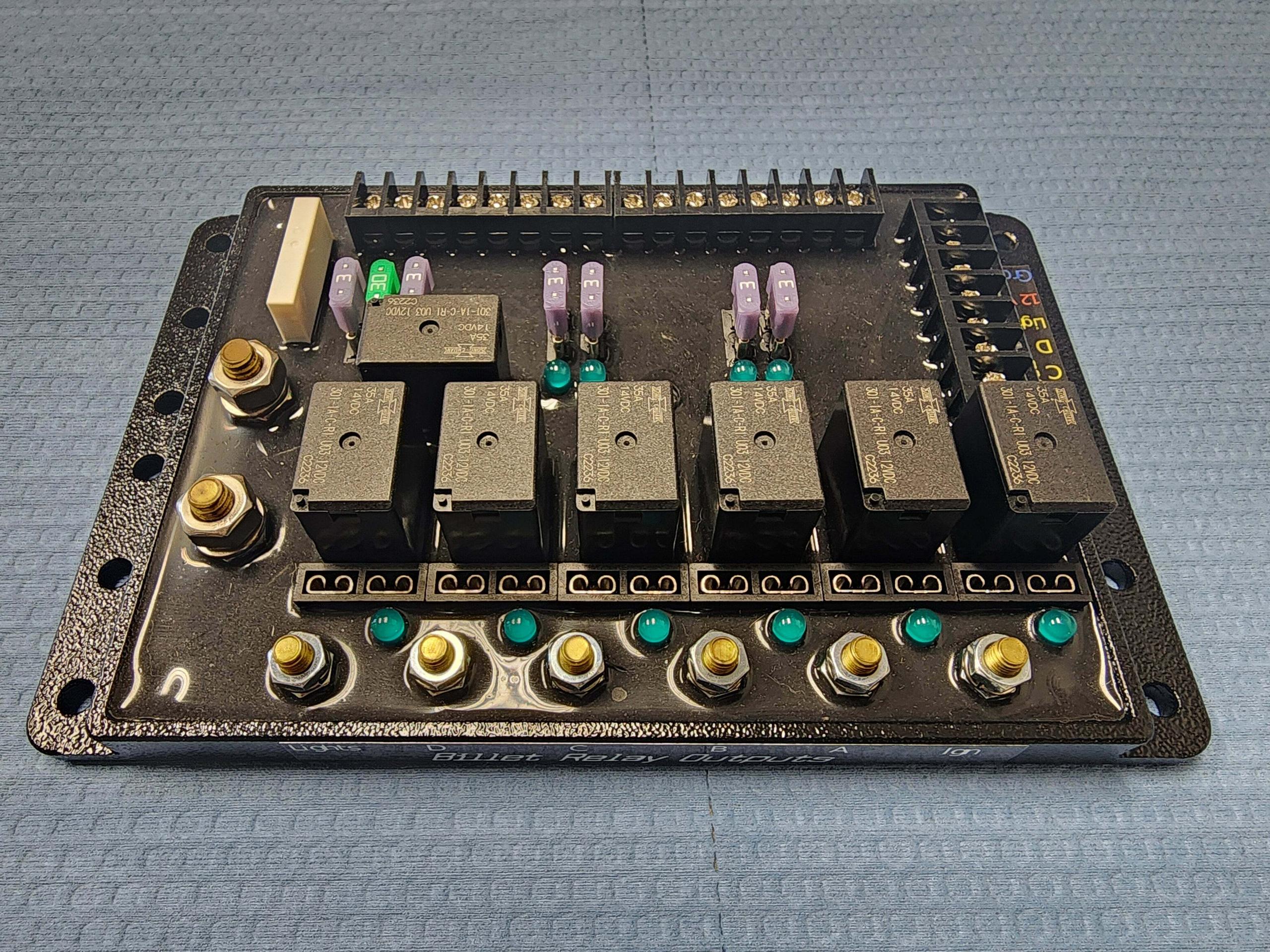

Leash Electronics Sportsman Wiring Board - 16
Update!!! The transbrake relay has been replaced by an onboardSolid State Relay. So it is much faster and can also be pulsed if you areusing an ECU or something to make it work as a Bump Box.Sportsman Wiring Board.Attention!!!! The relays 1-6 and the transbrake relay inputs can be custom built for ground triggering. In the text box below type in the ground triggers you might need. If you don't need any the type 0 in the box.Designed for the basic wiring solutions for the sportsman or pro street racecar. Features:6 onboard 35amp relays that triggers from you switch panel plus another 35 amp relay for your transbrake. Input strip and relay outputs prelabeled ignition, A, B, C, D and Lights. Input strip has 12volt and ground output to power switch panels. Has inputs for your transbrake button, line lock button and brake light switch.Ignition box connections including: 12volt ignition power, tach signal, launch(2-step), burnout(3-step).Has outputs for gauge power, ground, gauge lights, and tack signal. And fused outputs for transbrake, line lock, and brake lights.Relays are 35amp max so make sure the devices you connect do not pull more than 35 amps.Use an 4-8 gauge wire to connect to batter positive. Battery Negative does not have to be a large wire unless you want to use the stud to connect other grounds to.
