Please be advised lead time is around 4-5 weeks on this item.

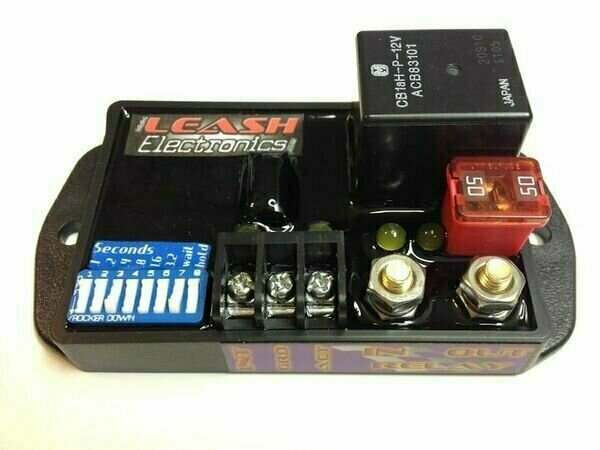

Leash Electronics Single Stage Timer - 24
Single Stage Timer:Here you go guys! A purpose built nitrous delay timer. Features a 0-6.3
second delay in .1 increments (can custom calibrate for a 0-.630 second in
.01 increments) relay used to delay nitrous activation. Unit has a built in
interrupt input used to disable nitrous timer during transbrake activation.
Has onboard 70 amp relay and fuses so there's no need to have any extra
external relays to clutter up your wiring. Unit can be set for no delay on
instantly and can be disabled using the last 2 dip switches. Timer can also
be set to wait for the delay then turn on the relay or it can be set to
turn the relay on instantly when activated then wait the delay and turn off
the relay with the last 2 dip switches. Very simple to operate and use.
Timer also is very small and compact for all the features it has. Measures
about 2"x3.5". Easy to mount. Nothing like the hideous old Digisets. These
unit can be wired togeather for multi nitrous kit configurations. Even
thought I built it for nitrous this timer can be used for many other
purposes too.Uses J-case fuses (not included)Fuses available in FMX/J case fuse catagoryMake sure you check the box for 0-6.30 seconds or 0-.630 seconds. I know
some serious nitrous guys like the 0-.630 delay range. And you must type
something in the drop down window after you select which timer range you
want or it wont add the item to your cart. If you click on any pictures and they seem blurry at first they should go
high quality in a few seconds or up to 1 minute. Just wait and the pic will
be very high quality!
Options - 0-6.30 in .1 increments
0-.630 in .01 increments
