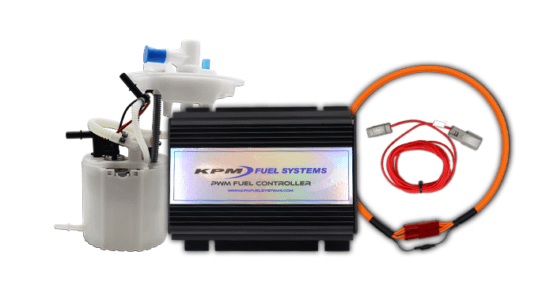

KPM Fuel Systems 1500hp Fuel System Package - Includes, PWM Module - AUP-KPMCAM61500PWM-P
Part No.:
Camaro Gen 6 (2016-2022):
AUP-
KPMCAM61500PWM-P
GM Cadillac CTS-V (2016-2019):
AUP-KPMCAM61500PWM-P
KPM Fuel Systems are proud to release the highest level of direct fit
in-tank fuel modules for the Camaro Gen 6 (2016 – 2022) and Cadillac CTS-V
(2016 – 2019) range of vehicles.
With the modern Camaro and Cadillac being tuned to amazing power levels
comes the need for a high performance fuel system.
KPM have met this need with a direct replacement high performance fuel
system that will perfectly support power levels from standard all the way
to 1500 hp.
No other Camaro or Cadillac fuel module supports as much power with the
efficiency, functionality, and fuel delivery of the KPM 1500 hp fuel system!
KPM 1500 hp Fuel Module
The
KPM 1500 hp Fuel Module
is engineered, utilizing 2 x high performance Bosch Racing fuel pumps, all
housed in an OEM style high flow fuel canister and distribution manifold.
The KPM fuel module is mounted and immersed in the vehicle’s fuel tank as
per OEM design and for ease of fitment.
The development and testing of the KPM module were focused on supplying
guaranteed delivery of cool, dense fuel to support 1500 hp at the engine on
pump fuel. Our objective was also the supply of solid fuel delivery in both
everyday road driving and extreme track conditions, regardless of fuel
level in the tank
To achieve these objectives, our KPM Fuel System engineer designed and
incorporated a
four
Venturi pump and refill valve system designed to scavenge fuel from both
sides of the Camaro/Cadillac fuel tank and permanently keep the fuel
canister full.
This means that you can run the KPM fuel module at any fuel level safely in
all conditions without the risk of surge or fuel starvation, including
during spirited driving, circuit days, or drag racing.
The fuel pumps are both 100% gasoline and ethanol compatible and able to
deliver massive amounts of cool dense fuel at standard vehicle voltages.
This equates to optimum tuning and power levels up to 1500 hp
(flywheel rated on 94 octane fuel)
.
Control of fuel pump current will keep your fuel cool and dense, preventing
vaporization and retaining maximum energy potential for optimum power.
Advantages
Features
KPM Fuel Systems have designed a Pulse Width Modulated (PWM) Fuel Module
Controller that can electronically run the two pumps housed in the KPM 1500
hp Module and also be further upgraded to run the three fuel pumps as
housed in the KPM 2200 hp and four fuel pumps in the 2700 hp Module.
We have called it the
KPM PWM Fuel Module Controller
Its main purpose is to control the supply of fuel flow in accordance with
the engine power/ fuel demand.
It does this by electronically controlling the amount of current supplied
to the fuel pumps.
The KPM
PWM Fuel Module Controller
has been designed to be a direct fit addition to all KPM 1500 hp, 2200 hp
and 2700 hp fuel systems.
Less fuel pump current = less heat = cooler fuel = more power
Supplying fuel to support 1500 hp and beyond requires two or more high flow
fuel pumps, housed in one or more in-tank fuel modules. The drawback to
this scenario is that two or more fuel pumps can generate quite a lot of
fuel pump current meaning increased heat.
This transfer of heat needs to go somewhere and therefore, heats the fuel
in the tank.
This is generally not a concern however, if the vehicle is idling or being
driven for long periods with a low level of fuel in the tank, the fuel may
start to reach a point of losing its full energy potential or start
vaporizing in the pumps or fuel lines. This can cause long cranking times
and hard re-starts. In the worst cases, the fuel pumps will start to
cavitate, lose pressure and not supply fuel as intended.
The KPM PWM controller is pre-programmed to monitor your vehicle fuel
pressure across all engine loads which in turn allows the controller to
calculate the required level of electrical current to your fuel pumps. This
in turn delivers the correct amount of fuel to your engine as required in
all conditions.
Cooler fuel increases your performance
Vehicles with a Factory Fuel System Control Module (FSCM)
Camaro Gen 6 (2016-2022)
Cadillac CTS-V (2016-2019)
The Camaro and Cadillac factory fuel system runs one small amperage fuel
pump (approx 16-19 amps), therefore the OE FSCM Fuel Module Controller is
designed to electronically control only one small amperage fuel pump and no
more.
The KPM 1500 hp Fuel System runs two fuel pumps at approx. 16-18 amps each.
This is a total of 36-38 amps. You can see that the factory FSCM cannot
support the amperage of larger pumps.
The KPM PWM Fuel Module Controller is used as a stand-alone controller and
by-passes the factory FSCM.
The KPM PWM Fuel Module Controller is supplied with a wiring kit that
directly fits your vehicle’s fuel system. The vehicle’s fuel pressure is
then used to calculate the correct current required to run the pumps
accordingly.
There may be a time when your 1500 hp Fuel and PWM System needs upgrading
if you decide to increase your engine power level even further.
KPM Fuel Systems has you covered!
There is no need to replace your 1500 hp Fuel and PWM System, just add to
it with the correct choice of KPM upgrade fuel system package to meet your
needs.
KPM Fuel System engineers have done all the design work to offer a direct
fit upgrade for your 1500 hp Fuel and PWM System ensuring your fuel system
fits and works perfectly. NO guess work! Fit and forget!
Additional to your KPM 1500 hp Fuel and PWM System we offer any of the
following upgrade packages:
The
KPM 1500 hp Fuel and PWM System
is a direct replacement system with the addition of the PWM easily mounted
as per the instructions provided.
The only extra requirement is to route the high amperage wiring and
connector kit, that comes supplied with easy fit OEM style plug and play
connectors.
The KPM 1500 hp Fuel System is now ready for your tuning professional to
calibrate your fuel system and tune your vehicle as normal with any
well-known tuning software.
The
KPM PWM Fuel Module Controller
is a vital addition to all high performance, high demand Camaro and
Cadillac fuel systems that require multiple pumps and or fuel modules.
It will electronically control the fuel pumps to reliably supply correct
amounts of cool dense fuel, when and where required for engine demands.
Cool dense fuel increases power and reliability.
It is fully modular when fitted to an existing KPM 1500 hp, KPM 2200 hp or
KPM 2700 hp Fuel Module System
The KPM PWM Fuel Module Controller increases your power and engine
reliability!
Camaro Gen 6 (2016-2022):
AUP-
KPMCAM61500PWM-P
GM Cadillac CTS-V (2016-2019):
AUP-KPMCAM61500PWM-P
