KPM Fuel Systems 1000hp Intank Fuel Module Package - AUP-KPMCAM61000-P
Part No.:
Camaro Gen 6 (2016-2022):
AUP-KPMCAM61000-P
GM Cadillac CTS-V (2016-2019):
AUP-KPMCAM61000-P
KPM Fuel Systems are proud to release the highest level of direct fit
in-tank fuel modules for the Camaro Gen 6 (2016 – 2022) and Cadillac CTS-V
(2016 – 2019) range of vehicles.
With the modern Camaro and Cadillac being tuned to amazing power levels
comes the need for a high performance fuel system.
KPM have met this need with a direct replacement high performance fuel
module that will perfectly support power levels from standard all the way
to 1000 hp.
No other Camaro or Cadillac fuel module supports as much power with the
efficiency, functionality, and fuel delivery of the KPM 1000 hp fuel system!
Until now, the only fuel system solutions available have been to
boost voltage
to the fuel pumps, to replace the fuel module canister with a
hanger manifold
that houses one or multiple pumps or to modify the
direct supply
fuel system into an outdated
return style
fuel system.
All these methods have been stop-gap solutions with limitations:
Alternatively, a
direct supply
fuel system supplies cool dense fuel from the tank that is not
recirculated, making for a more efficient and modern high-performance fuel
system.

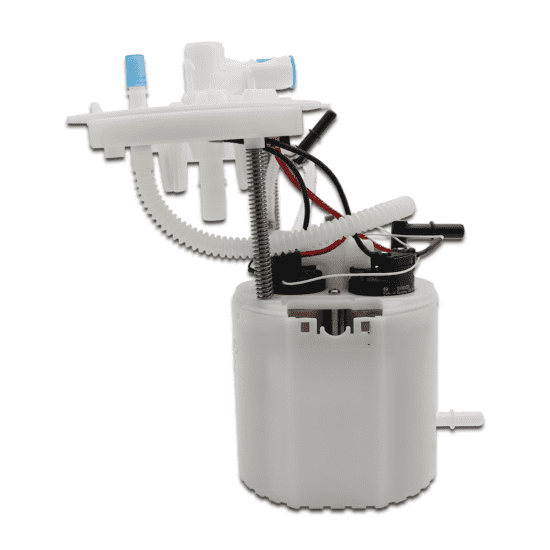

Fuel Module
The
KPM 1000 hp Fuel Module
is engineered, utilizing 2x high performance Bosch Racing fuel pumps, all
housed in an OEM style high flow fuel canister and distribution manifold.
The KPM fuel module is mounted and immersed in the vehicle’s fuel tank as
per OEM design and for ease of fitment.
The development and testing of the KPM module was focused on supplying
guaranteed delivery of cool dense fuel to support 1000 hp at the engine on
pump fuel. Our objective was also the supply of solid fuel delivery, in
both everyday road driving or extreme track conditions, regardless of fuel
level in the tank
To achieve these objectives, our KPM Fuel System engineer designed and
incorporated a
four
Venturi pump and refill valve system designed to scavenge fuel from both
sides of the Camaro/Cadillac fuel tank and permanently keep the fuel
canister full.
This means that you can run the KPM fuel module at any fuel level safely
across all conditions without the risk of surge or fuel starvation,
including during spirited driving, circuit days or drag racing.
The fuel pumps are both 100% gasoline and ethanol compatible and able to
deliver massive amounts of cool, dense fuel at standard vehicle voltages.
This equates to optimum tuning and power levels up to 1000 hp
(flywheel rated on 94 octane fuel)
.
The
KPM 1000 hp Fuel Module
is a direct replacement system. Simply remove your standard module and fit
the KPM module.
The KPM fuel module system is now ready for your tuning professional to
calibrate your fuel system and tune your vehicle as normal with any
well-known tuning software.
There may be a time when your KPM 1000 hp Fuel Module needs upgrading.
KPM Fuel Systems has you covered.
For increased fuel system flexibility utilize our PWM electronic fuel
system controller or increase your engine power level even further.
There is no need to replace your 1000 hp module, just add to it with the
correct choice of KPM Upgrade Fuel and PWM System packages to meet your
needs.
KPM Fuel System engineers have done all the design work to offer a direct
fit upgrade for your 1000 hp module ensuring your fuel system fits and
works perfectly. NO guess work! Fit and forget!
Additional to your 1000 hp Fuel Module we offer any of the following
upgrade packages:
Camaro Gen 6 (2016-2022):
AUP-KPMCAM61000-P
GM Cadillac CTS-V (2016-2019):
AUP-KPMCAM61000-P
Stuck with your installation?
Find all of our fitting instructions
here
