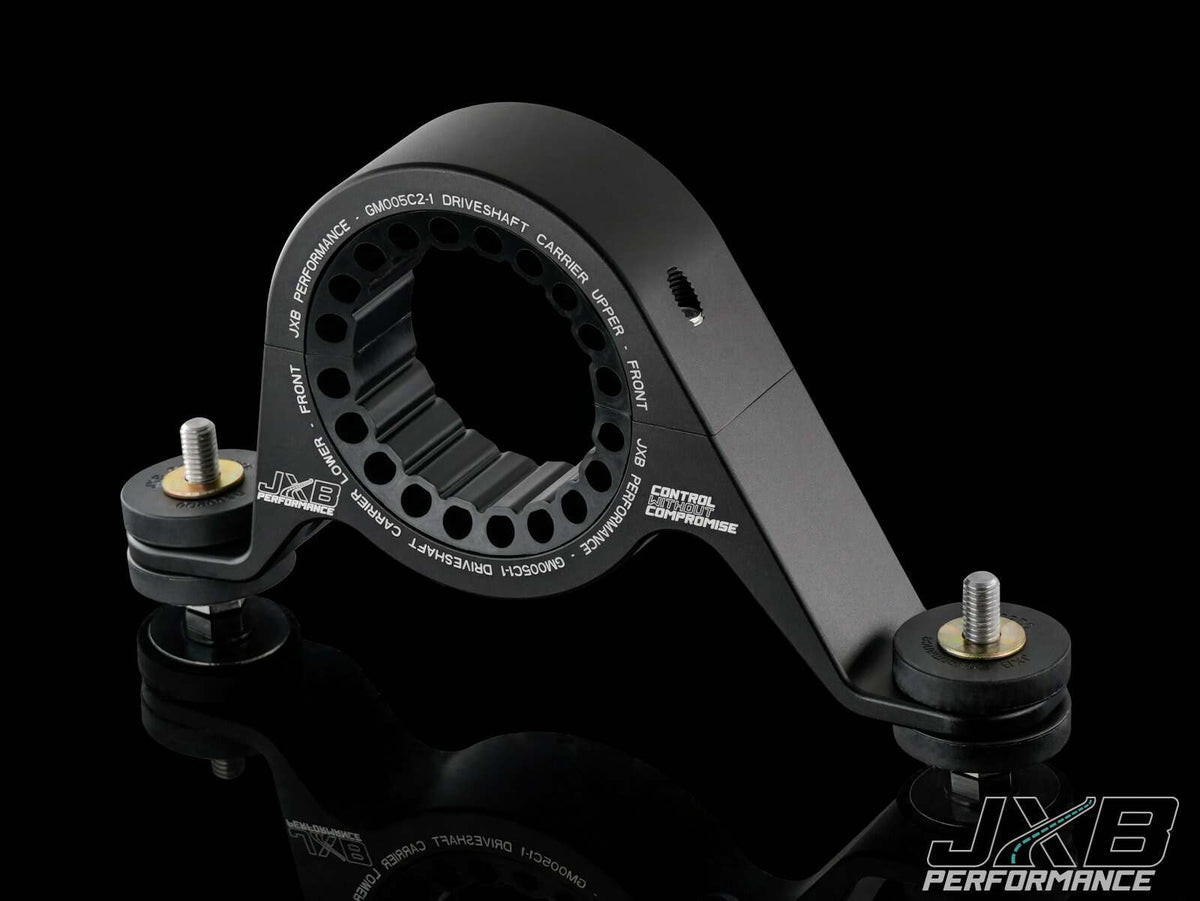

JXB Performance Driveshaft Carrier - 5th gen GTO - Both Bushings - GM005A0-B
The stock center support bearing carrier holds the driveshaft in place with
a layer of thin rubber. While that’s great for making sure no NVH makes it
to the cabin, it doesn’t keep the bearing centered well under load, allows
the bearing to sag and ruin driveshaft alignment over time, and creates
slop in the driveline during shifts and throttle application.
Over time the OEM bushing becomes brittle, eventually dry rotting and
cracking. Even on the best-kept cars, the stock bushing can start to form
cracks in as little as 5-10 years.
When the bushing wears and sags, it changes the alignment of the
driveshaft, putting more stress on the joints. During rapid loading of the
driveshaft (launches, shifts, and quick application of the throttle), the
bearing is allowed to travel off-center, introducing slack in the
driveline, which results in laggy and unpredictable driveline response.
Our upgraded driveshaft carriers keep the driveshaft firmly in place at all
times. The more solid bushings ensure the bearing cannot move from center,
maintaining torque delivery and driveshaft alignment at all times,
resulting in more direct driveline response under all conditions.
From years of producing and installing these, benefits as described by our
customers include:
More direct throttle response
Firmer, more direct shifts
More instantaneous launches
Reduction in vibration due to driveshaft misalignment and/or rubber
deterioration
Smoother low-speed on/off throttle behavior (1st gear in parking lots)
The first video below was recorded on a 2008 Pontiac G8 GT; the second on a
2005 Pontiac GTO. The OEM carrier design is similar between the models, and
of course the GTO is just a Pontiac-badged Monaro. The driveshaft is not
well-supported by the soft OEM carrier, so it’s allowed to travel
off-center during rapid loading and unloading. The first video shows a
comparison of the behavior while driving. The second video shows a
comparison of how much an OEM carrier gives under load and the improvement
with the JXB carrier. In the case of the G8 video, the OEM carrier had
torn, so we also included footage from our 5th gen Camaro ZL1 test car,
which was still in good condition and uses the same carrier.
Installation doesn’t require removal of the driveshaft. The 2-part design
clamps around the unserviceable OEM bearing. The old carrier must be
removed, so a cutting tool is required.
The exact steps to access the carrier will vary slightly by model, but the
removal and installation of the new carrier are the same. The basic steps
are:
Remove any braces or splash shields preventing exhaust and heat shield
removal
Remove or lower exhaust in area of center support bearing if needed for
access
Remove heat shielding covering center support bearing
Cut off OEM carrier and remove rubber support material with razorblade,
leaving base layer of molded-on rubber intact on the bearing
Clamp new carrier around OEM bearing
Pontiac GTO (5th gen)
Also fits:
V2/VZ Monaro based models:
Holden V2/VZ Monaro
HSV Coupe GTS/GTO
Vauxhall Monaro/VXR
Holden Commodore VTII-VZ based models:
VT Commodore/Calais/Berlina
VX Commodore/Calais/Berlina/Ute
VY Commodore/Calais/Berlina/Ute/Crewman/One Tonner/Adventra
VZ Commodore/Calais/Berlina/Ute/Crewman/One Tonner/Adventra
HSV VT Clubsport/Senator/Manta/GTS
HSV VX Clubsport/Senator/Maloo/GTS/XU6
HSV VY Clubsport/Senator/Maloo/GTS/Avalanche
HSV VZ Clubsport/Senator/Maloo/Avalanche
Holden Caprice WH-WL based models:
WH Statesman/Caprice/HSV Grange
WK Statesman/Caprice/HSV Grange
WL Statesman/Caprice/HSV Grange
Street and Track refer to the durometer (stiffness) of the bushings. Track
are roughly twice the durometer of the street bushings. Both track and
street are many times stiffer than stock and will hold up to whatever abuse
are thrown at them, but the street bushings are better at soaking up
drivetrain noise and vibration. Usually both street and track are
completely silent and vibration-free, but in cases where there is an
underlying drivetrain issue causing the driveshaft to vibrate badly, the
track bushings may not be able to soak it all up, where the street bushings
can.
We generally recommend street bushings for any car that's not purpose-built
for track or overland use, since the street bushings have a much lower
chance of transmitting drivetrain NVH to the cabin at high speeds or under
heavy throttle loads.
If you’re not sure which to go with, the “Give me Both!” option will give
you a full set of each of the street and track bushings. You can use all
street, all track, or even mix and match them to find the perfect balance
of performance and NVH-absorption.
Street - GM005A0-S
Track - GM005A0-T
Both - GM005A0-B
Street - BSH09A0
Track - BSH09A1
SHS01A0
