JW Speaker : 97 - 12/24V BILED DOT/ECE REG113 (Universal) - 554921
THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

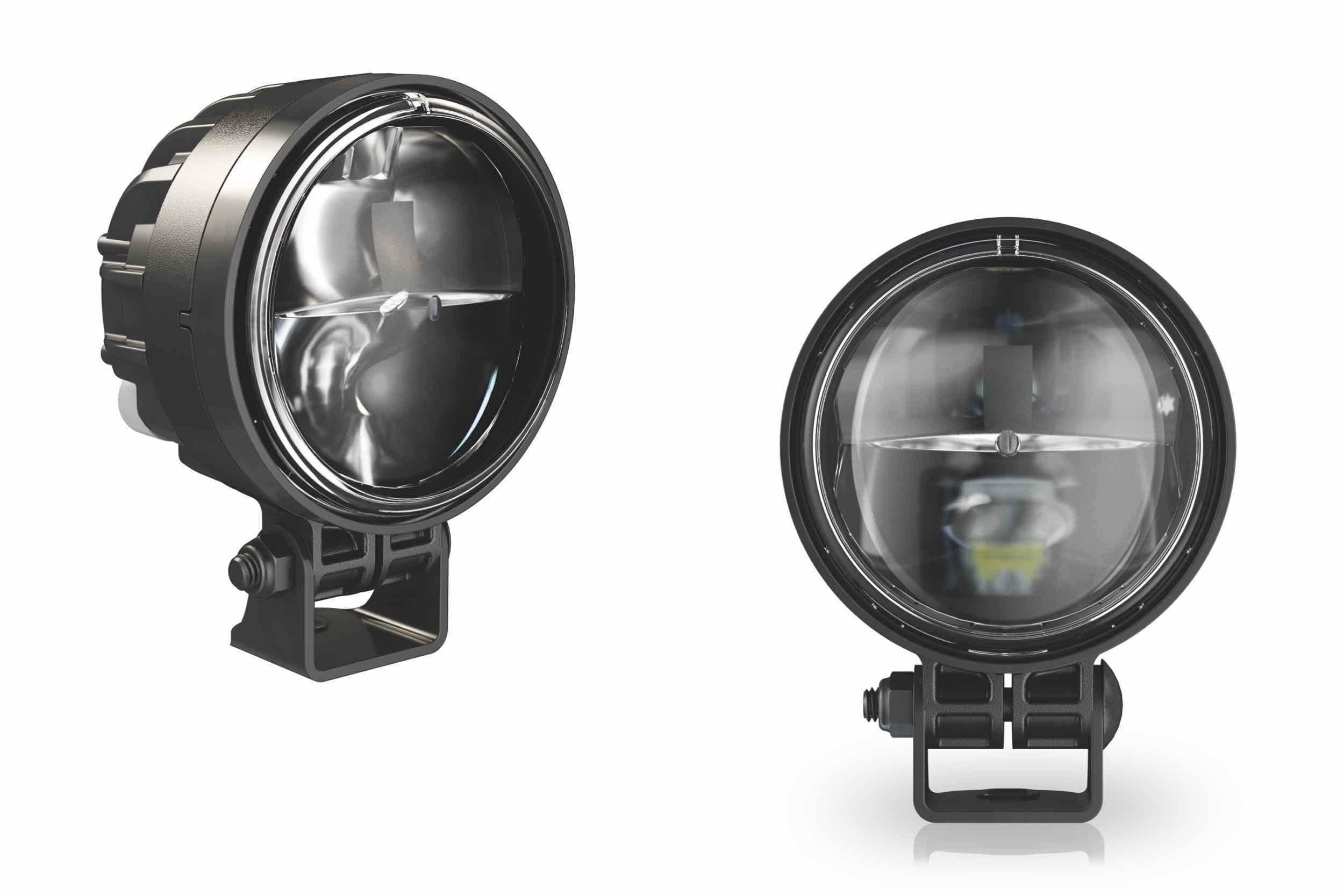

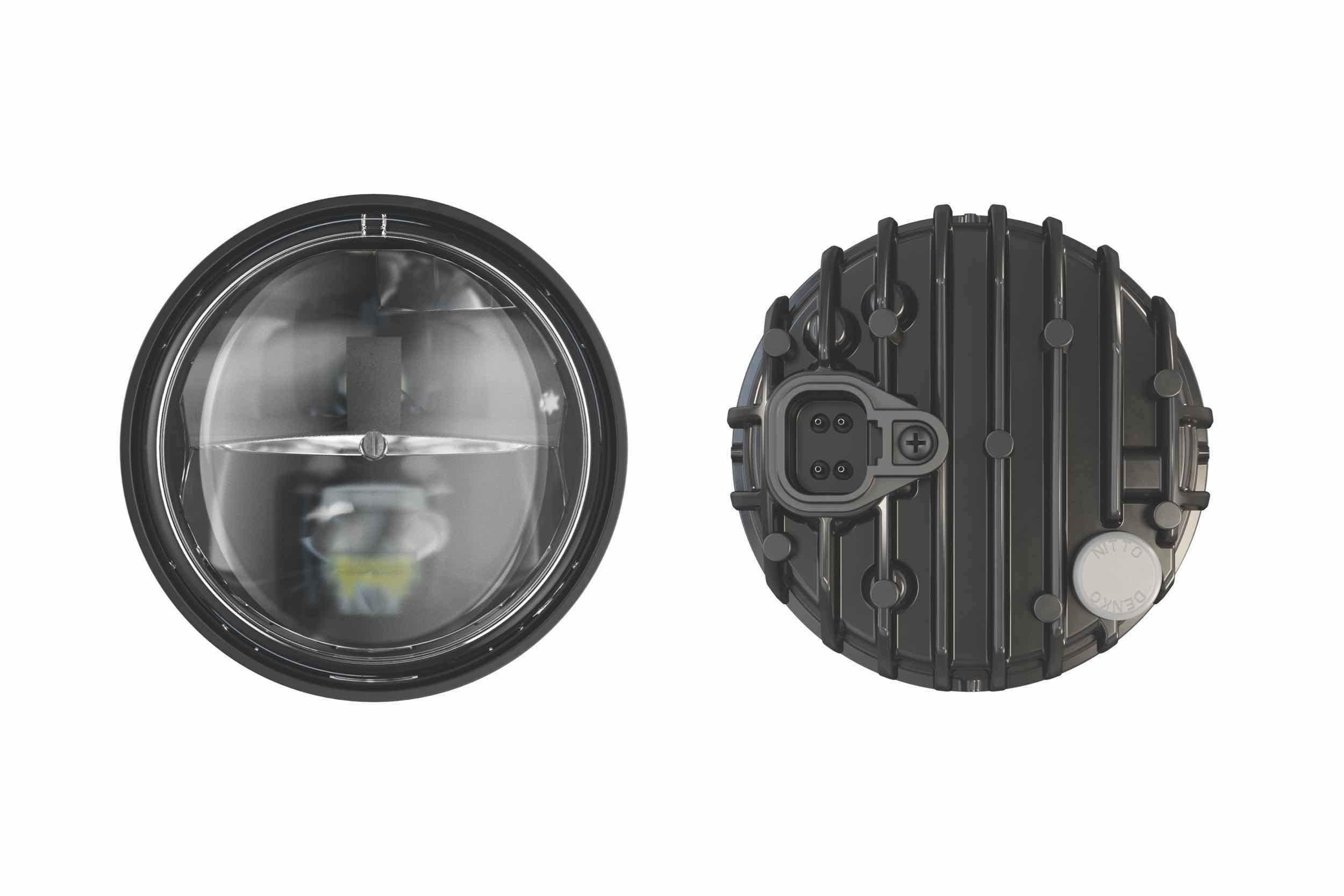

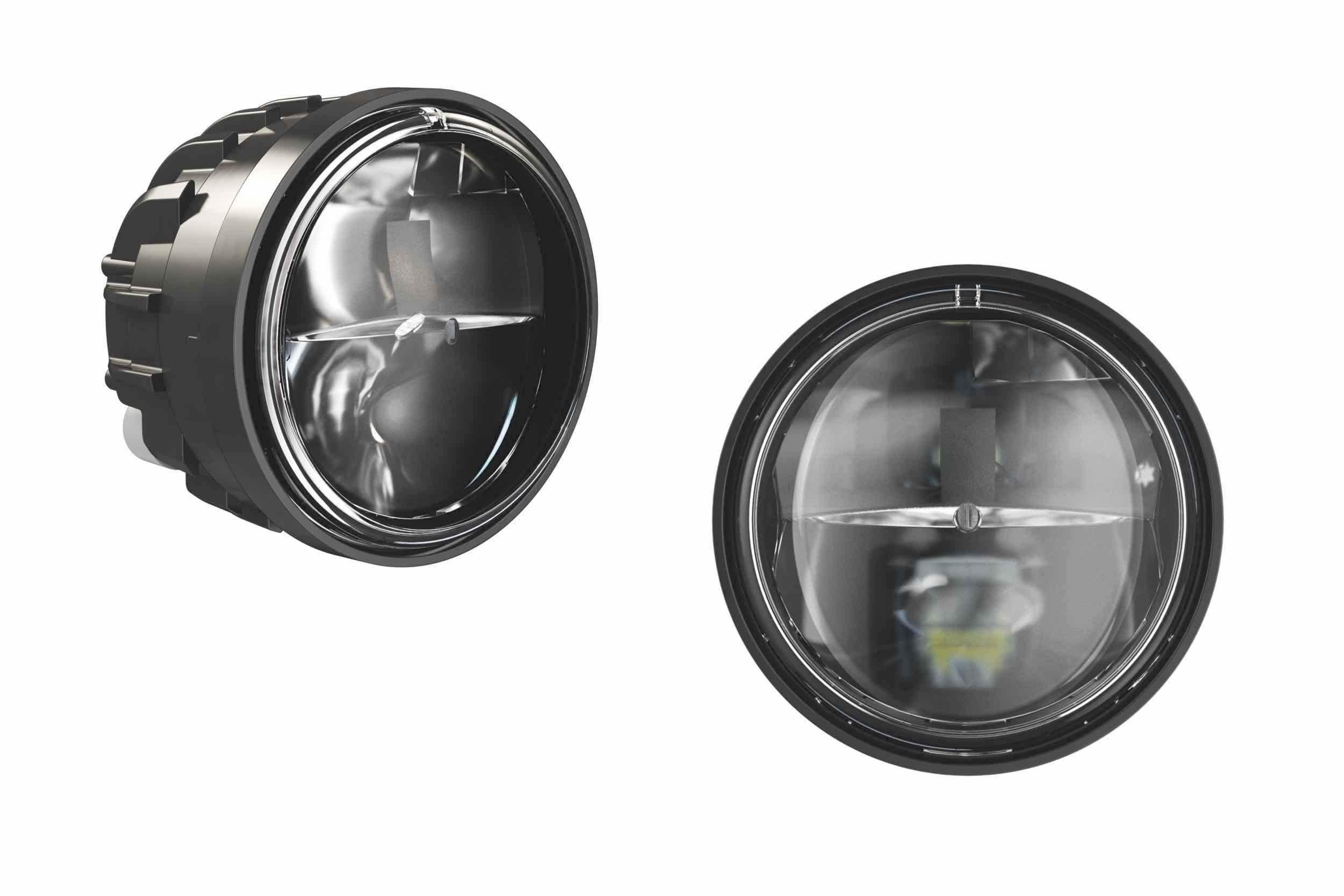

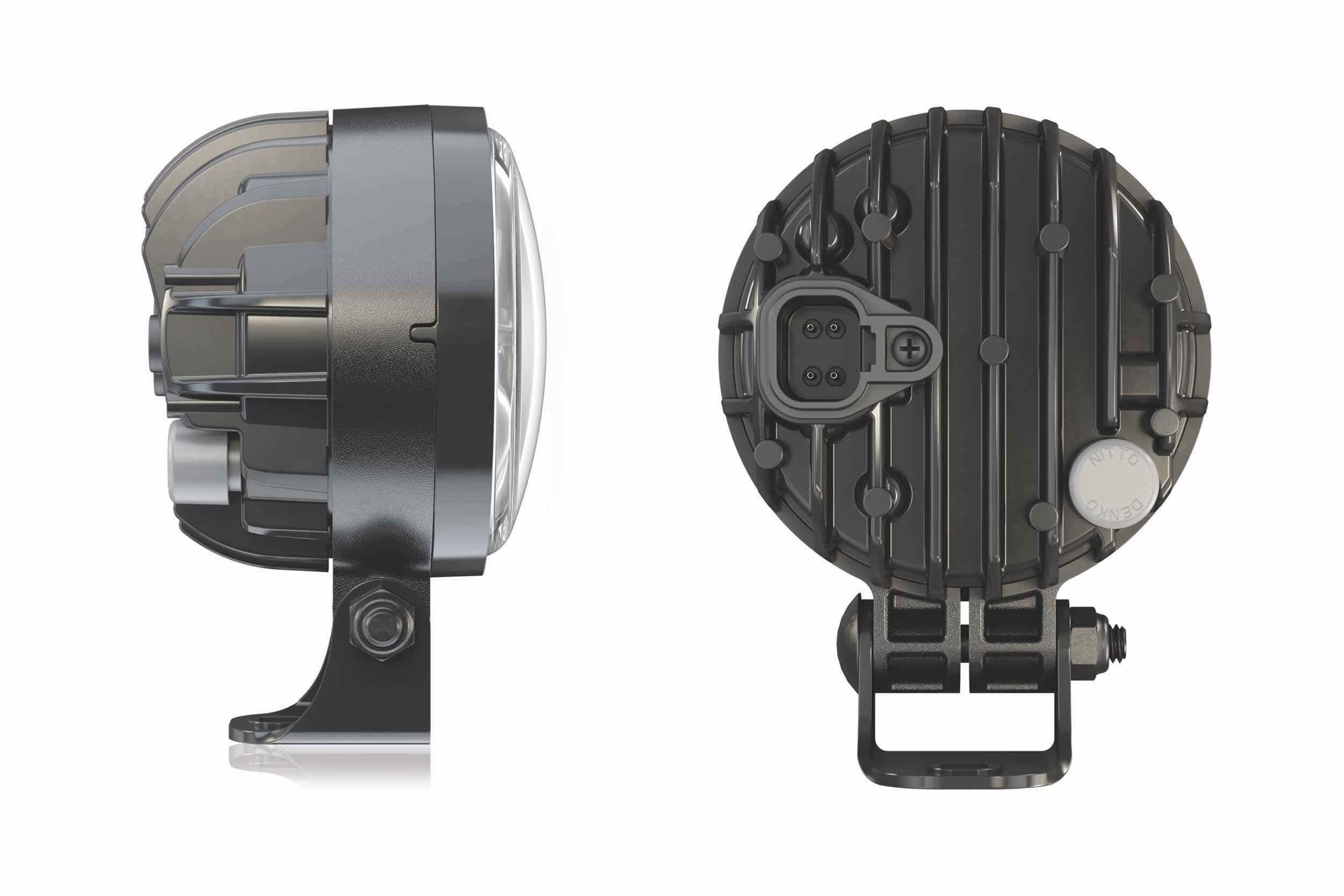

The Model 97 Bi-LED headlights are designed as upgrades from stock bulb-based 100mm lights commonly found on a variety of applications including buses, trucks, and motor coaches.
Each Model 97 features a heavy-duty aluminum housing, UV-resistant lens, and the latest in solid-state optics. They are designed to be drop-in High & Low beam LED headlight replacements for stock 100mm lights.
Features: Built-in high and low beam headlight with front position and DRL, Easy installation; versatile to fit in a variety of heavy-duty applications, Durable and Reliable; Heavy-duty aluminum housing and UV-resistant polycarbonate lens, Legal on-road throughout North America and Europe; DOT & ECE compliant.

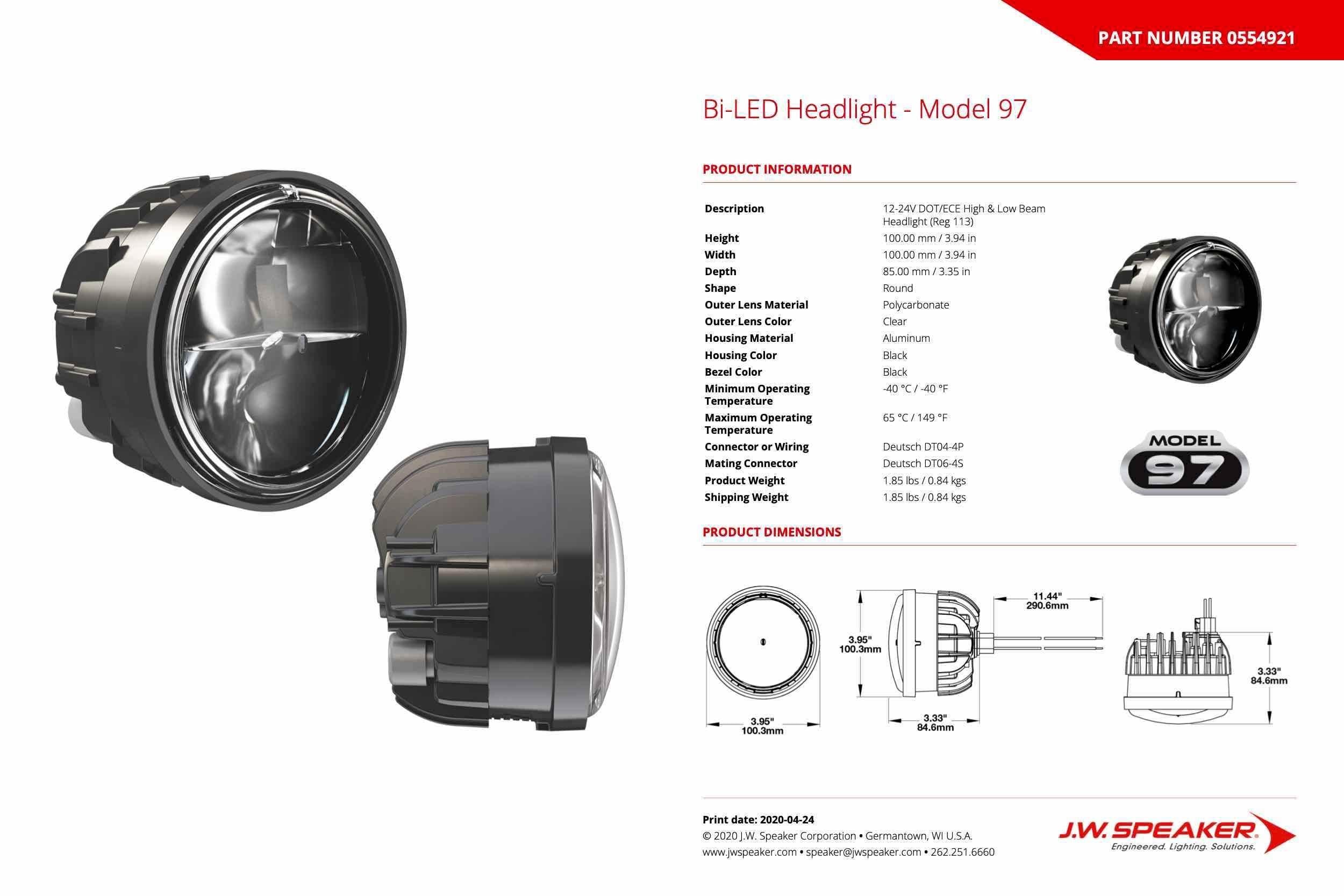

Height:::100.00 mm / 3.94 in|Width:::100.00 mm / 3.94 in|Depth:::85.00 mm / 3.35 in|Shape:::Round|Outer Lens Material:::Polycarbonate|Outer Lens Color:::Clear|Housing Material:::Aluminum|Housing Color:::Black|Bezel Color:::Black|Minimum Operating Temperature:::-40 degC / -40 degF|Maximum Operating Temperature:::65 degC / 149 degF|Connector or Wiring:::Deutsch DT04-4|Mating Connector:::Deutsch DT06-4S|Product Weight:::1.85 lbs / 0.84 kgs|Shipping Weight:::1.85 lbs / 0.84 kgs|Input Voltage:::12-24V DC|Operating Voltage:::10-32V DC|Transient Spike Protection:::150V Peak @ 1 HZ-100 Pulses|Black Wire:::Ground|Yellow Wire:::Low Beam|White Wire:::High Beam|Red Wire:::Front Position|Current Draw:::1.5A @ 12V DC (Low Beam)|Current Draw:::1.8A @ 12V DC (High Beam)|Current Draw:::0.1A @ 12V DC (Front Position)|Current Draw:::0.8A @ 24V DC (Low Beam)|Current Draw:::1.0A @ 24V DC (High Beam)|Current Draw:::0.06A @ 24V DC (Front Position)
HEADLIGHT:::1x JW Speaker Model 97 Universal Bi-LED Headlight|PART NUMBER:::554921, 8001511, or 8001521|WARRANTY:::Lifetime Limited|OTHER:::Instruction Card + JW Speaker Sticker
