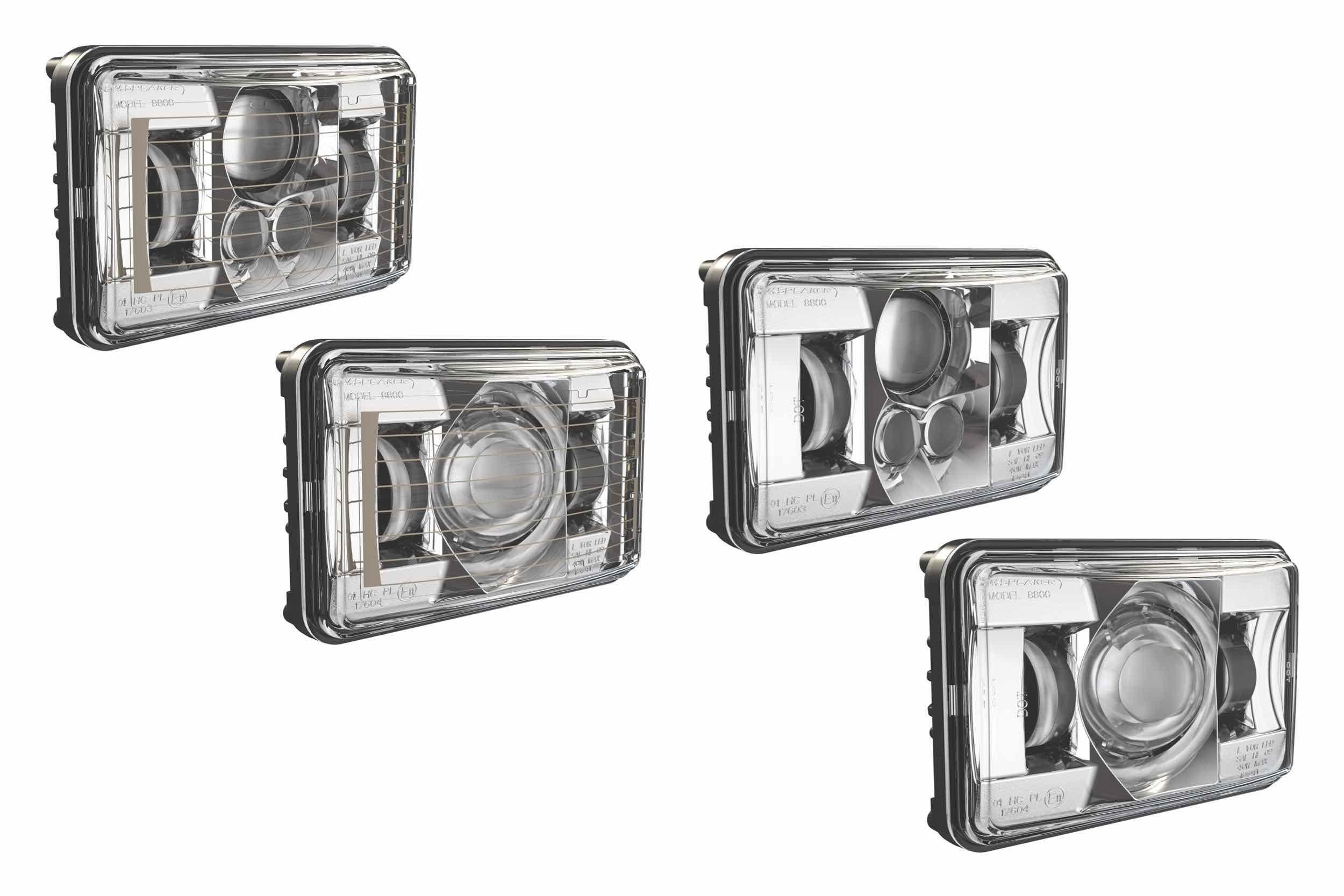

JW Speaker : 8800 EV2 12/24V Lowbeam SAE/ECE (RHT / BLACK) (Universal) - 552551
THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

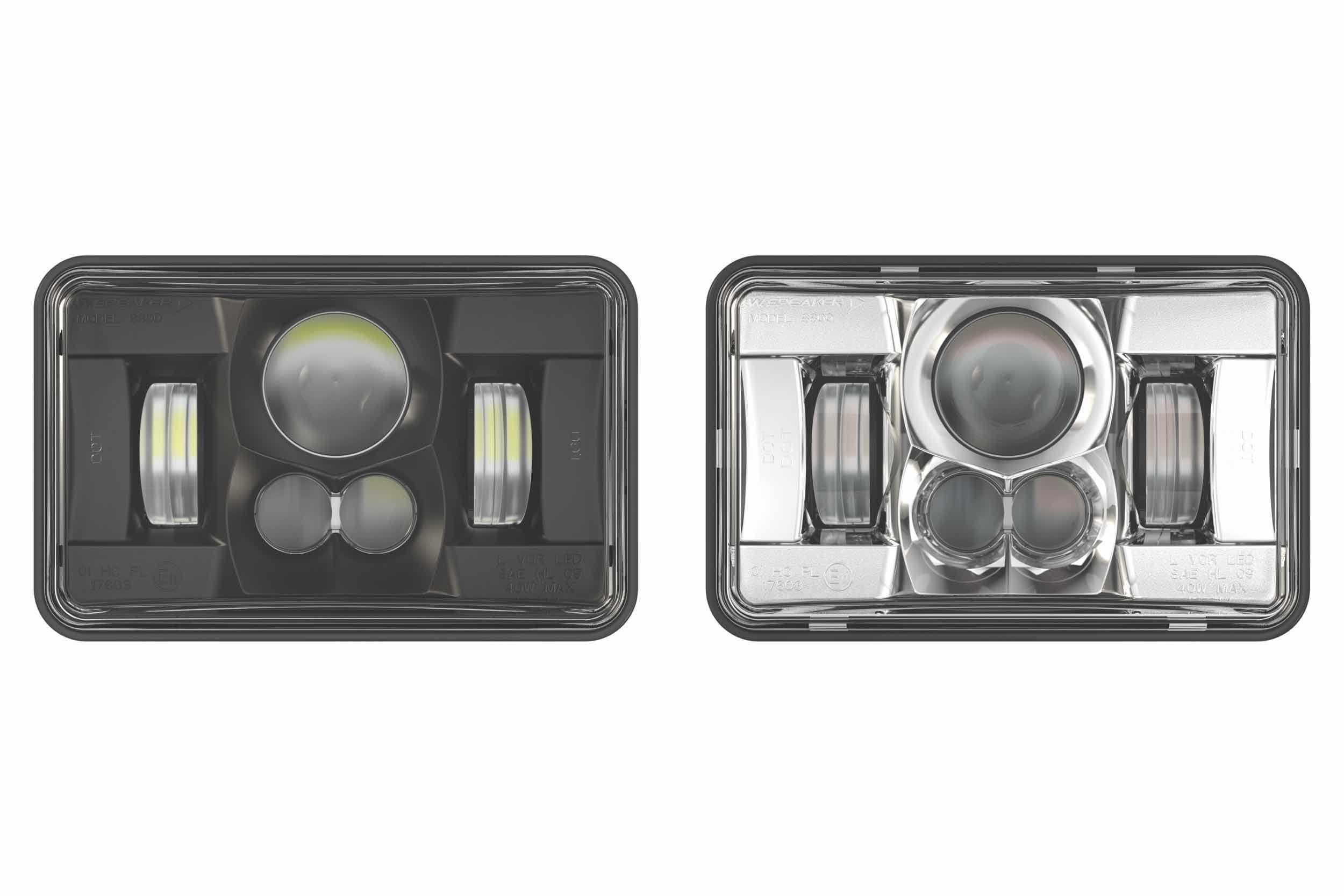

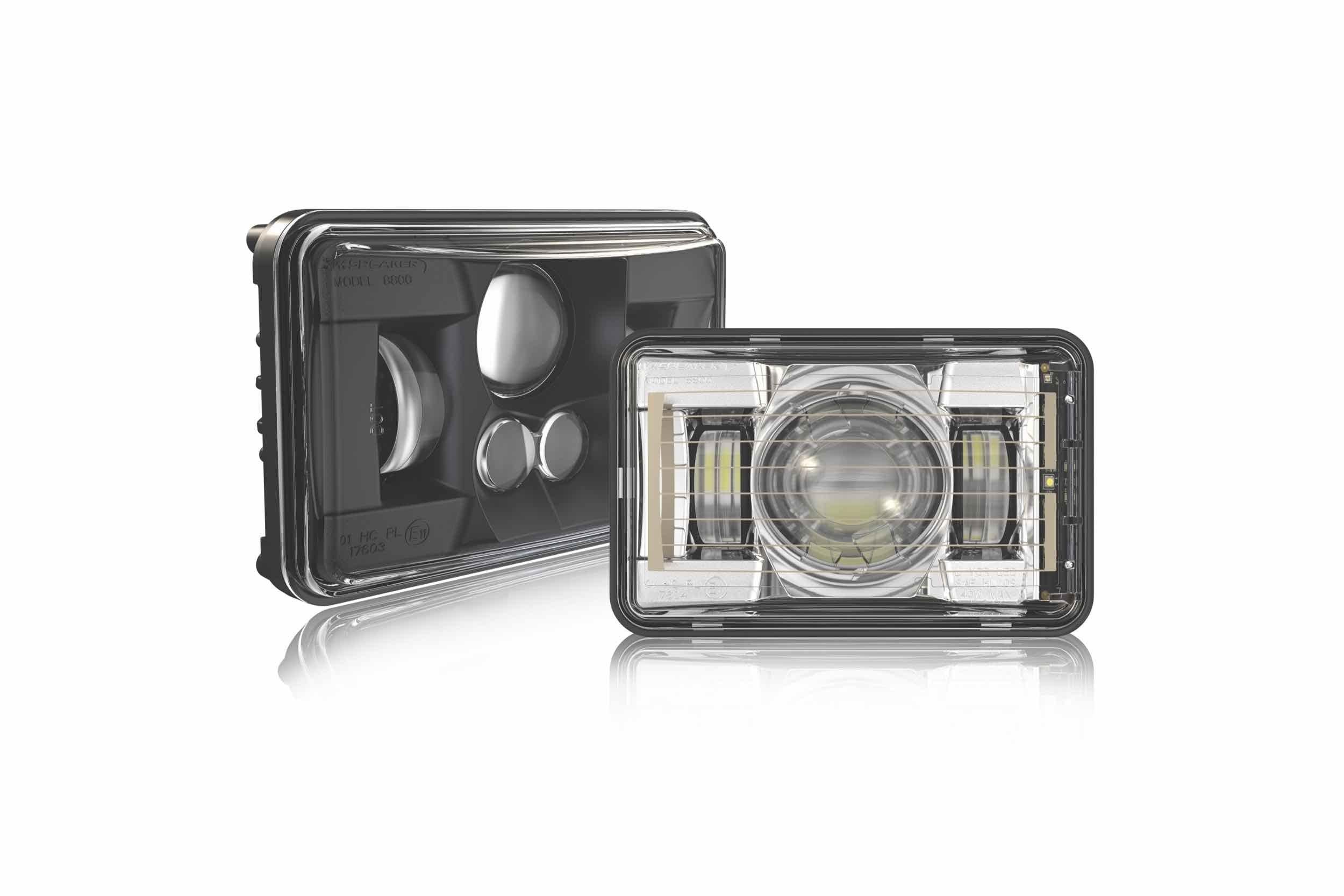

The 8800 Evolution 2 provides a high performance 4 x6in LED headlight, available with a SmartHeat heated lens! This headlight is the industry's first to meet proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight, when installed on vehicles at gross weight with headlights at 0.8 ' ¢Ã¢â€š ¬Ã¯ ¿ ½1.2m off the ground.

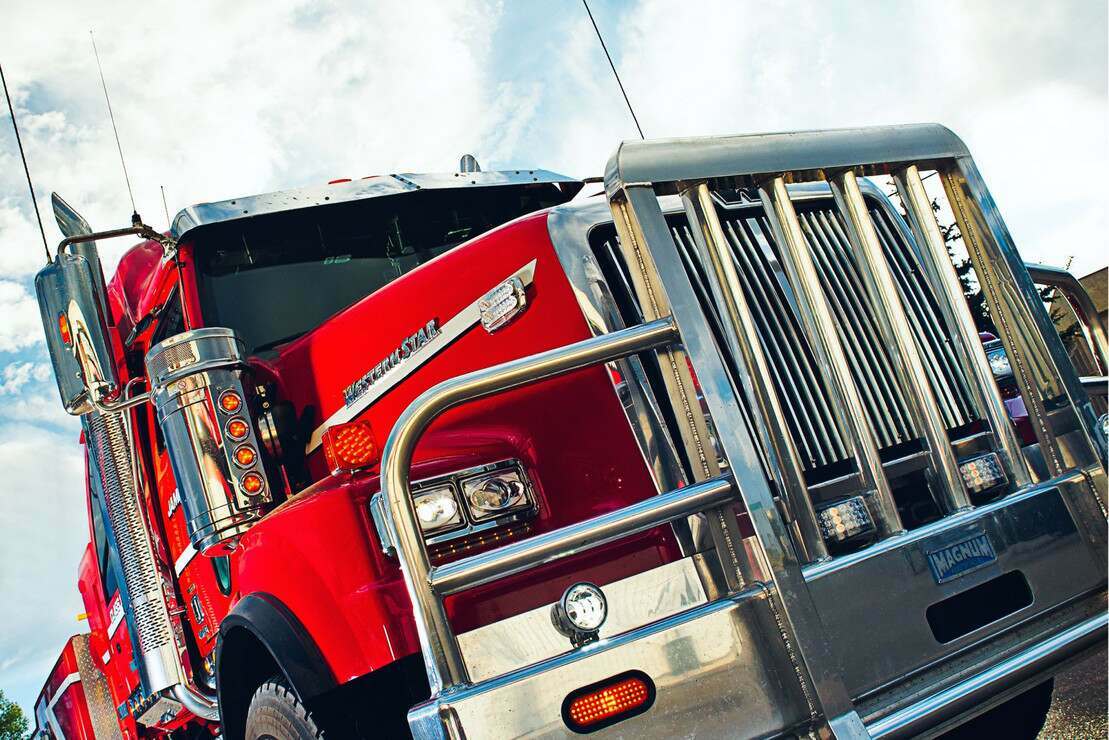

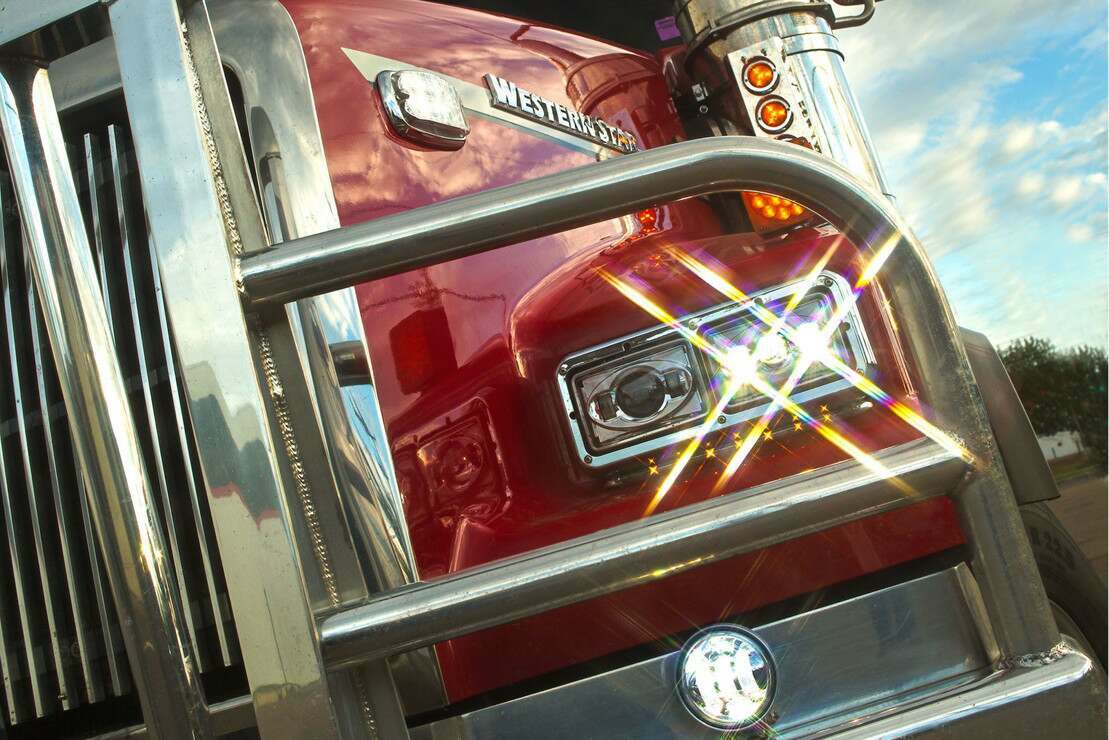

The Model 8800 Evolution 2 offers a safety solution offering improved light output, glare reduction, and light placement for heavy-duty trucking on-road. With the addition of a heated lens, you'll find better and long-lasting visibility in any condition!

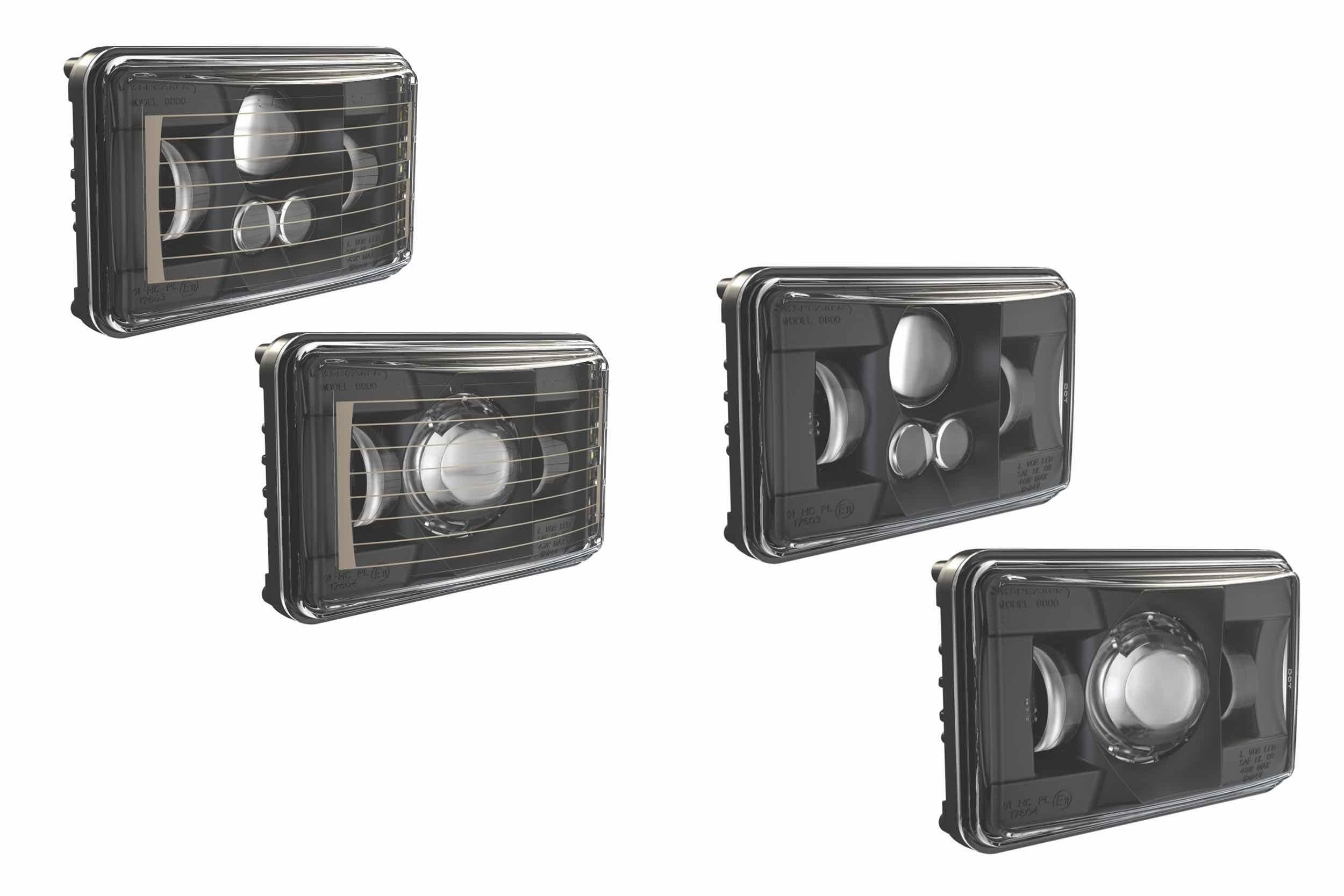

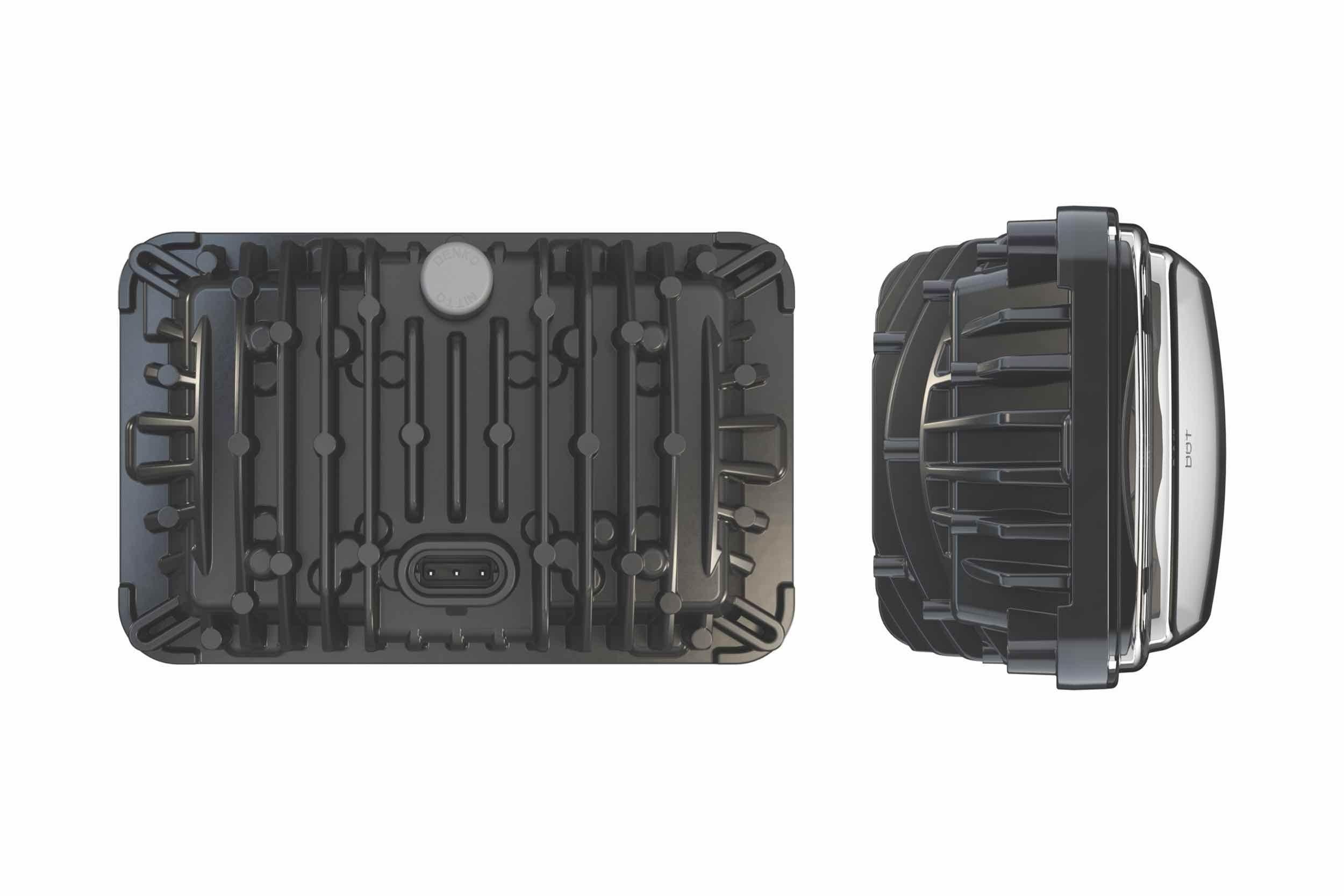

Features: Available with a SmartHeat Heating System that automatically de-ices headlight according to ambient temperature, Meets proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight, Drop-in replacements for typical buckets/panels used in heavy-duty trucks, Tough, die-cast housing, with added protection from salt spray for efficient thermal management, Superior condensation management, Street legal supporting DOT, Transport Canada ECE and Military standards & requirements, Offering both heated and non-heated 4 x6in LED upgrades.
5-Star NCAP-compliant Technology: The Model 8800 Evolution 2 will exceed the proposed FMVSS 108 standard in at least these three criteria, meeting 5-Star compliance: 1. Light output, measured in lux, 2. Beam pattern, resulting in minimal glare, 3. Light placement, as dictated by mounting locations prescribed for vehicles.

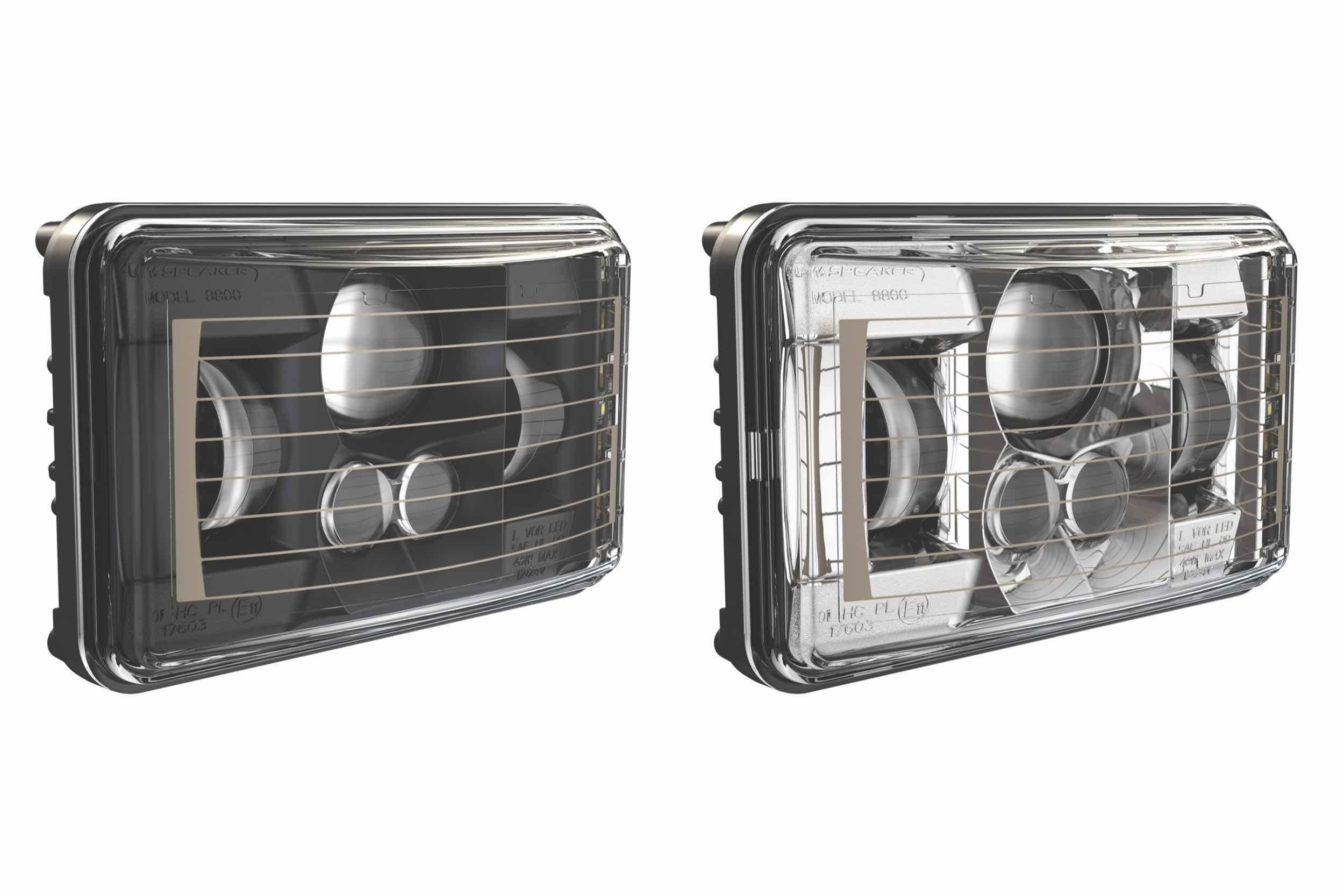

SmartHeat Heating System: The heated versions of the Model 8800 Evolution 2 feature a thermally conductive grid system that will de-ice the lens up to twice as fast as other lights. This intelligent system reacts to temperature changes on a real-time basis with no action required by the driver.
Street legal supporting DOT, ECE and Military standards: DOT versions are for use in the U.S. DOT-compliant guarantees that your lights are legal on the road, meeting section 108 requirements of the Federal Motor Safety Standards. Your DOT-compliance is clearly etched on the lens of the light. ECE versions are for use outside of the U.S. ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.

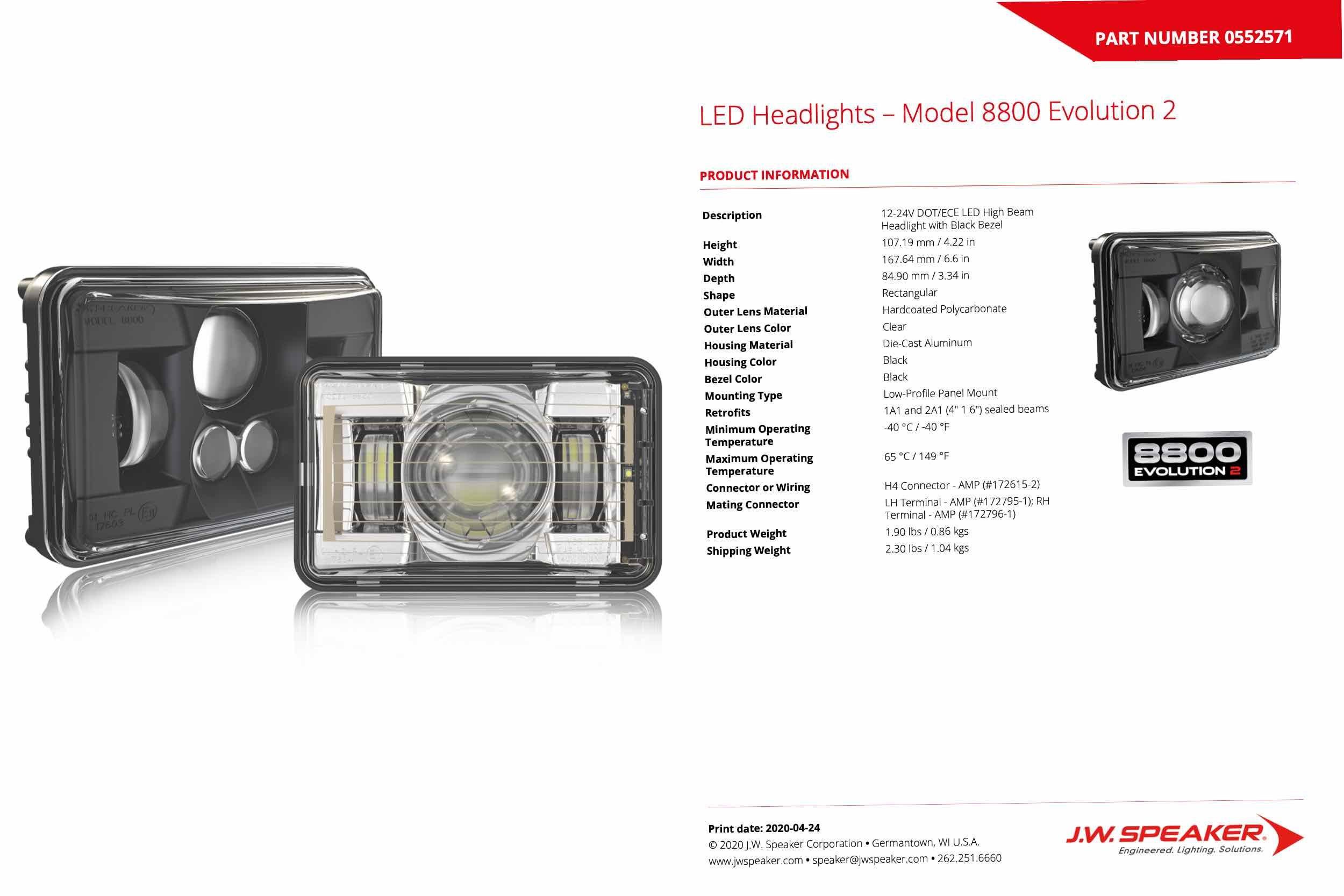

Height:::107.19 mm / 4.22 in|Width:::167.64 mm / 6.6 in|Depth:::84.90 mm / 3.34 in|Shape:::Rectangular|Outer Lens Material:::Hardcoated Polycarbonate|Outer Lens Color:::Clear|Housing Material:::Die-Cast Aluminum|Housing Color:::Black|Bezel Color:::Black|Mounting Type:::Low-Profile Panel Mount|Retrofits:::1A1 and 2A1 (4" 1 6") sealed beams|Minimum Operating Temperature:::-40 degC / -40 degF|Maximum Operating Temperature:::65 degC / 149 degF|Connector or Wiring:::H4 Connector - AMP (#172615-2)|Mating Connector:::LH Terminal - AMP (#172795-1); RH Terminal - AMP (#172796-1)|Product Weight:::1.90 lbs / 0.86 kgs|Shipping Weight:::2.30 lbs / 1.04 kgs|Input Voltage:::12-24 V|Operating Voltage:::9-32 V|Red Wire:::High Beam|Black Wire:::Ground|Current Draw:::2.10A @ 12V, 1.00A @ 24V
HEADLIGHT:::1x JW Speaker 8800 Evo 2 LED|WARRANTY:::Lifetime Limited|OTHER:::Instruction Card + JW Speaker Sticker
