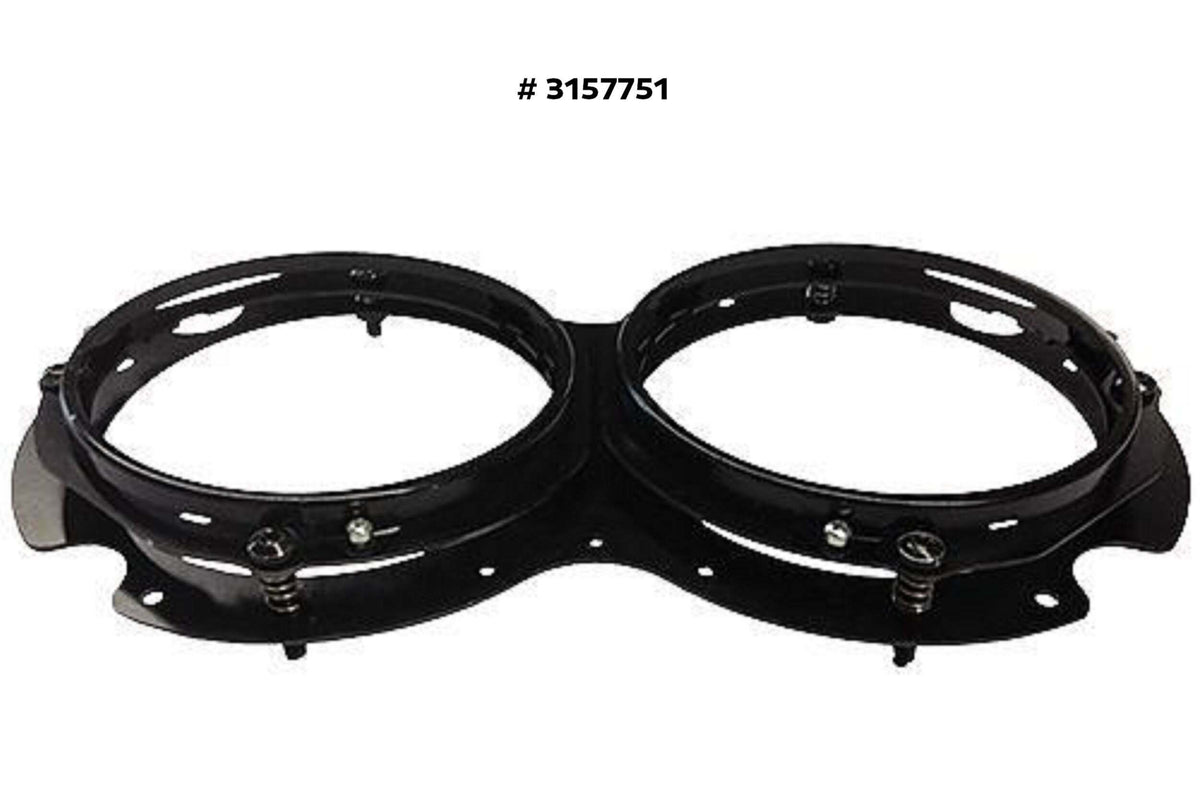

JW Speaker : 8630 LED Headlight PAR46 Ring (SET) (Universal) - 3157751
THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

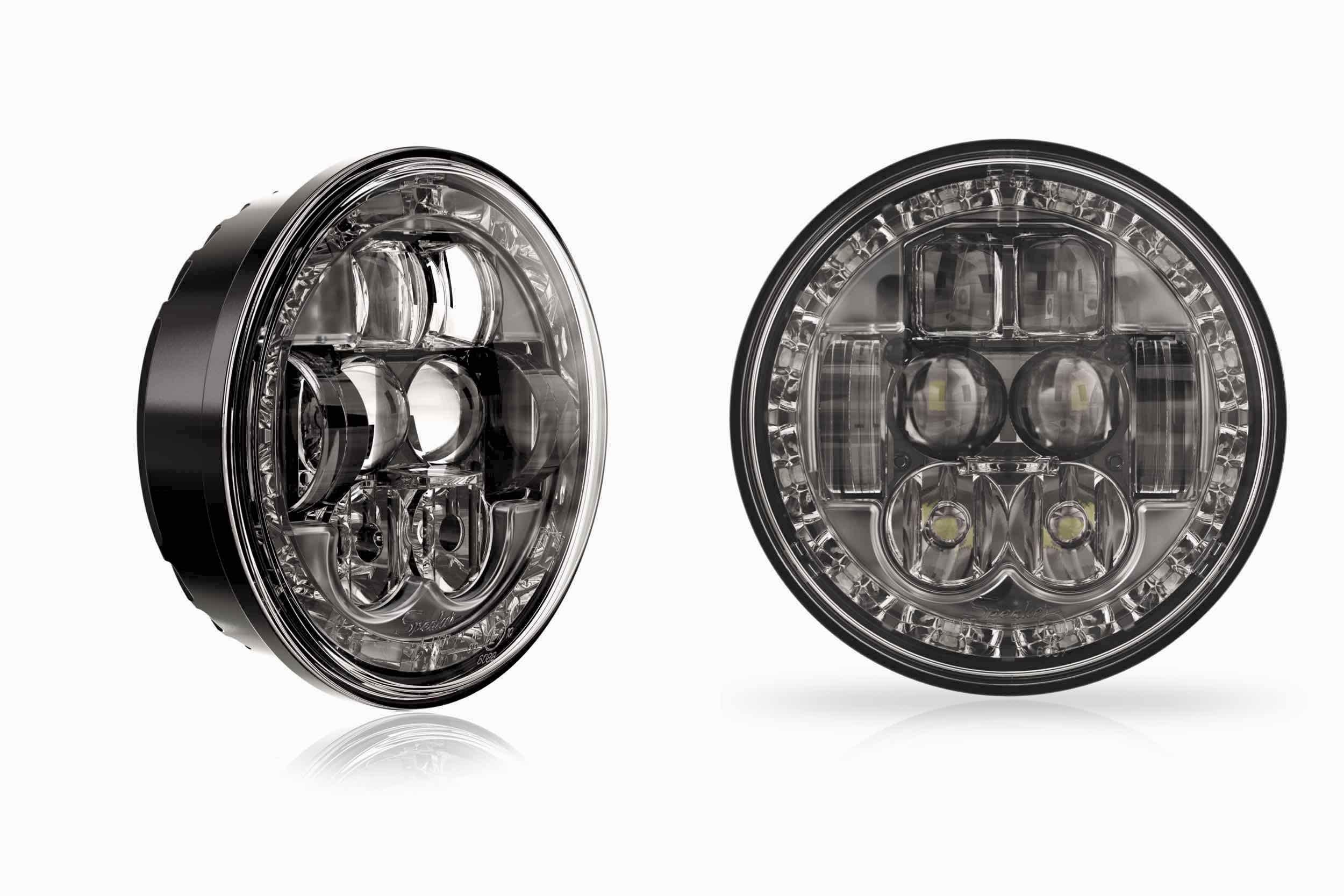

Designed for OEMs and aftermarket customers alike, the Model 8630 Evolution offers an upgraded replacement solution for 5.75in (PAR46) sealed beam headlights.

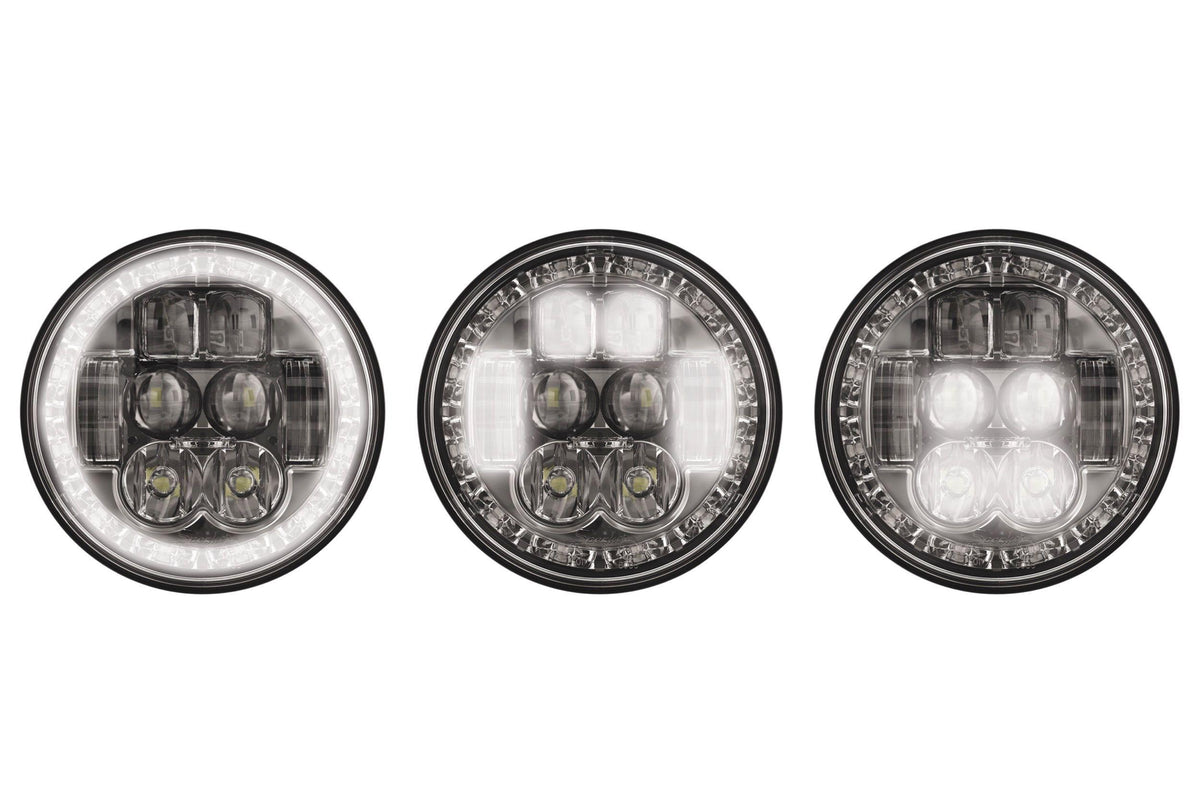

Using high-quality LEDs to provide superior output levels, the Model 8630 Evolution delivers improved performance over our original Model 8630 LED headlight. This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions.
Features: Combined high and low beam functions, Newer design boasts a 50% increase in high beam intensity, Easy plug and play installation with Delphi wire connector, Front position and DRL functions utilize a new outer ring at high intensities, ECE versions (not for use in the U.S.) feature DRL & FP functions.

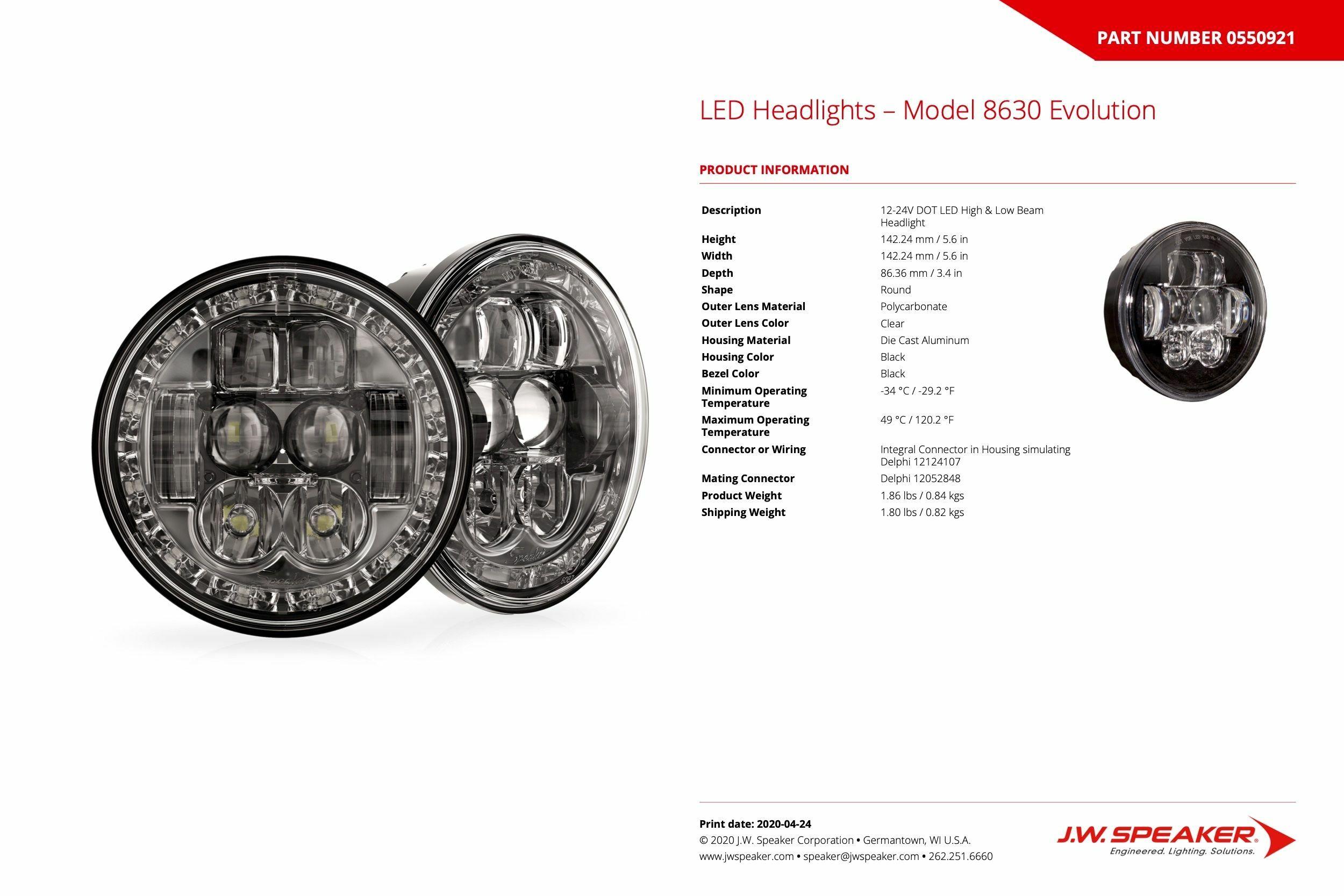

Height:::142.24 mm / 5.6 in|Width:::142.24 mm / 5.6 in|Depth:::86.36 mm / 3.4 in|Shape:::Round|Outer Lens Material:::Polycarbonate|Outer Lens Color:::Clear|Housing Material:::Die Cast Aluminum|Housing Color:::Black|Bezel Color:::Black|Minimum Operating Temperature:::-34 degC / -29.2 degF|Maximum Operating Temperature:::49 degC / 120.2 degF|Connector or Wiring:::Integral Connector in Housing simulating Delphi 12124107|Mating Connector:::Delphi 12052848|Product Weight:::1.86 lbs / 0.84 kgs|Shipping Weight:::1.80 lbs / 0.82 kgs|Input Voltage:::12-24V DC|Operating Voltage:::10-32V DC|Transient Spike Protection:::150V Peak @ 1 HZ-100 Pul|Current Draw:::2.20A @ 12V DC (Low Beam)|Current Draw:::1.70A @ 14V DC (Low Beam)|Current Draw:::1.10A @ 24V DC (Low Beam)|Current Draw:::3.50A @ 12V DC (High Beam)|Current Draw:::2.70A @ 14V DC (High Beam)|Current Draw:::1.70A @ 24V DC (High Beam)
HEADLIGHT:::1x JW Speaker 8630 Evo LED|OPTIONAL MOUNTING RING:::1x JW Speaker PN 8200001|WARRANTY:::Lifetime Limited|OTHER:::Instruction Card + JW Speaker Sticker
