JW Speaker : 8620 - 12V LED Headlight (CHROME) (Universal) - 553011
THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

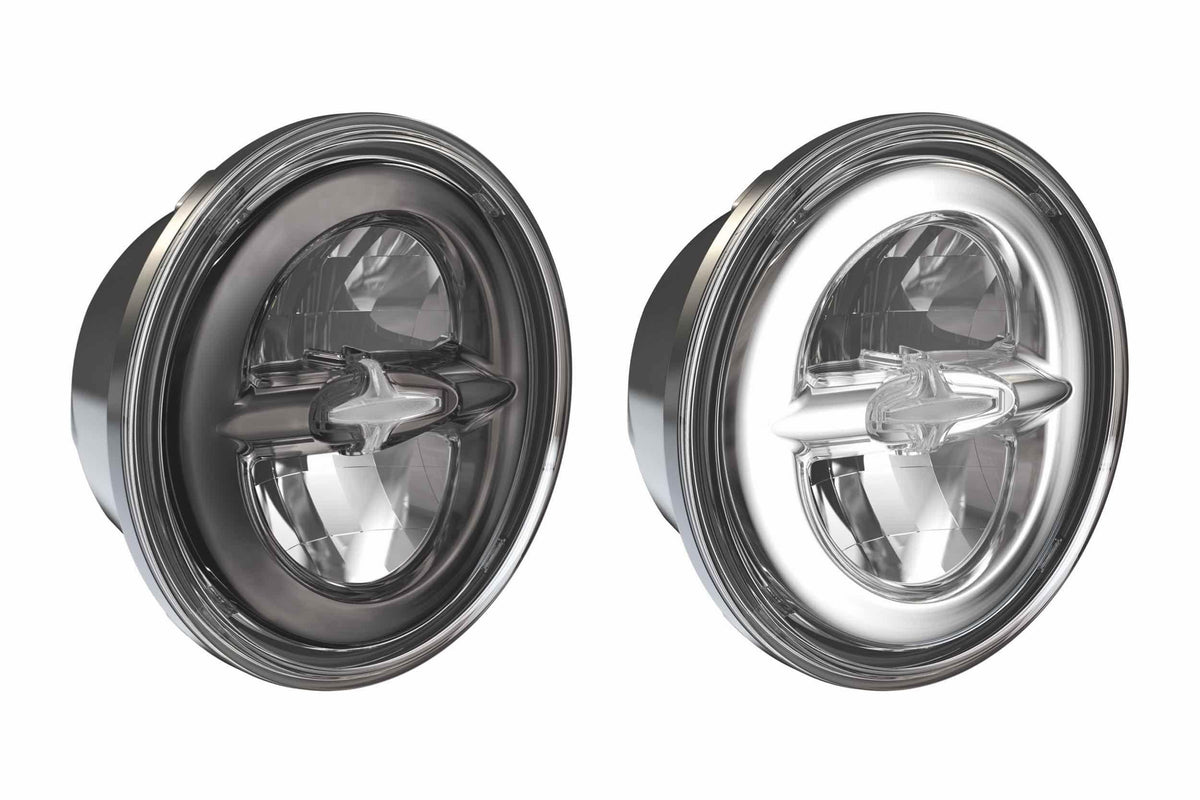

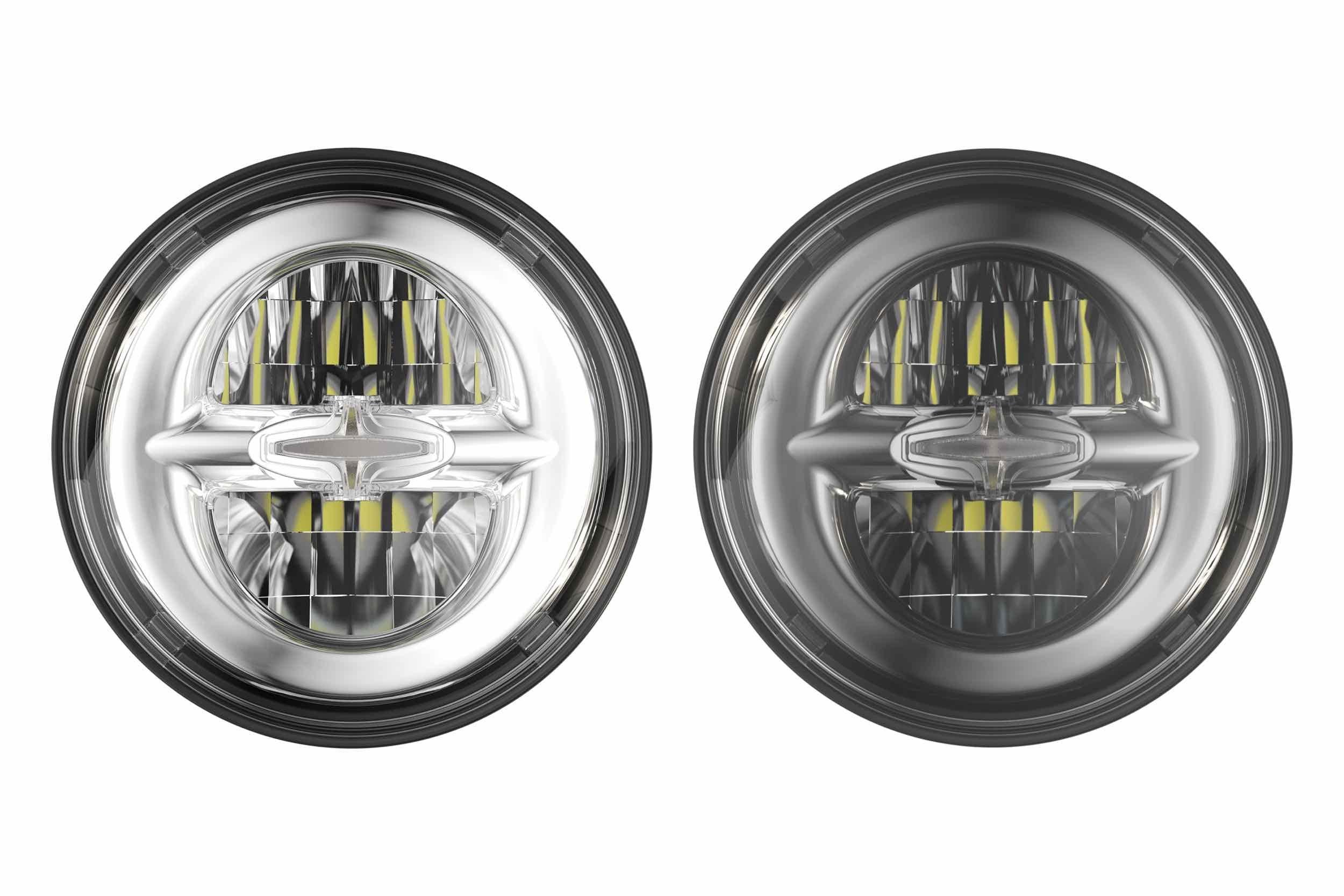

The Model 8620is a 5.75in round reflector based LED motorcycle headlight specifically designed for our motorcycle riders who prefer the classic reflector styling.

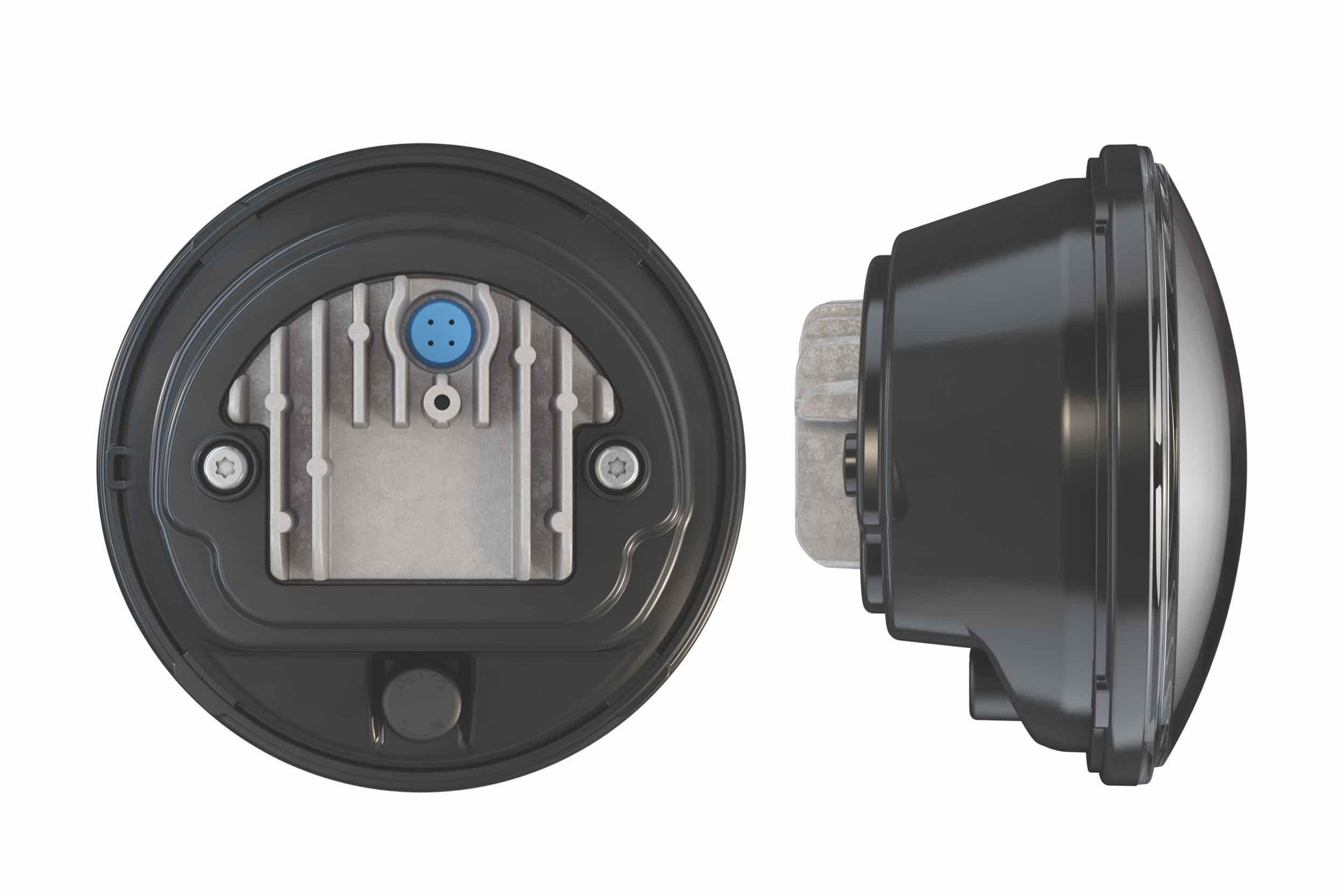

The J.W. Speaker Model 8620offers a best in class DOT & ECE-compliant LED headlight with the more classic reflector styling preferred by some customers. The two-tone, die-cast aluminum housing and state-of-the-art LEDs not only deliver premium performance, but a classic look.
Features: Two-tone die-cast aluminum housing offering rugged durability and state-of-the-art LEDs, Chrome or dark chrome retro-styled face, Engineered to be dual-compliant (DOT & ECE) fixed headlight, making it 100% street legal anywhere in the world!
Fitment: Use our Motorcycle Garage to enter the Make, Model & Year of your motorcycle and find the headlight and mounting hardware that works with your bike.
Refer to our Motorcycle Headlight Fitment Guide to see if your bike needs a Mounting Ring Kit, available for fairing mounts on older model bikes.

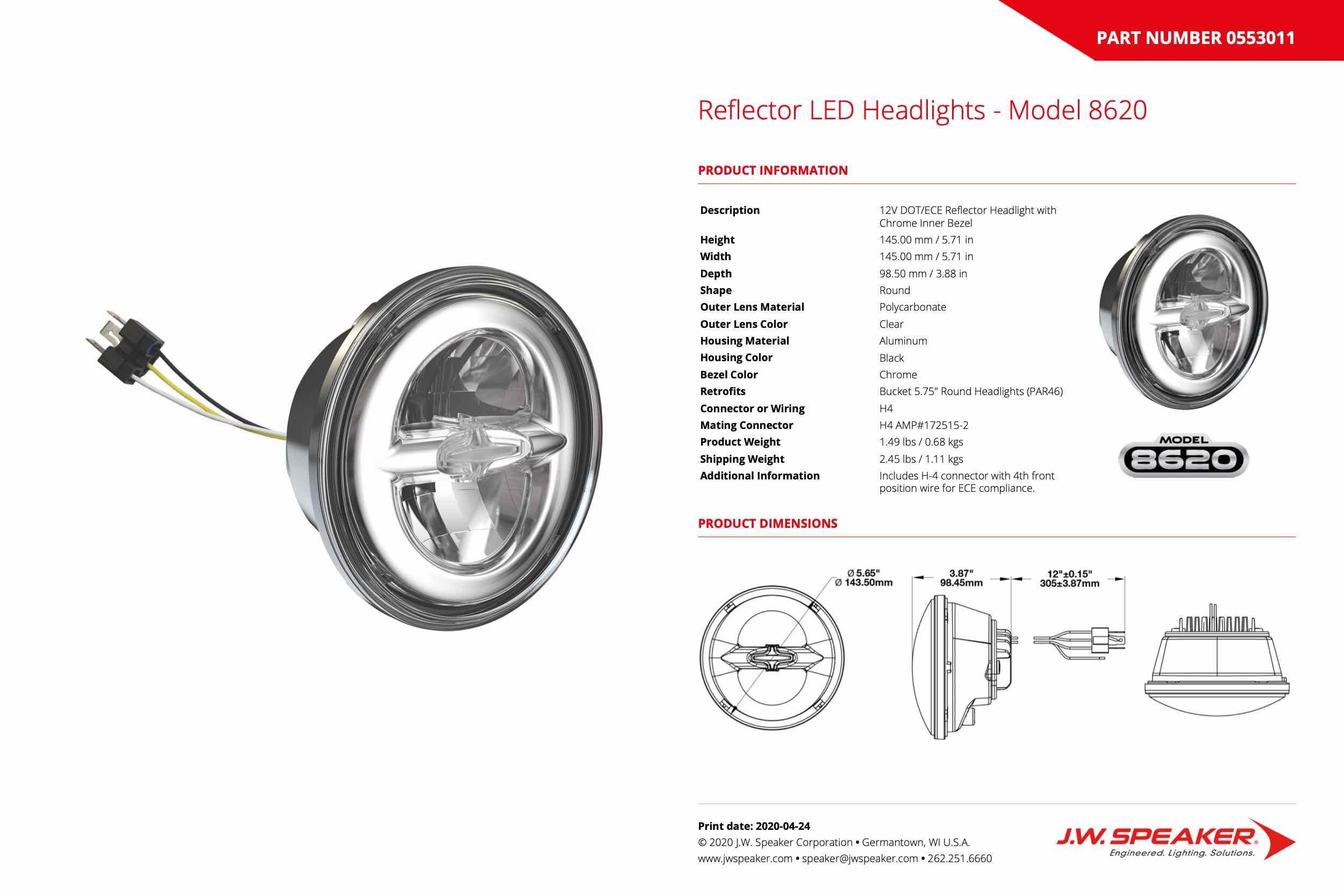

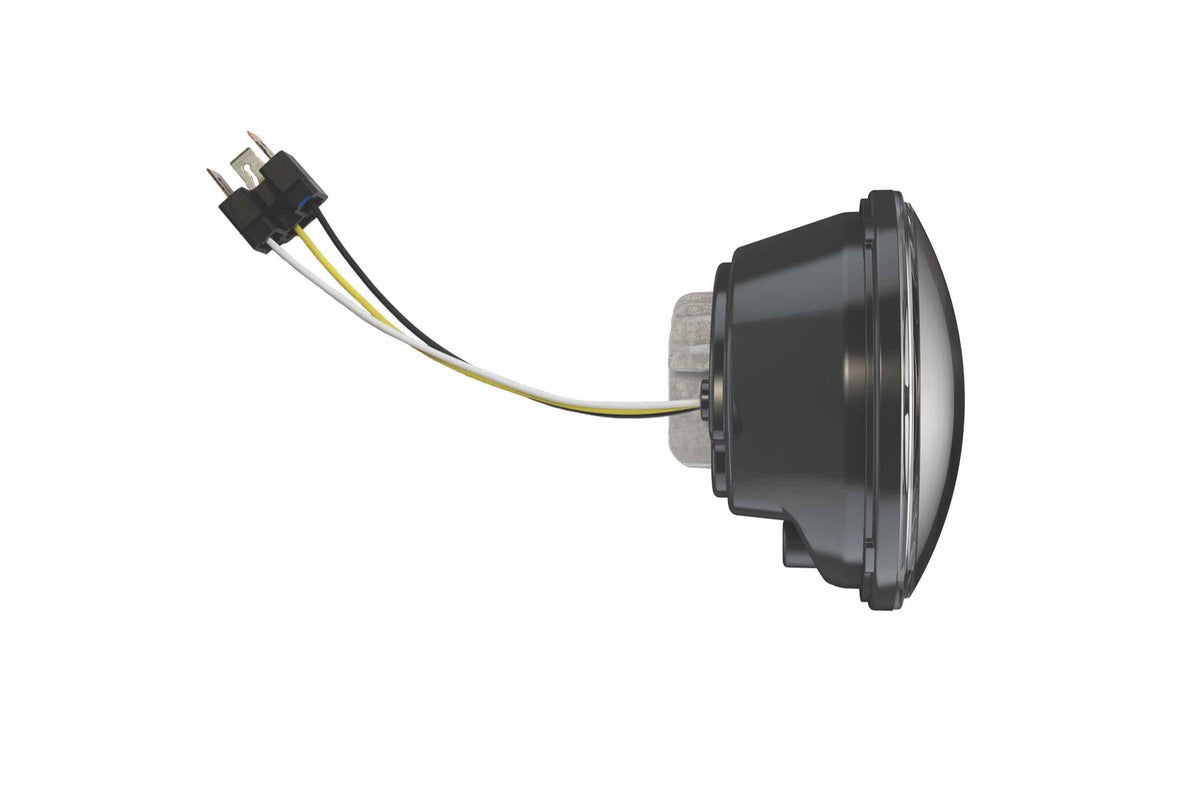

Height:::145.00 mm / 5.71 in|Width:::145.00 mm / 5.71 in|Depth:::98.50 mm / 3.88 in|Shape:::Round|Outer Lens Material:::Polycarbonate|Outer Lens Color:::Clear|Housing Material:::Aluminum|Housing Color:::Black|Bezel Color:::Chrome|Retrofits Bucket:::5.75" Round Headlights (PAR46)|Connector or Wiring:::H4|Mating Connector:::H4 AMP#172515-2|Product Weight:::1.49 lbs / 0.68 kgs|Shipping Weight:::2.45 lbs / 1.11 kgs|Additional Information:::Includes H-4 connector with 4th front position wire for ECE compliance.|Input Voltage:::12V DC|Operating Voltage:::9-16V DC|Black Wire:::Ground|White Wire:::High Beam|Yellow Wire:::Low Beam|Red Wire:::Front Position|Current Draw:::2.67A @ 12V DC (High Beam), 1.67A @ 12V DC (Low Beam), 0.13A @ 12V DC (Front Position)
HOUSING:::1x JW Speaker Model 8620 Universal LED Headlight|PART NUMBER:::553011 or 555931|WARRANTY:::Lifetime Limited|OTHER:::Instruction Card + JW Speaker Sticker
