JW Speaker : 771F-12/48V XD LED Worklamp w/Harness (Universal) - 1705911
THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

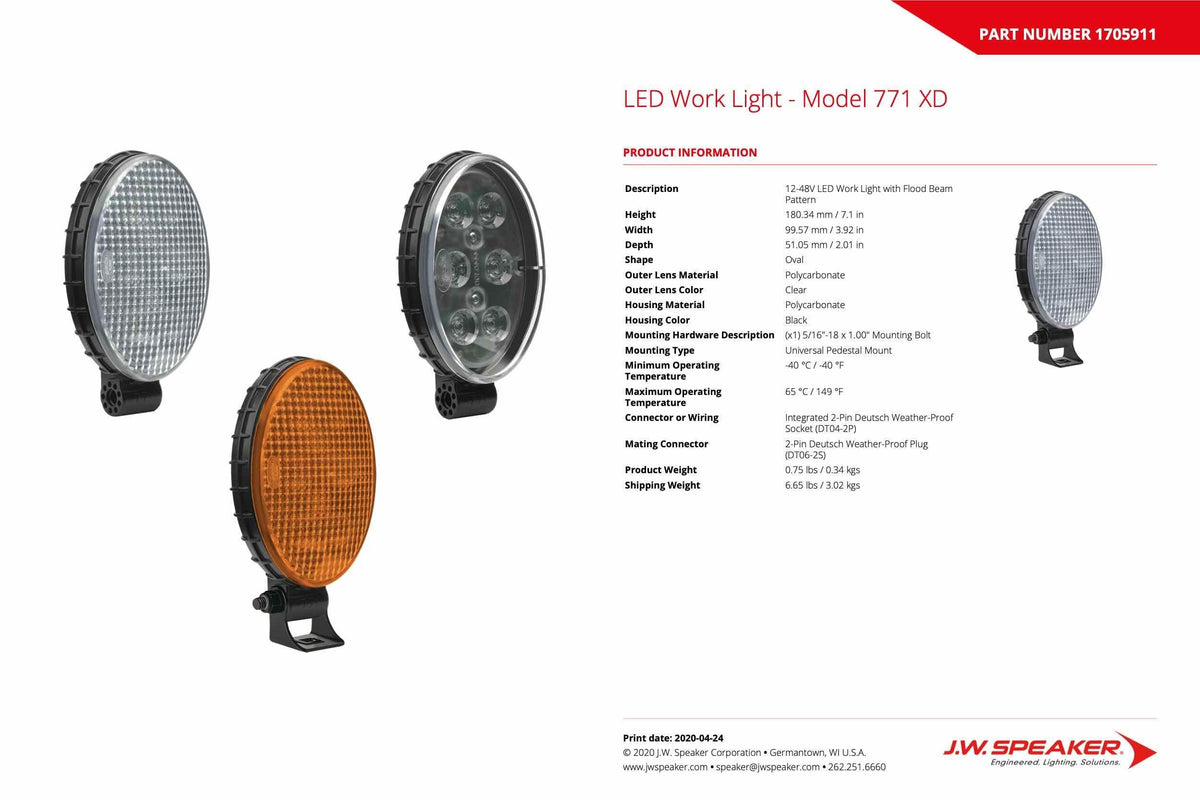

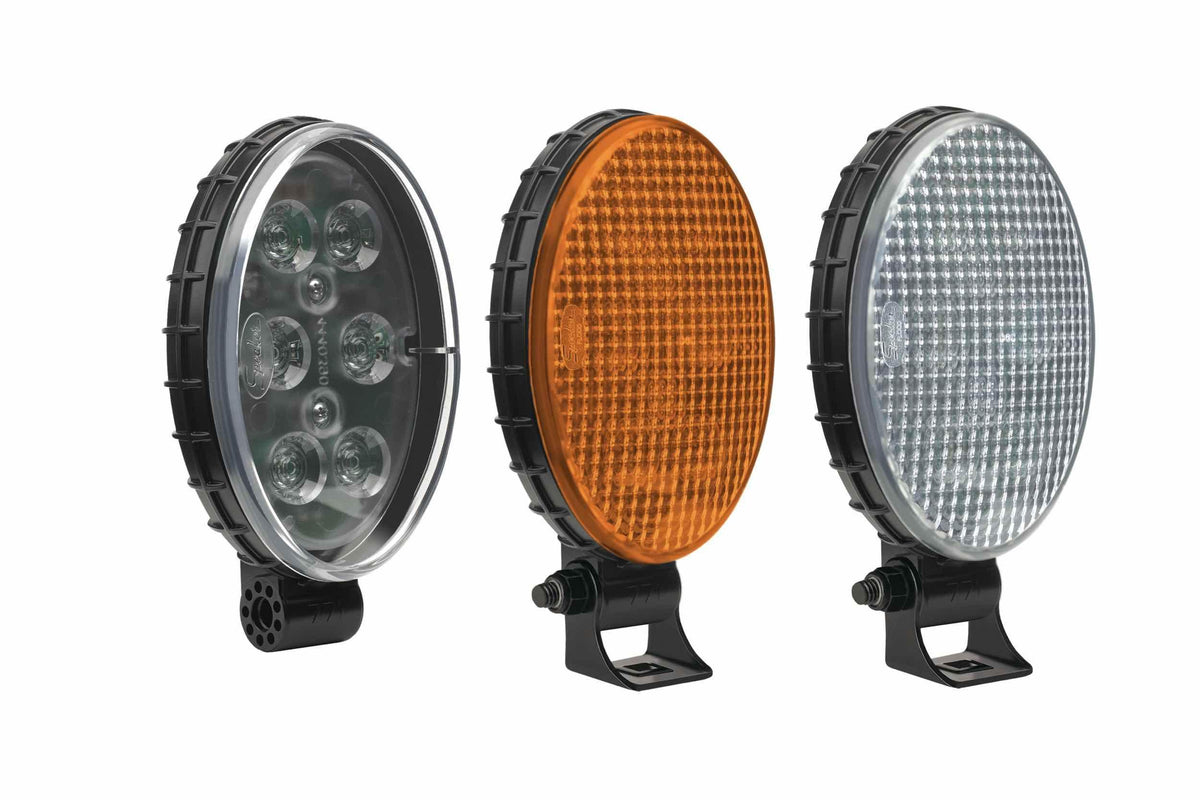

Functionally identical to the Model 770 XD, the Model 771 XD is available in DC configuration and comes in your choice of beam patterns. It features a polycarbonate housing and lens for maximum protection.

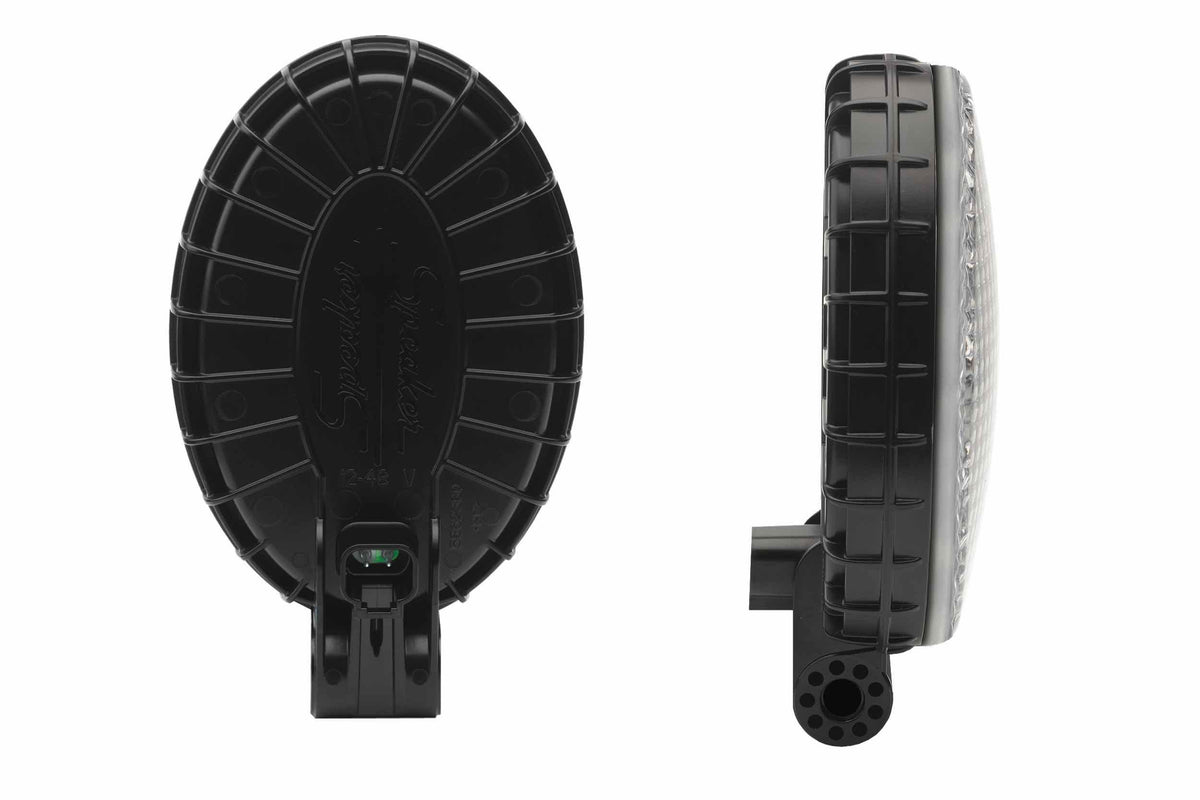

Features: UV-resistant polycarbonate lens, Universal mount, Horizontal oval version available (Model 770 XD).
Height:::180.34 mm / 7.1 in|Width:::99.57 mm / 3.92 in|Depth:::51.05 mm / 2.01 in|Shape:::Oval|Outer Lens Material:::Polycarbonate|Outer Lens Color:::Clear|Housing Material:::Polycarbonate|Housing Color:::Black|Mounting Hardware Description:::(x1) 5/16"-18 x 1.00" Mounting Bolt|Mounting Type:::Universal Pedestal Mount|Minimum Operating Temperature:::-40 degC / -40 degF|Maximum Operating Temperature:::65 degC / 149 degF|Connector or Wiring:::Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)|Mating Connector:::2-Pin Deutsch Weather-Proof Plug (DT06-2S)|Product Weight:::0.75 lbs / 0.34 kgs|Shipping Weight:::6.65 lbs / 3.02 kgs|Input Voltage:::12-48V DC|Operating Voltage:::10-55V DC|Transient Spike Protection:::330V Peak @ 1 HZ-100 Pulses|Red Wire:::Positive|Black Wire:::Negative|Current Draw:::1.00A @ 12V DC|Current Draw:::0.48A @ 24V DC|Current Draw:::0.33A @ 36V DC|Current Draw:::0.25A @ 48V DC
HOUSING:::1x JW Speaker Model 771 LED Oval Work Light|PART NUMBER:::1705911|WARRANTY:::Lifetime Limited|OTHER:::Instruction Card + JW Speaker Sticker
