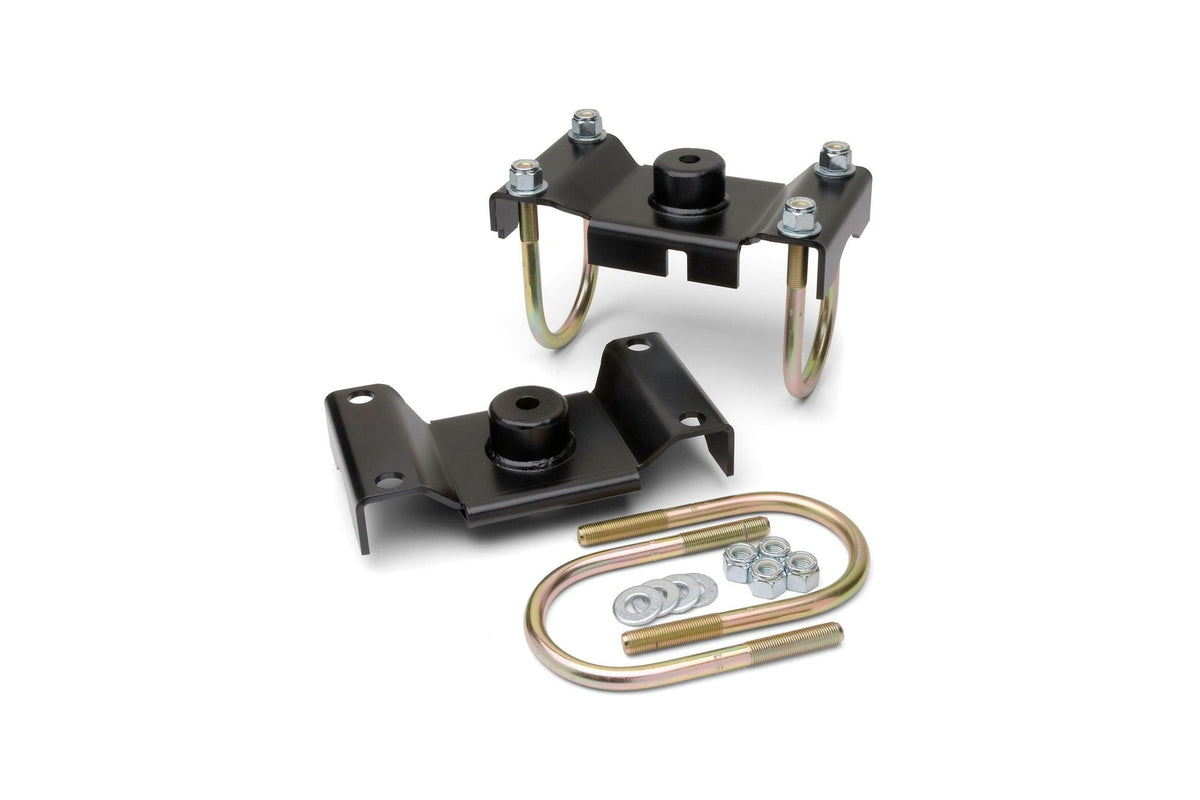

JKS Manufacturing Adjustable Rear Spring Correction Mounts (2007-2018 Wrangler, Wrangler JK) - JKS2400
Replacement spring mount allows realignment of coil spring position on axle housing
Adjustable design compensates for axle housing rotation to ensure proper alignment with upper spring mount
Prevents coil springs from bowing outward as suspension compresses and eliminates interference with track bar
High-torque U-bolt installation offers exceptional clamping strength with no welding required
Compatible with Coil Spring Retainers and Rear Trackbar Brace available separately from JKS
Correct your Wrangler JK's rear spring alignment after pinion angle changes with adjustable rear spring correction mounts. The clamp on design can be rotated around the axle for perfect alignment while tall coil spring retainers secure each spring. As more and more Jeep owners discover the advantages of a CV rear driveshaft on Wrangler JK models, the rotated axle housing impacts rear coil springs mounting. When the axle housing is rotated, so are the lower spring mounts which can cause the coil springs buckle and bow unnaturally. On JK models this forces the passenger side coil spring into the rear track bar, creating a serious problem that will eventually cause at least one of these two vital components to fail. JKS mounts correct this issue -- allowing perfect coil spring alignment. Installation requires grinding and cutting. Includes two powder coated mounts plus zinc-plated U-bolts.
Since 1989, JKS Manufacturing has developed some of the world?s most widely used and respected products for Jeep vehicles. It all started when we pioneered the original Quick Disconnect brand of quick-release sway bar disconnects. Since then our product range has expanded to include such favorites as the ACOS line of height-adjustable coil spring spacers, and perhaps our most advanced creation to date, J-Spec Suspension systems including the JK Front Coilover Conversion.
