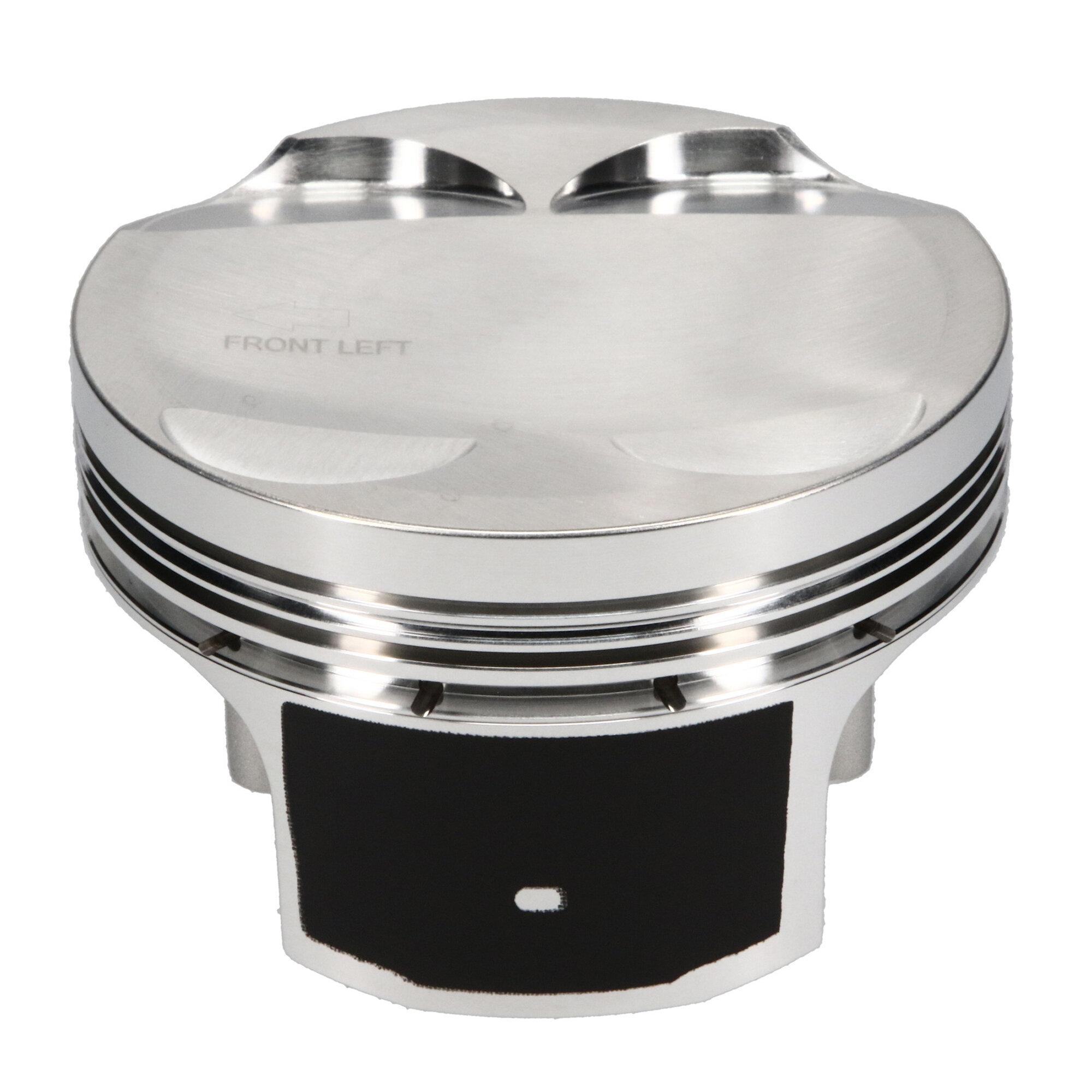

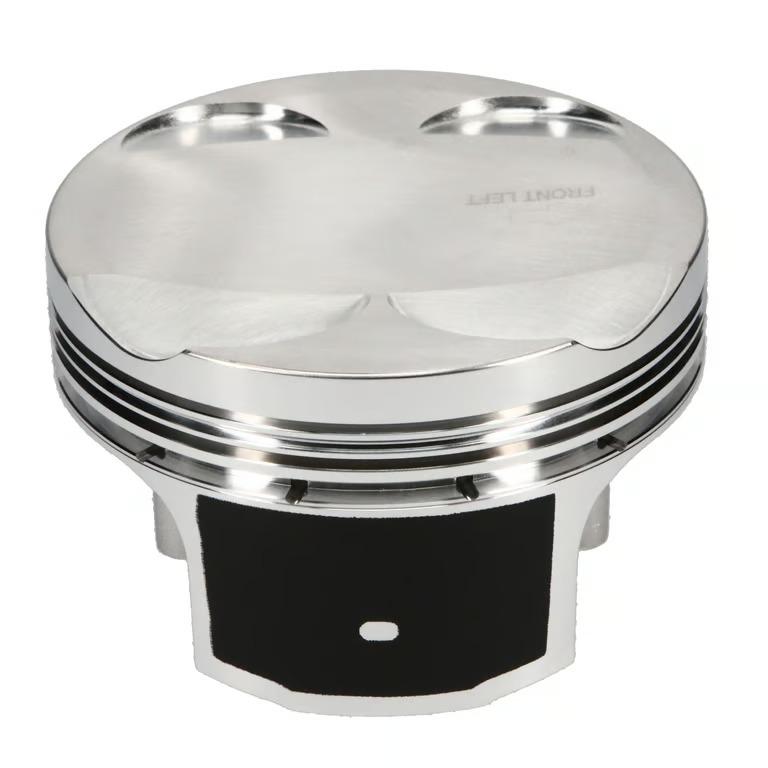

JE Pistons Piston Set, 2618, Inv Dome/Dish, 3.572 Bore, 1.320 CD, 0.866, Pin Dia, Set of 8. - 314699
JE’s Modular Ford piston line utilizes a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower engines. Lightweight and extremely durable, these pistons are machined for modern 1.0mm, 1.2mm, 2.8mm and 1.2mm, 1.5mm, 3.0mm rings.
Quantity Per - Set of 8.
Bore (in) - 3.572
Bore (mm) - 90.73
Piston Material - 2618
Pin Part Number - 866-2250-15-51C
Pin Included(Yes/No) - Yes
Pin Diameter (mm) - 22
Pin Diameter (IN) - 0.866
Ringset Part Number - JG3208-3571-0
Ringset Included(Yes/No) - No
Retainer Lock Part Number - 866-063-MW
Lock Included(Yes/No) - Yes
Oil Rail Support Part Number (If Required) -
Oil Rail Support Included (Yes/No) - No
Left or Symmetrical Head Gasket - FD1010-039
Right Head Gasket - FD1011-039
Lethal Performance is proud to offer the entire line of JE Pistons products!
Since 1912, JE Pistons has continued to evolve their manufacturing processes, currently offering racing pistons either off the shelf or fully custom. JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE’s 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
