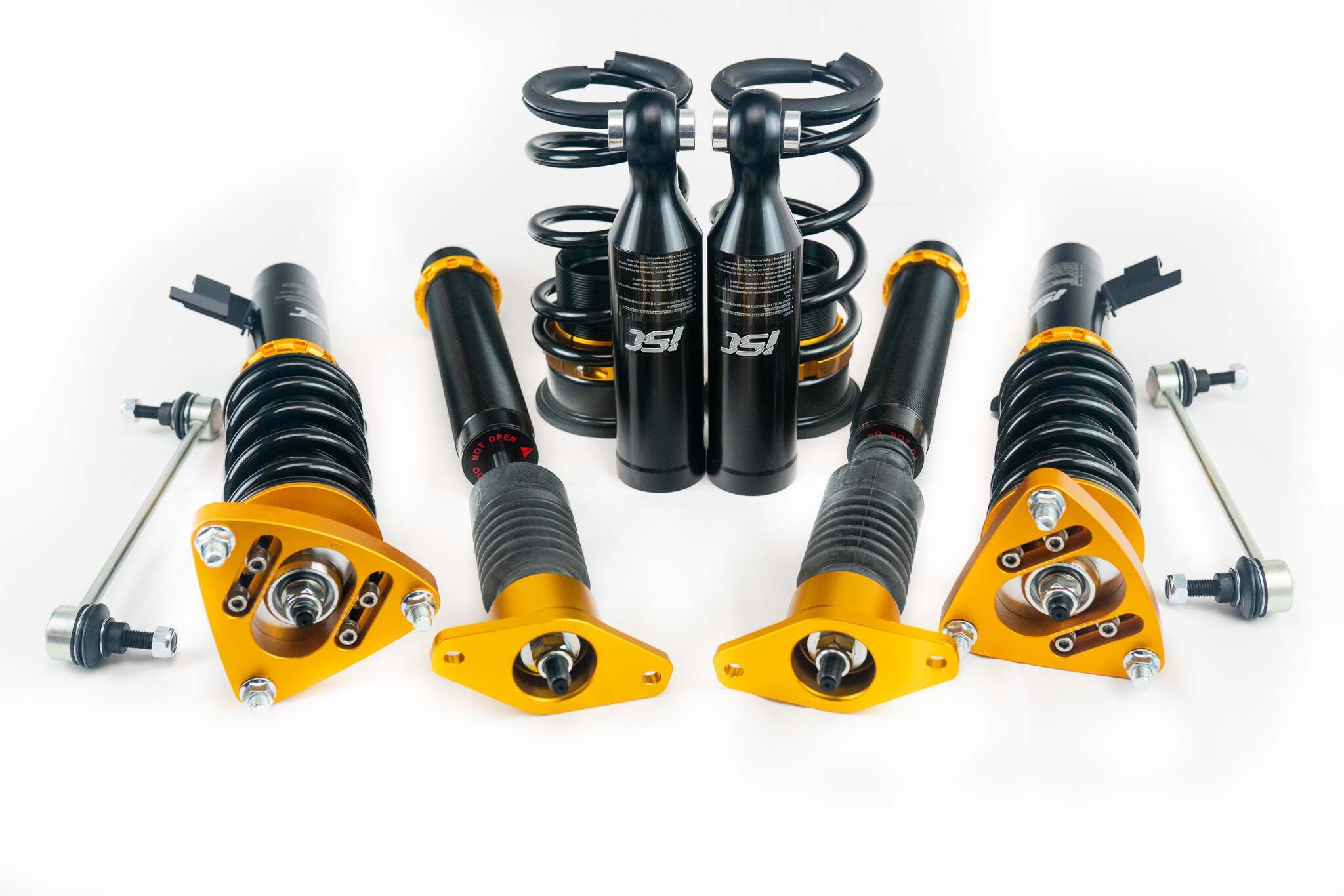

ISC Suspension N1 Coilover Kit Track/Race (2013-2016 CX-5) - ISC-M122-T
The ISC V2 N1 coilover is the optimum suspension tool for improved handling for your street or weekend track car. The ISC V2 N1 comes standard with pillowball upper mounts and camber plates when applicable. This suspension is perfect for someone looking for performance adjustability (height and damping) and other quality features. Over a decade of experience and feedback has allowed the ISC V2 N1 to evolve into what it is today
a premium suspension for car enthusiasts. The ISC V2 N1 coilover features a Limited Lifetime Warranty to the original owner. Our Coilovers are a single cylinder monotube design with 32 way adjustable damping to dial in ride quality and performance to your preference. Preload adjustment is separate from ride height adjustment on all of our coilovers this allows the vehicle to be lowered without sacrificing ride quality. Our springs are made from SAE9254 steel dyno tested over 500 000 times with under 5% deformation. Select ISC V2 coilovers are also compatible with our ISC Triple S upgraded coilover springs for additional customization and performance. All ISC coilovers are ISO and ARTC Certified. New Features for the ISC V2 N1 Coilover Include: New V2 Thrust Bearings: Redesigned thrust bearings now included on all the N1 configurations that come with camber plates. Our all new V2 thrust bearings feature a lower stack height and sealed self-lubricated Japanese Koyo bearings making them virtually maintenance free. New V2 Adjustable End links: When applicable our V2 N1 and V2 Basic kits will include updated adjustable end links (check application guide to determine adjustable end link eligibility). Spring Perch Isolator Pads: Revised hardened spring perch isolator pads reduce friction allowing for more efficient preload adjustment and a longer product lifespan. Other New Features: Copper based anti-seize lubricant now included for coilover setup/installation.
ISC Coilover Covers are now included with every coilover kit we offer. Our 3mm neoprene protective covers will help shield your coilovers from the elements and allow for seamless height adjustment for years to come. Whether you have a dedicated track car or a daily driver the ISC coilover covers will help protect your investment.
Certifications: ISO9001 2000R Certified and ARTC Certified
Dyno tested over 500 000 times on compression inspection with less than 5% deformation. Fully customizable spring rates (spring rates vary depending on application custom spring rates are available)
Ride Height Adjustable: Full length height adjustability of up to 3 inches on most applications high quality T6061 aluminum alloy used for all adjustment locks to provide a lightweight design that holds spring and vehicle down force
Bound Adjustable with Separate Spring Locks
Preload is separate from ride height the lower you go the ride quality stays the same
Warranty: ISC Suspension offers a LIFETIME WARRANTY to the original purchaser against defects in workmanship and material. For more info on this please refer to ISC Warranty
Pillowball Upper mounts: For optimal performance pillowball upper mounts are available on most ISC N1 coilovers (see application guide for specifics)
Thrust Bearing: Thrust bearings help to eliminate the chance of spring bind
a common side effect of running aftermarket coilovers
When your vehicle suspension allows (vehicle specific please check our application guide) all ISC N1 coilovers come with adjustable camber plates as standard
3 degrees of camber adjustment
T6061 anodized aluminum top plate
Piston Design: 32-way adjustable dampening Shafts are valved according to the spring rate Shock dyno is used to ensure quality and consistent results
Single Cylinder Design: Mono-tube damper with high pressure nitrogen larger cylinder and piston design to advance driving stability and dexterity
Threaded portion of shaft is powder coated and salt spray coated for street durability (suggest using anti seize or protective products when installing coilovers for more protection from the elements if exposed to snow and salt)
ISC Springs: Made from high quality SAE9254 steel
