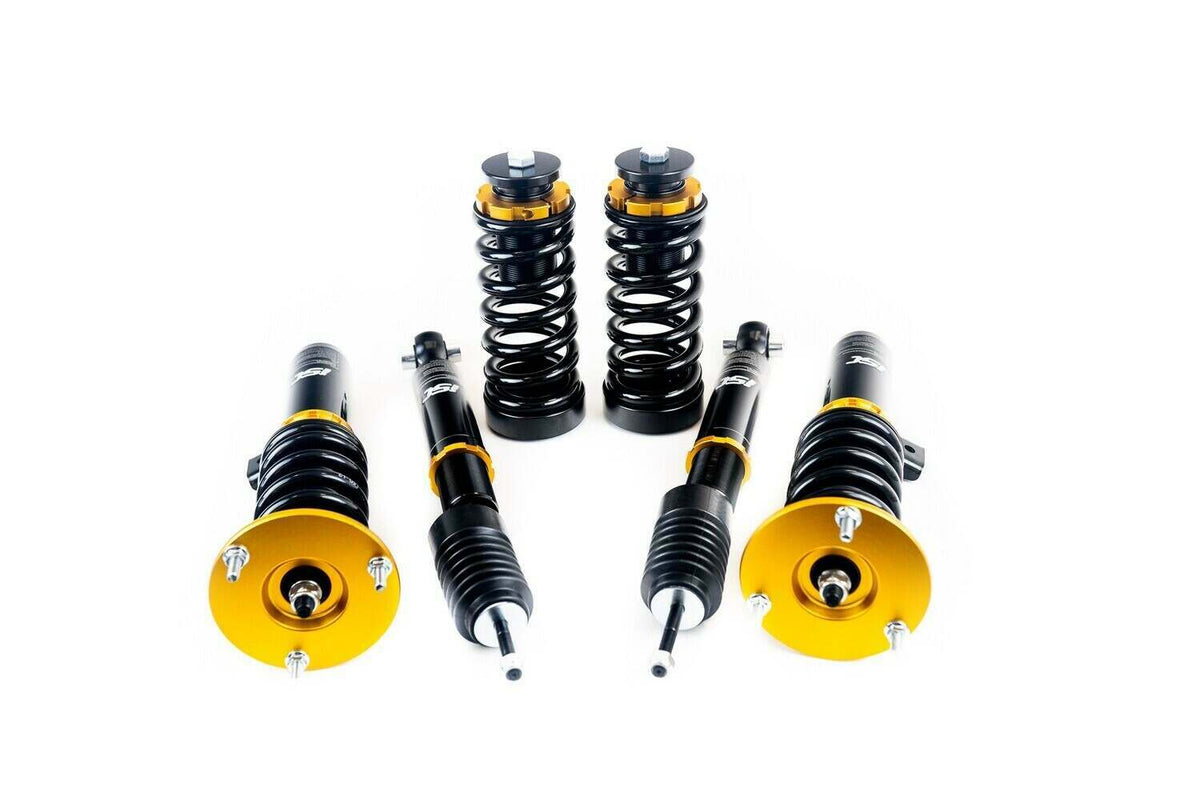

ISC Suspension Basic Coilover Kit Track/Race With Triple S Upgraded Coilover Springs (2017-2023 3) - ISC-T-201B-T-TS
Simplified Performance For The Street Enthusiast. The ISC V2 Basic coilover has all the great features of the ISC V2 N1 but has rubber isolated top mounts instead of a camber plate/pillowball application in the front. Many street enthusiasts may not need to have adjustable camber plates so the ISC V2 Basic was made in order to simplify the product and eliminate any feature that may not be used for your average street car that is not going for track performance or aggressive camber/stance. This also allows us to offer the ISC V2 Basic coilover at a lower price point to our customers without sacrificing quality. The ISC V2 Basic coilover features a Limited Lifetime Warranty to the original owner. Our Coilovers are a single cylinder monotube design with 32 way adjustable damping to dial in ride quality and performance to your preference. Preload adjustment is separate from ride height adjustment on all of our coilovers this allows the vehicle to be lowered without sacrificing ride quality. Our springs are made from SAE9254 steel dyno tested over 500 000 times with under 5% deformation. Select ISC V2 Basic coilovers are also compatible with our ISC Triple S upgraded coilover springs for additional customization and performance. All ISC coilovers are ISO and ARTC Certified. New features for the ISC V2 Basic Coilover include: New V2 Adjustable End links: When applicable our V2 N1 and V2 Basic kits will include updated adjustable end links (check application guide to determine adjustable end link eligibility) Spring Perch Isolator Pads: Revised hardened spring perch isolator pads reduce friction allowing for more efficient preload adjustment and a longer product lifespan. Other New Features: Copper based anti-seize lubricant now included for coilover setup/installation
ISC Coilover Covers are now included with every coilover kit we offer. Our 3mm neoprene protective covers will help shield your coilovers from the elements and allow for seamless height adjustment for years to come. Whether you have a dedicated track car or a daily driver the ISC coilover covers will help protect your investment.
Pillowball Upper mounts: For optimal performance pillowball upper mounts are available on most ISC N1 coilovers (see application guide for specifics)
Ride Height Adjustable: Full length height adjustability of up to 3 inches on most applications High quality T6061 aluminum alloy used for all adjustment locks to provide a lightweight design that holds spring and vehicle down force
Bound Adjustable with Separate Spring Locks
Preload is separate from ride height the lower you go the ride quality stays the same
The ISC Triple S Upgraded Coilover Spring kit have springs made of high tensile steel allowing for increased spring stroke and better performing ride by having less coils per spring when compared to a standard coilover spring
They are about 20% lighter than a standard steel coilover spring a great upgrade for both street and track cars
Certifications: ISO9001 2000R Certified and ARTC Certified
Warranty: ISC Suspension offers a LIFETIME WARRANTY to the original purchaser against defects in workmanship and material. For more info on this please refer to ISC Warranty
Thrust Bearing: Thrust bearings help to eliminate the chance of spring bind
a common side effect of running aftermarket coilovers
Front Camber Plates: When your vehicle suspension geometry allows (vehicle specific please check our application guide) all ISC N1 coilovers come with adjustable camber plates as standard
Up to 3 degrees of camber adjustment
T6061 anodized aluminum top plate
Piston Design: 32-way adjustable dampening Shafts are valved according to the spring rate Shock dyno is used to ensure quality and consistent results
Single Cylinder Design: Monotube damper with high pressure nitrogen Larger cylinder and piston design to advance driving stability and dexterity Threaded portion of shaft is powder coated then salt spray coated for optimum durability
We suggest also using anti seize or other protective products when you install your coilovers for even further protection from the elements if you are exposed to snow and salt
ISC Springs: Made from high quality SAE 9254 steel Dyno tested over 500 000 times on compression inspection with less than 5% deformation
Fully customizable spring rates (spring rates vary depending on application custom spring rates are available)
