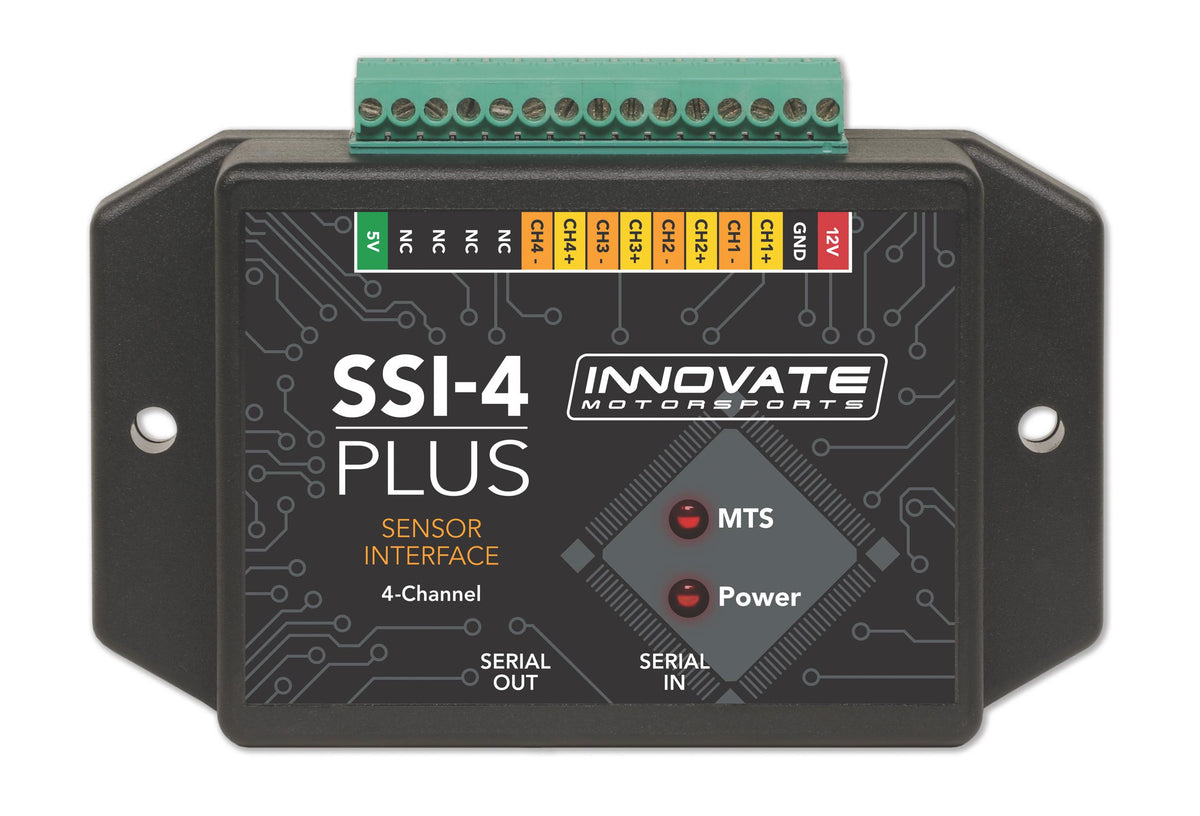

Innovate SSi-4 Plus: Sensor Interface For Mts 4-Channel - 39140
The Ssi-4 Plus Will Allow The Capture Of Data From 4 External Sensors. These Sensors Can Be Frequencies Such As Engine Rpm And Speed Sensors Or 0-5V References Like Map Sensors And Pressure Transducers. The Ssi-4 Plus May Be Used As A Stand-Alone System Or Integrated With Other Innovate Motorsports Mts Products To Create A Log Chain. The Ssi-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Ssi-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L Lm-2 Lc-2 And Tc-4 Plus.
Simple sensor device that adds 4-inputs to an MTS Log Chain
Channel 1 and 2 inputs can be configured for RPM Speed (VSS) Frequency and 0-5 volt. In addition to the above the channel 2 input can be used for duty cycle or dwell.
Channel 3 and 4 inputs can be used for 0-5 volt
5 volt output to power external sensors
The SSI-4 PLUS includes the SSI-4 PLUS Serial Program Cable Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices) and manual.
Innovate Motorsports develops
markets
manufactures
and supports universal digital tuning tools for internal combustion engines. The company's core technologies are patent-pending digital circuits that improve greatly on current
mostly analog
designs. The company's product lines includes wideband air/fuel ratio meters
sensors
gauges
data acquisition systems
and software. Based in Chicagoland
Innovate is committed to relentless product development
high manufacturing quality
and excellent technical support. Our goal is to provide professional-quality tools that are also affordable for the enthusiast.
