ICON's Top Of The Range coilover features lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone. Once configured the system functions without driver input.

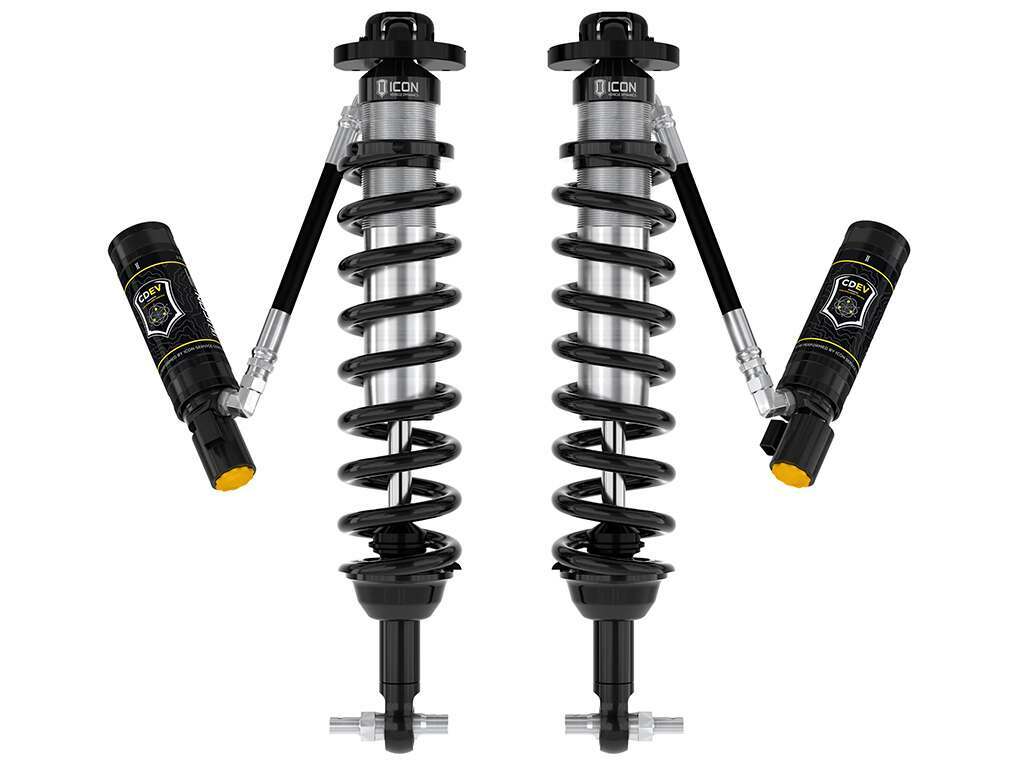

These ICON 2.5 Series coilover shocks are engineered to give the 2021+ Bronco outstanding performance off-road and a smooth ride on the street. Our desert-tested, race-proven shock technology provides superior damping, tuned specifically for the Bronco's suspension and vehicle characteristics. CNC machined shock ends and mounts, body and shaft lengths and coil springs have been custom configured to squeeze maximum travel and articulation out of the Bronco's suspension geometry while providing increased lift height to safely accommodate up to 37-inch* tires. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
When used in conjunction with ICON tubular or billet front Upper Control Arms and Rear Suspension Links and 35" tires*, these coilovers can yield up to 14" of rear suspension travel and up to 11.5" of front suspension travel.
- Factory set for approximately 3" suspension lift (for Sasquatch-equipped Broncos; approximately 4" lift for non-Sasquatch Broncos)
- Threaded body allows for further lift height adjustment at installer's discretion(adjustable from 2.5-4" of lift height)
- Increased wheel travel, up to 14" rear, 11.5" front
- 100% Bolt-on, no cutting or welding necessary for installation
- Vehicle specific design, engineered for maximum performance with Bronco suspension geometry.
- CNC machined 6061 aluminum components with a black anodize finish.
- High strength alloy CNC machined lower bar pin
- ICON engineered coil springs with long-travel, triple-rate rear coil spring
- FK rod end bearings for extended longevity and minimal deflection.
*Coilovers are factory-setup for optimal ride height and travel when paired with factory Sasquatch wheels and tires, or aftermarket 35-12.50-17 tires and 17x8.5, 0" offset wheels. 37" tires will also fit but we recommend using our Up-Travel Limiters (sold separately) when installing 37's.
