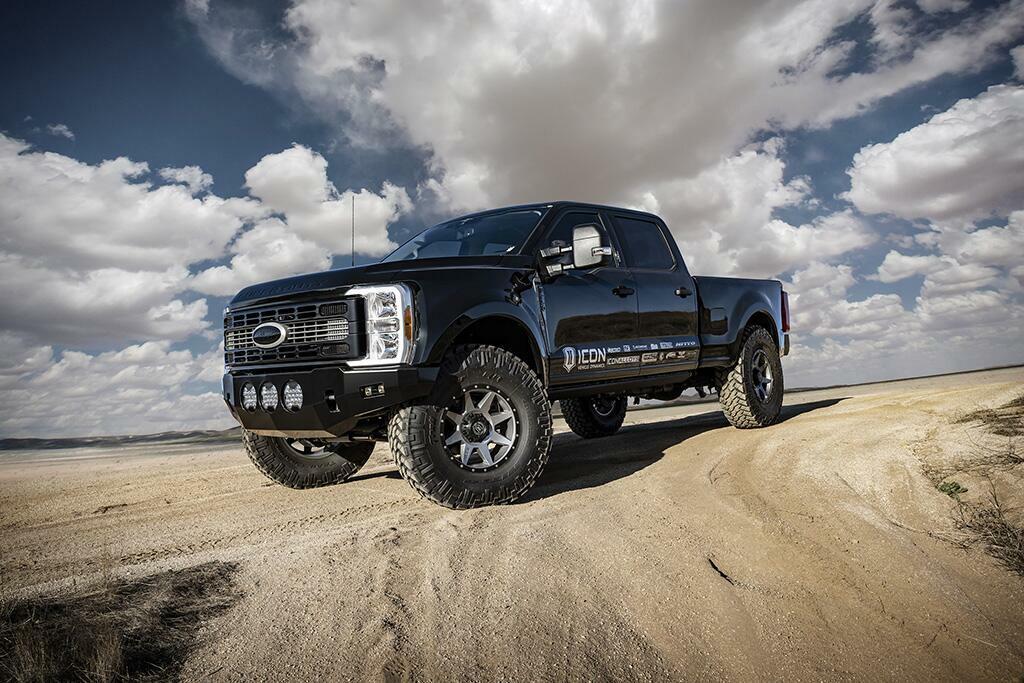

Icon 23-24 Ford F250/F350 4-5.5" Stage 6 Coilover Conversion System - K63176
This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023-2024 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 6 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.
ICON's 4-5.5” Lift Stage 6 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.
ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
Fits 2023-2024 F-250 / F-350 4WD applications
Dual steering stabilizer kit offers increased steering damping
Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
Stainless steel braided front brake lines
Heavy-duty fabricated rear lift blocks
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
