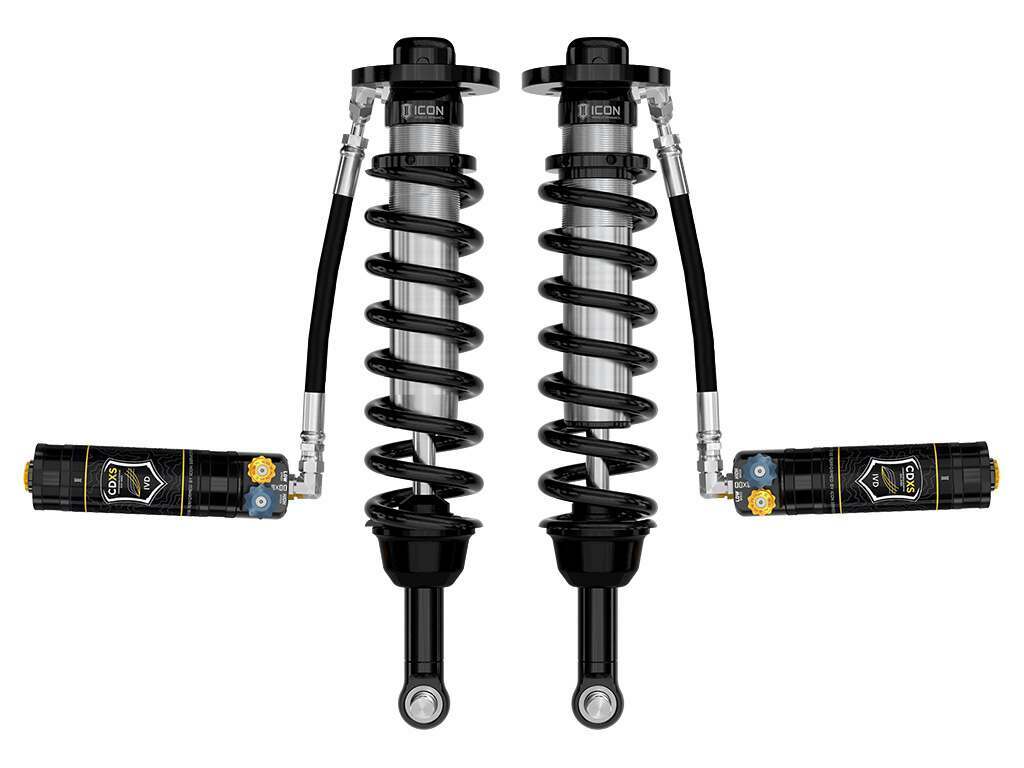

Icon 21-24 F150 4Wd 0-2.75" 2.5 Vs Rr Cdxs Coilover Kit - 91823X
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2024 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2024 F-150 4WD.
Increased wheel travel and ride quality over stock
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on - no cutting or welding necessary for installation
Adjustable for 0-2.75" of front lift over stock
Vehicle specific tuned for superior shock damping and control
External reservoirs to attain cooler operating temperatures during extended off-road use
ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened chrome plated shafts
High strength alloy CNC machined lower bar pins

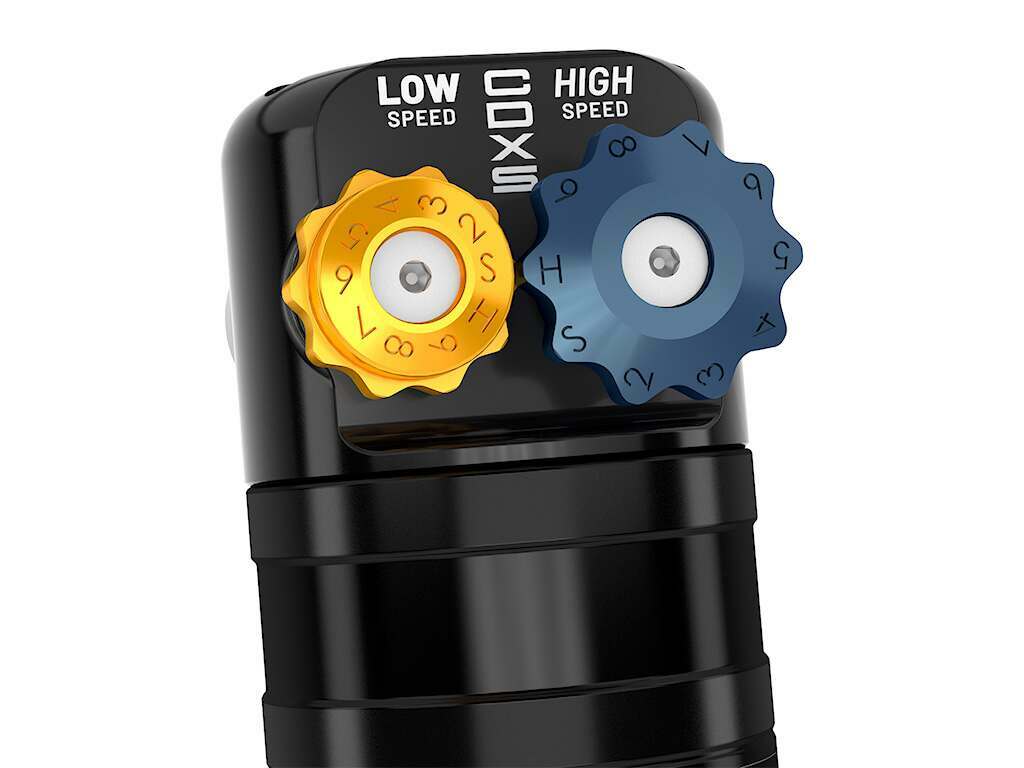

The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension
delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics
we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate
allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. High and low-speed settings are clearly marked on easy-to-grip knobs
making adjustments simple and intuitive. If the knobs are not visible in their mounted position
settings can be adjusted by counting clicks—turning the knob fully counterclockwise to the stop
then count up to the desired setting. Each knob offers 360° operating range with 10 detents and hard stops at both ends.
