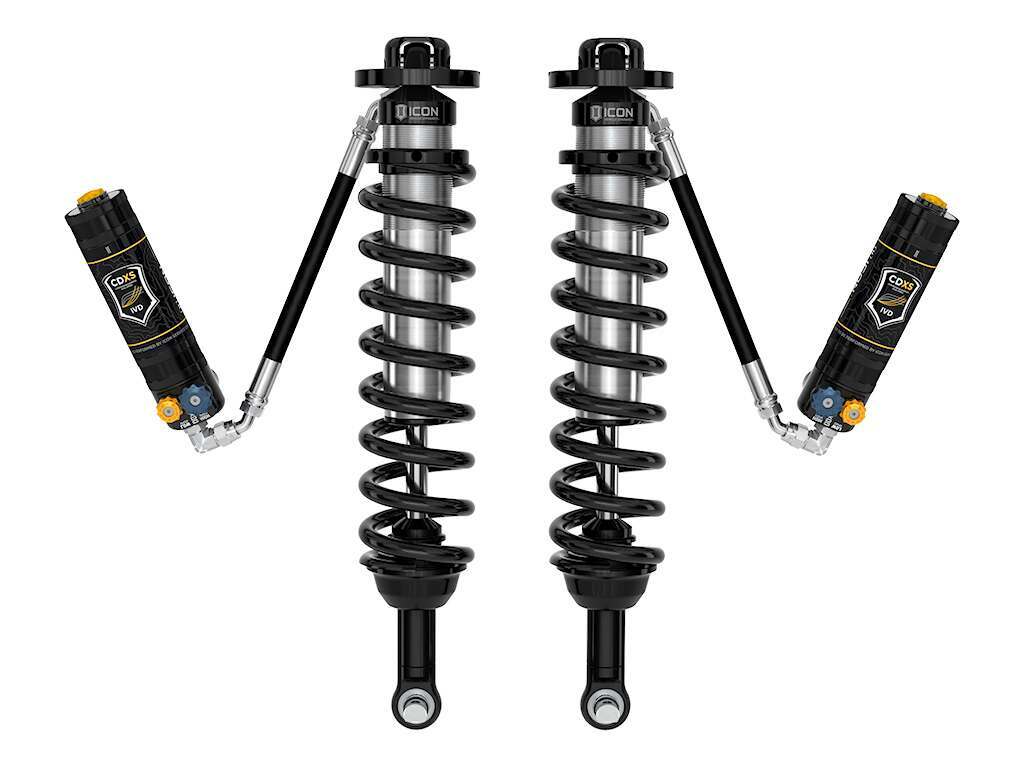

Icon 21-23 Bronco Front 2.5 Vs Rr Cdxs Coilover Kit - 48700X
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDXS are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos allowing the use of larger more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford Bronco.
Increased wheel travel (up to 11.5”) and ride quality over stock
High strength alloy CNC machined lower bar pin
Fully rebuildable and re-tunable
100% Bolt-on - no drilling cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection

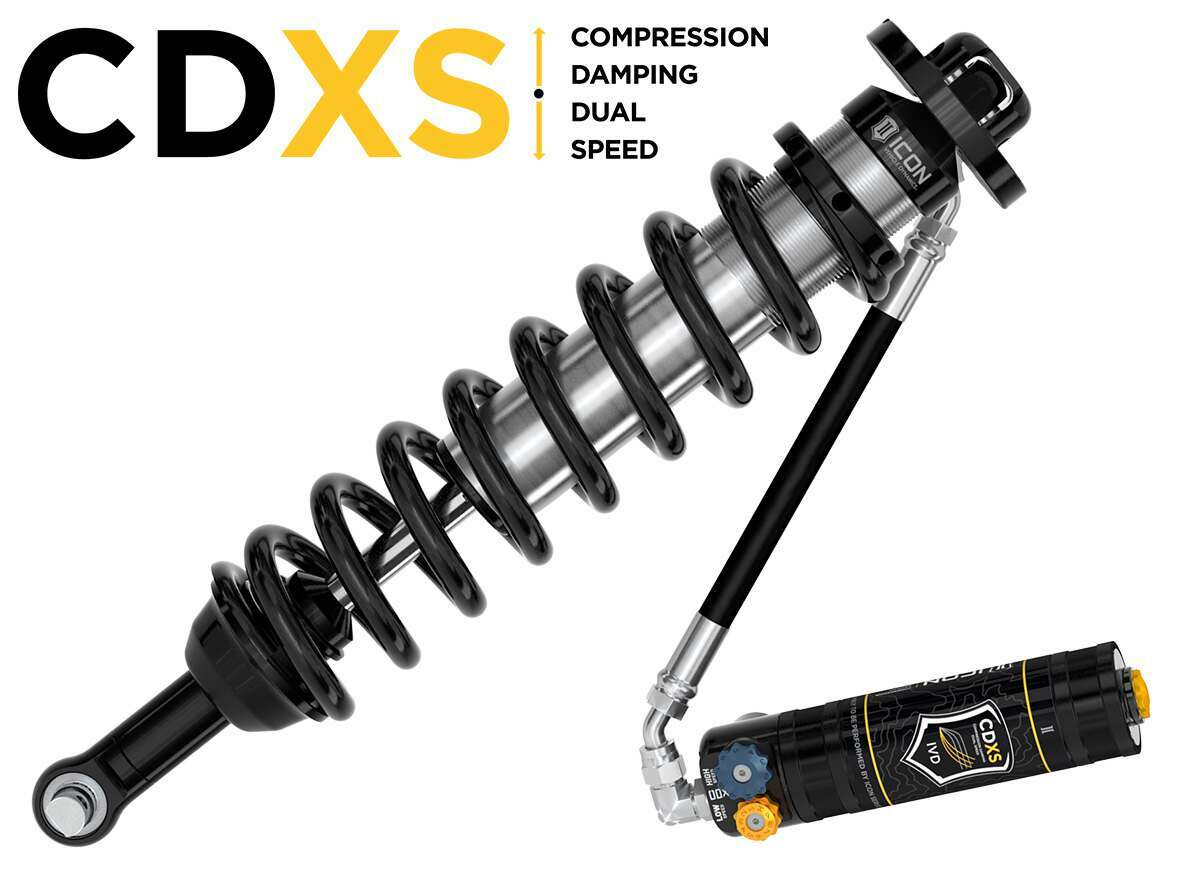

The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension
delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics
we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate
allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. High and low-speed settings are clearly marked on easy-to-grip knobs
making adjustments simple and intuitive. If the knobs are not visible in their mounted position
settings can be adjusted by counting clicks—turning the knob fully counterclockwise to the stop
then count up to the desired setting. Each knob offers 360° operating range with 10 detents and hard stops at both ends.
