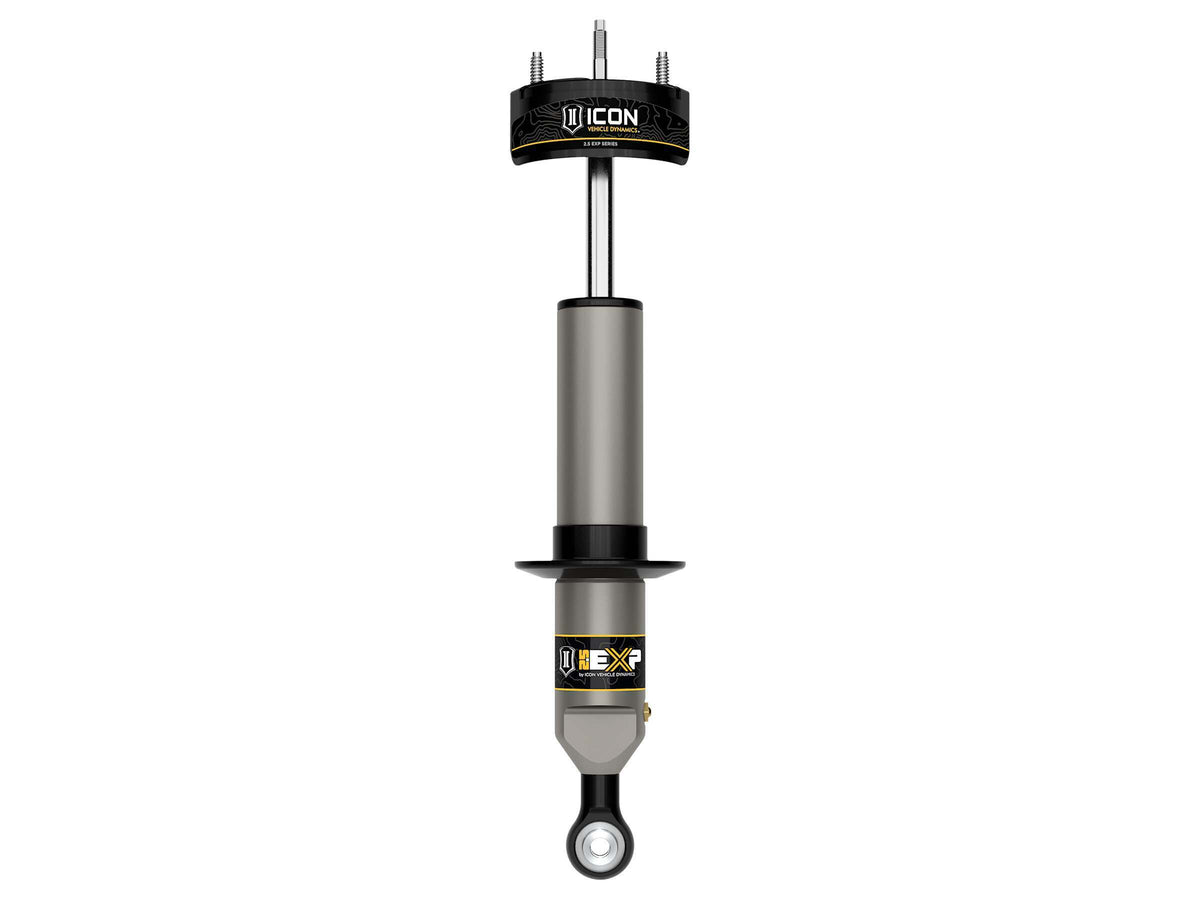

Icon 05-23 Tacoma Front 2.5 Exp Coilover - 58632
EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2005-2023 Tacoma EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.
The 6061-billet aluminum coil spring seat is CNC machined to fit the Tacoma's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 2” of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Vehicle specific design for 2005-2023 Toyota Tacoma
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
2.5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection
EXP Series shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the vehicle’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded coilovers, providing suspension lift, custom-tuned performance and maximum travel all in an economical package.
