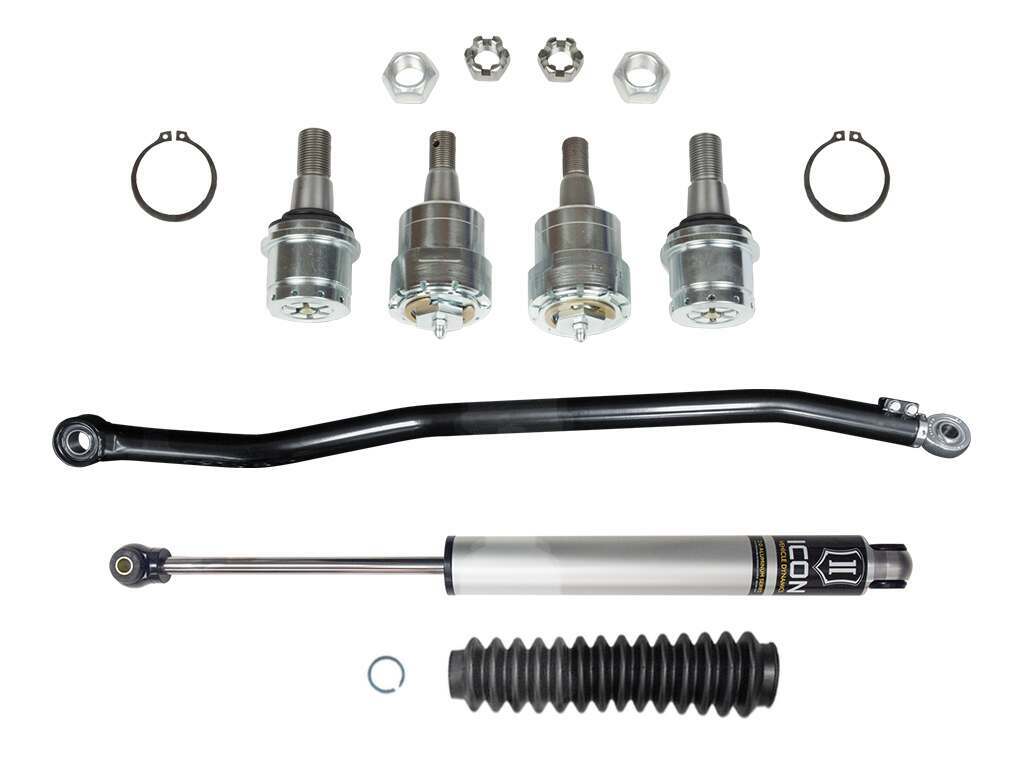

Icon 09-13 Dodge Ram 2500/3500 Stage 2 Ultimate Front End Kit - K2152
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel vehicle control and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel decreased stability erratic tracking down the road uneven tire wear and even death-wobble.
This Stage 2 Ultimate Front End Kit for the 2009-2013 Dodge Ram 2500 4WD and 2009-2012 Dodge Ram 3500 4WD features features ICON’s Adjustable Front Track Bar that help eliminate the notorious "Death Wobble" that big Ram pickups can experience when you lift them and/or put major miles on the clock. This Upgraded ICON Ram 2500 adjustable track bar is great for centering the front axle allowing it to track perfectly under the truck versus offset to the side. It is constructed of 1/4" wall 1 1/2" DOM tubing and is CNC bent for a precise OE-style fit. The weak OEM rubber bushing is eliminated and the use of our 1" captured uniball bearing on the driver side minimizes overall deflection while allowing just enough movement so steering wheel feedback is not present. We use a PTFE lined rod end on the passenger side which also reduces deflection and threads into our left/right adjuster that allows easy on-truck adjustability for the perfect front end alignment.
Stage 2 also includes a full set of front upper and lower Dynatrac HD BallJoints. Dynatrac HD Balljoints feature heat-treated high-strength billet bodies with chromoly stems along with a heat-treated precision-ground stainless-steel ball. Unique seals prevent contamination and the ball joints have greaseable fittings and PTFE-coated wear points to provide a long durable service life. These high-end ball joints Are also rebuildable what still installed in the front axle housing. The OEM ball joints often wear quickly with larger off-road tires many road miles or extreme off-roading. Replacing worn factory ball joints with Dynatrac HD BallJoints built specifically for the rigorous demands of these vehicles provides a long-term solution and help maximize the overall drivability of the Ram 2500/3500.
Rounding out Stage 2 is a stock-replacement steering stabilizer based on the ICON 2.0 Aluminum Series shock absorber line and has been specifically tuned to compensate for the additional weight of larger wheels and tires on the RAM 3/4-ton trucks. The ICON 2.0 stabilizer is a direct fit replacement meaning install is as simple as removing the original unit and bolting up the ICON part in its place. Ease of installation combined with Increased damping ability over stock a corrosion-resistant shock body and a fully rebuildable design make the ICON steering stabilizer the best choice for replacing or upgrading worn out 2009-2013 Ram 2500/3500 components.
Full set of genuine Dynatrac front upper and lower ball joints
On-vehicle adjustable for precise track alignment
Constructed with CNC machined and bent 1 1/2" x .250 wall 1026 seamless DOM tubing
Allows for full suspension articulation without binding
Nitrogen charged monotube steering stabilizer design with internal reservoir
Internal floating piston design eliminates dead zone typical in emulsion shocks
6063 Anodized aluminum body for superb heat dissipation excellent corrosion resistance
6061 aluminum rod end and internals insure strength and durability
Polyurethane bushings and zinc plated sleeves for OE factory type fitment
Improves steering feel and vehicle control
CNC machined high-strength components
Heat-treated high-strength billet bodies with chromoly stems
Heat-treated precision-ground stainless-steel ball
Sealed greaseable design and PTFE coated wear points ensure long service life
On-vehicle rebuildable design
Track bar uses upgraded 1" uniball on the driver side and PTFE lined rod end on the passenger side produces minimal to no deflection
Easy install using OEM mounts and included application-specific hardware
ICON Vehicle Dynamics specializes in performance suspension components
shocks
and accessories for today’s most popular trucks & SUVs. Since 2008
ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining
laser cutting
and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently
while maintaining a standard of quality unrivaled in the industry.
