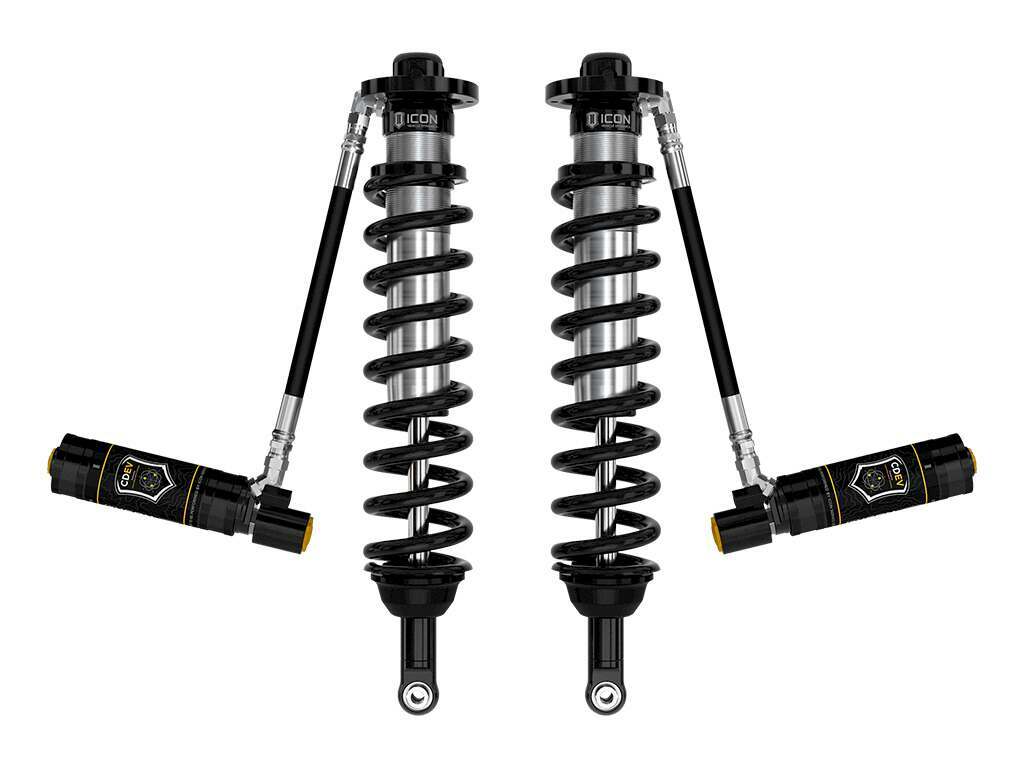

Icon 05-22 Tacoma 2.5 Vs Rr Cdev Coilover Kit W Long Travel - 59730E-CB
The ICON Vehicle Dynamics V.S. Series 2.5” CDCV remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2022 Toyota Tacoma or 2010-2022 4Runner equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2022 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is also included for those desiring an easy way to tune the ride electronically from inside the vehicle.

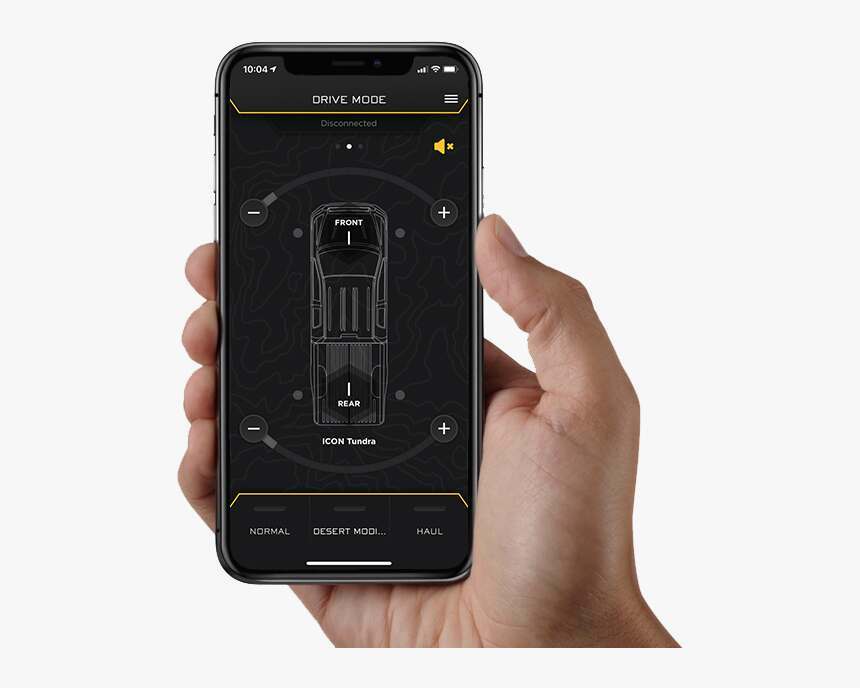

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
Custom length for pairing with many common long travel front suspension kits
Adjustable ride height for customization of vehicle stance
ICON engineered Eibach Springs
External reservoirs to attain cooler operating temperatures during extended off-road use
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
FK rod end bearings for extended longevity and minimal deflection
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
