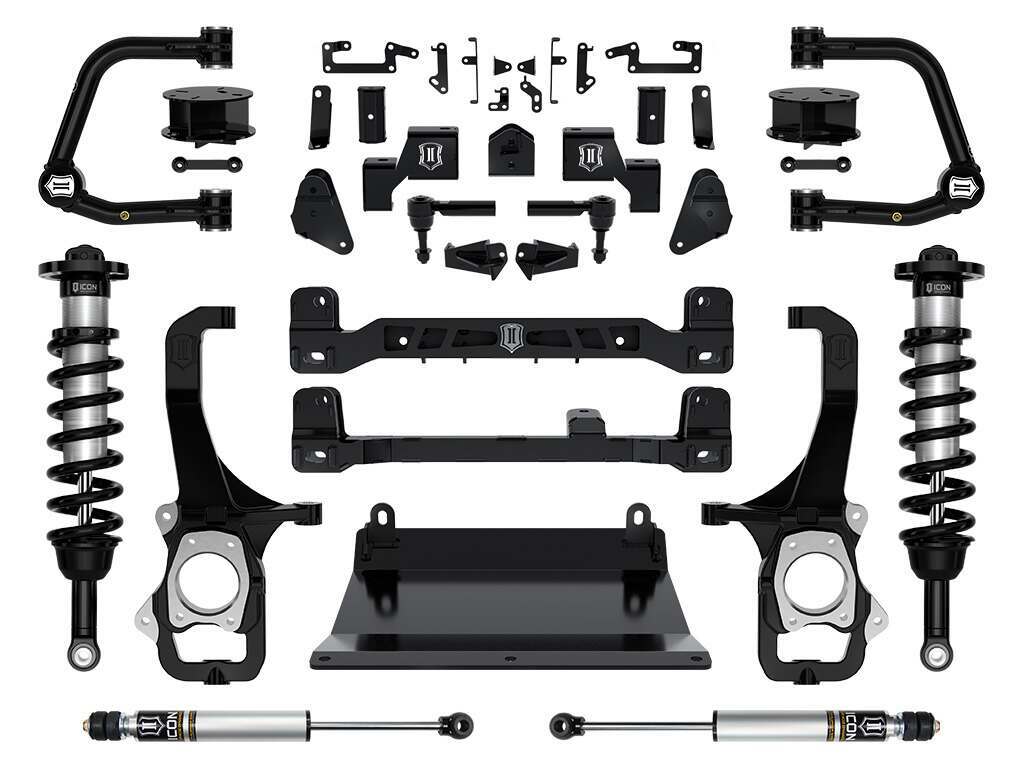

Icon 22-23 Toyota Tundra 6" Stage 2 Suspension System Tubular Uca - K53272T
2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
Included sway bar drop brackets reduce bind in OE sway bar links
Front and rear heavy-duty bump stop brackets
High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
Maintains factory track width
Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
Single piece high-strength ductile iron steering knuckles with built-in 4" drop
